Sandvik Coromant
5733732

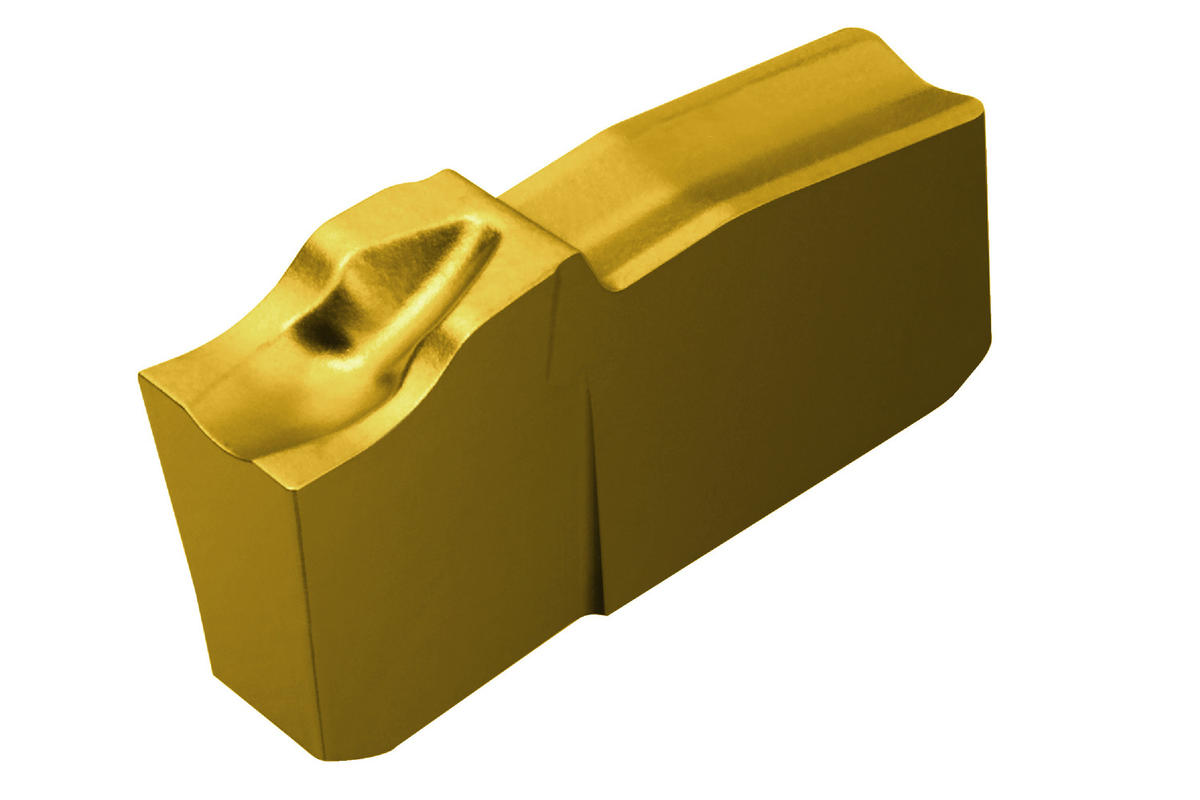

Sandvik Coromant 5733732
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Series | T-Max Q-Cut |
| Insert Size | 40 |
| Material | WC or Cermet |
| Short Description | T-Max® Q-Cut insert for parting |
| Unit Of Measure | Metric |
| Style | L151.2 |
| Grade | 235 |
| Cutting Width | 4 mm |
| Chip Breaker Type | 5F |
| Cutting Width (Decimal) | 0.157 |
| Cutting Width (Metric) | 4 |
| ANSI Code | L151.2-400 05-5F 235 |
| ISO Code | L151.2-400 05-5F 235 |
| Insert Seat Size Code | 40 |
| Hand of Insert | Left |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Major Left Hand Cutting Edge Angle | 5 degrees |
| Corner Radius Right (Decimal) | 0.004 |
| Corner Radius Right (Metric) | 0.1 |
| Corner Radius Lower Tolerance (Decimal) | -0.001969 |
| Corner Radius Lower Tolerance (Metric) | -0.05 |
| Corner Radius Upper Tolerance (Decimal) | 0.001969 |
| Corner Radius Upper Tolerance (Metric) | 0.05 |
| Cutting Width Upper Tolerance (Decimal) | 0.007874 |
| Cutting Width Upper Tolerance (Metric) | 0.2 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMS |
| Country of Origin | Japan |
| Base Item Number | 1060 |
| Cutting Width (Inch) | 0.157 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.008 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | L151.2 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | L151.2-40005-5F235 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | L151.2-400 05-5F 235 |
| Length Packed Product Imperial | 3.74 inch |
