Sandvik Coromant
5733836

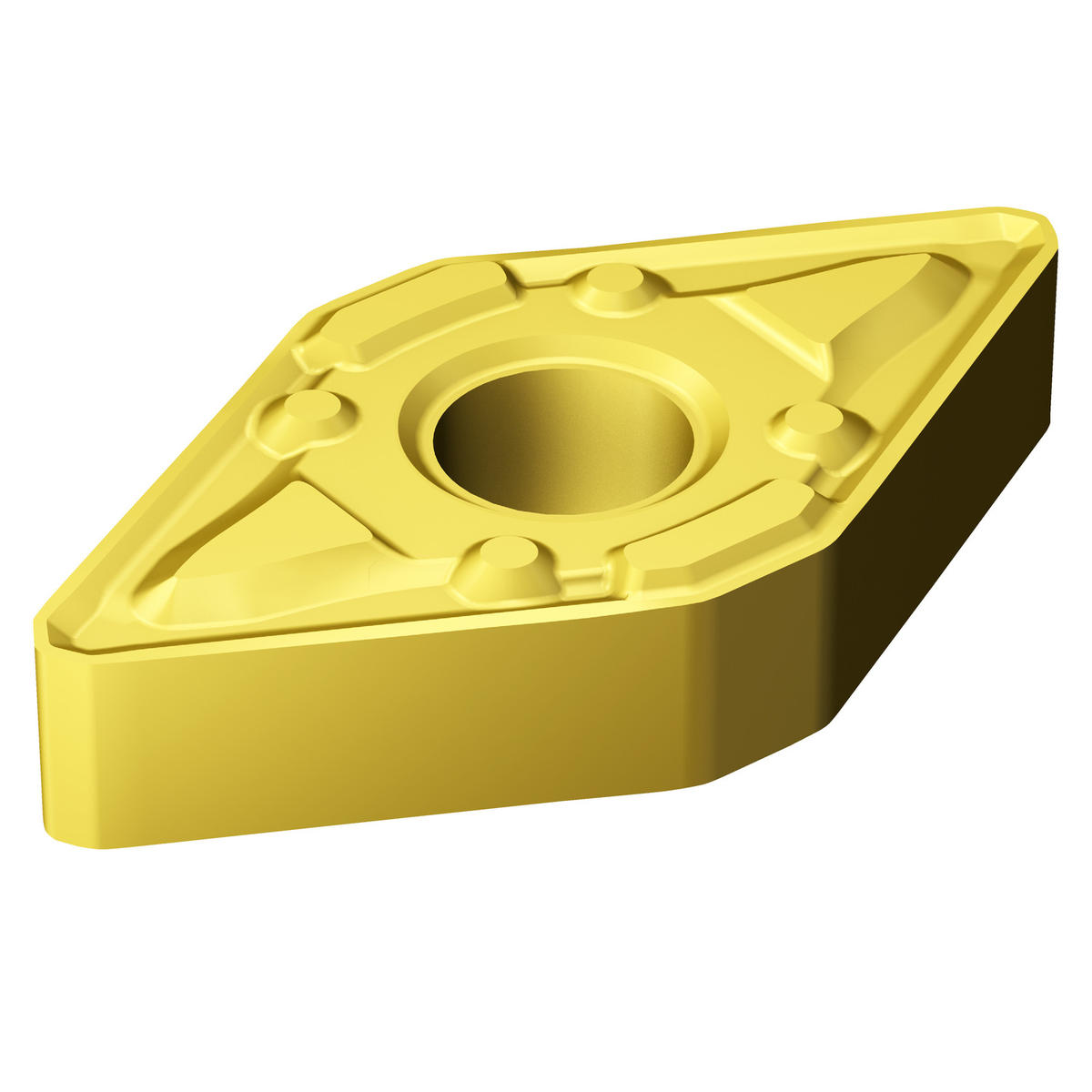

Sandvik Coromant 5733836
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 6.35 |
| Corner Radius (Metric) | 1.59 |
| Material | WC or Cermet |
| Size | 444 |
| Corner Radius (Inch) | 0.06 |
| Style | DNMX |
| Thickness (Inch) | 0.25 |
| Short Description | T-Max® P insert for turning |
| Grade | 2015 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.55 |
| Length (Metric) | 13.9 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | WMX |
| ANSI Code | DNMX 444-WMX 2015 |
| ISO Code | DNMX 15 06 16-WMX 2015 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.2 |
| Fixing Hole Diameter (Metric) | 5.16 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Major Cutting Edge Angle | 93 degrees |
| Wiper Edge Property | Yes |
| Application | Turning, General |
| ISO Material Classification | M |
| Base Item Number | 1049 |
| Length | 13.9 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.033 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | DNMX |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | DNMX150616-WMX2015 |
| Insert Size | 444 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | DNMX 15 06 16-WMX 2015 |
| Length Packed Product Imperial | 5.079 inch |
