Sandvik Coromant
5733956
Sandvik Coromant 5733956
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Overall Length (Inch) | 6.69 |
| Shank Width (Inch) | 0.98 |
| Shank Width (Metric) | 25 |
| Insert Style | R/LF151.23 |
| Base Item Number | 1060 |
| Max. Cutting Depth | 32 mm |
| Max. Cutting Depth (Decimal) | 1.26 |
| Max. Cutting Depth (Metric) | 32 |
| Max. Overhang (Decimal) | 2.24 |
| Max. Overhang (Metric) | 57 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.002 LB |

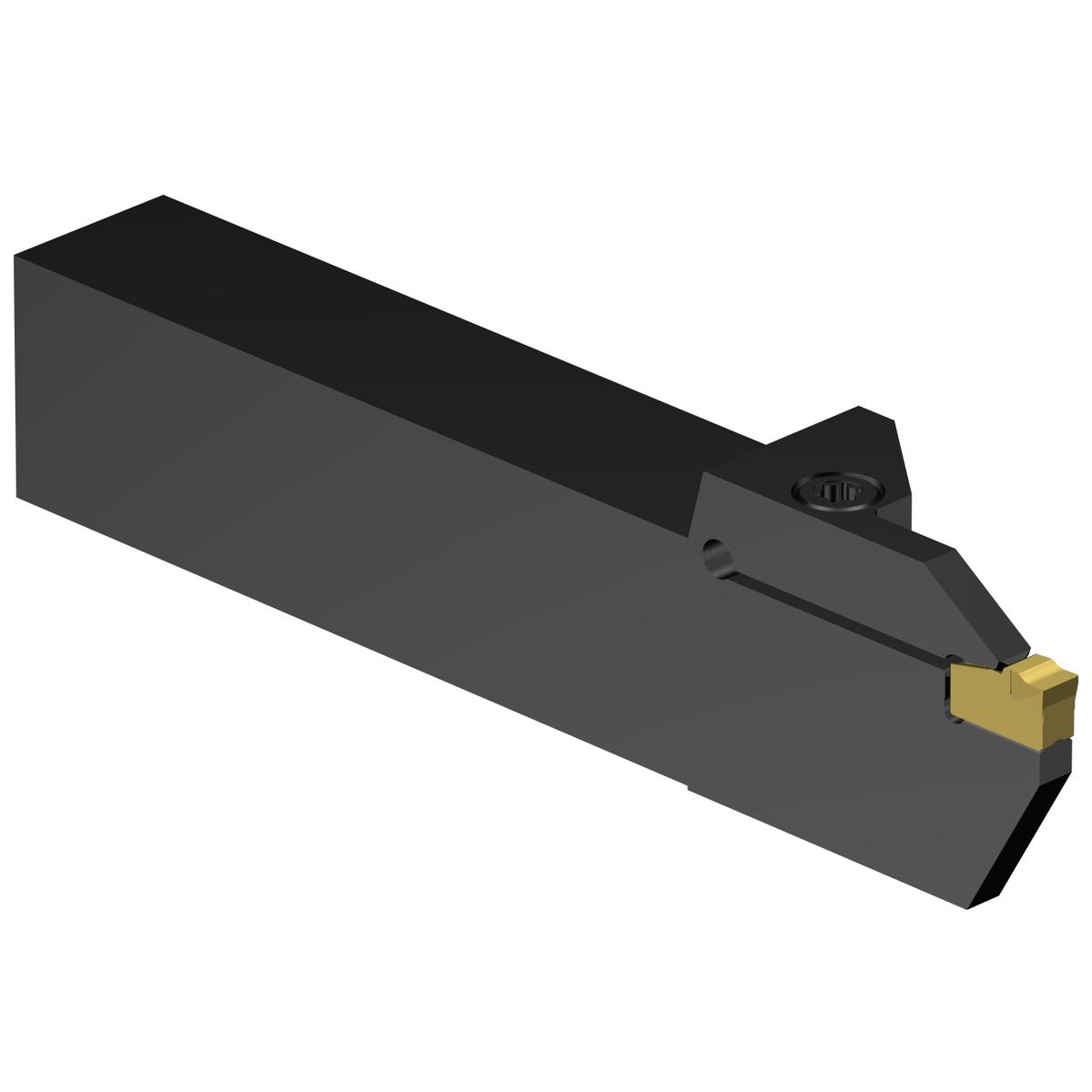

| Short Description | T-Max® Q-Cut shank tool for parting and grooving |
| Series | T-Max Q-Cut |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Insert Compatibility | N151.2-600-5E |
| Shank Height | 32 mm |
| Shank Width | 25 mm |
| Shank Height (Decimal) | 1.26 |
| Shank Height (Metric) | 32 |
| ANSI Code | LF151.23-3225-60M1 |
| Coolant Through | No |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26 |
| Overall Height (Decimal) | 1.26 |
| Overall Height (Metric) | 32 |
| Insert Seat Size Code | 60 |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 7.5 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
