Sandvik Coromant
5734146

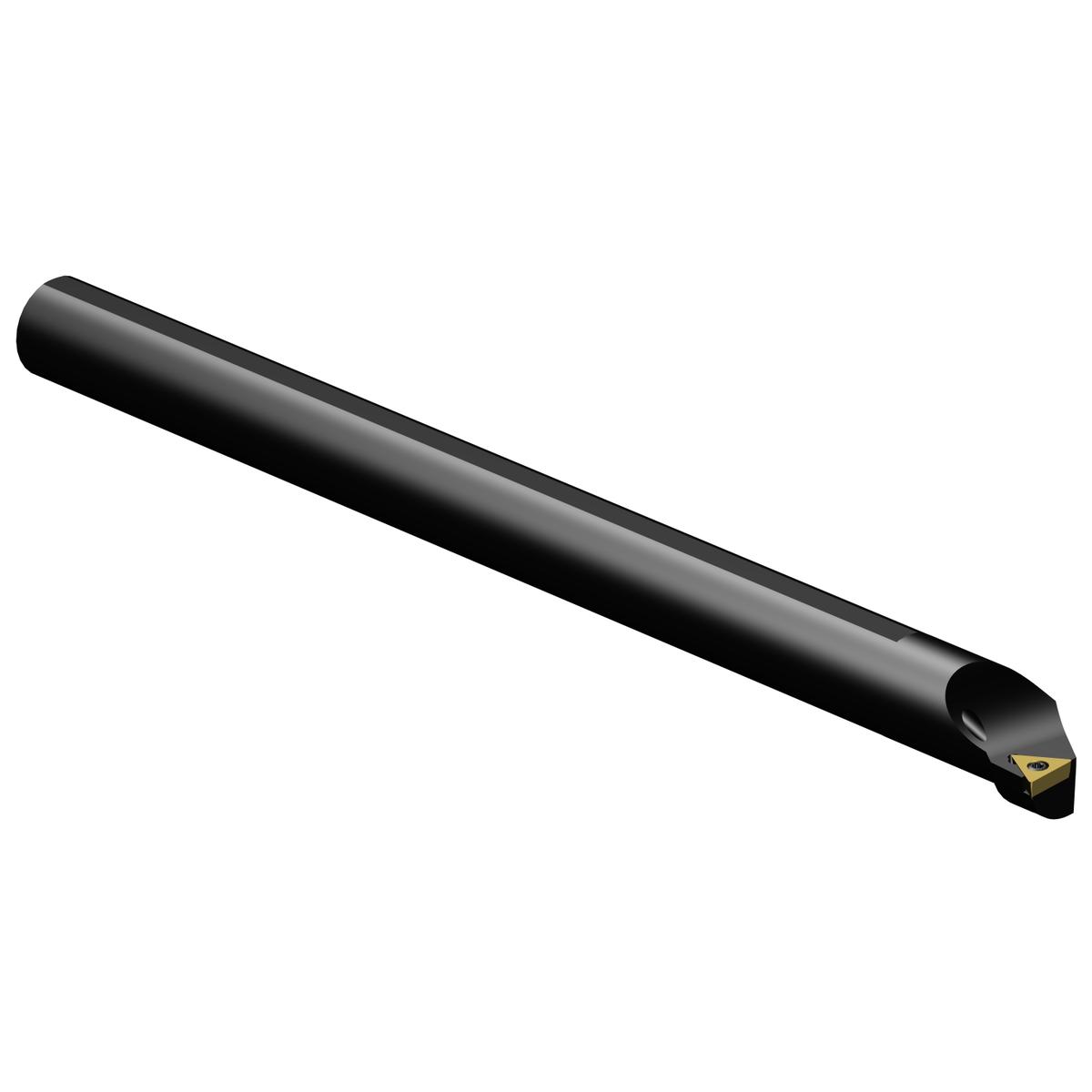

Sandvik Coromant 5734146
Specifications
| Minimum Bore Diameter (Metric) | 23.6 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.93 |
| Shank Diameter (Metric) | 19.05 |
| Direction Of Hand | Left |
| Overall Length (Metric) | 254 |
| Shank Diameter (Inch) | 0.75 |
| Overall Length (Inch) | 10 |
| Short Description | CoroTurn® 107 solid carbide boring bar for turning |
| Unit Of Measure | Imperial |
| Series | CoroTurn 107 |
| Shank Height (Metric) | 18.65 |
| Shank Height (Decimal) | 0.73 |
| Orthogonal Rake Angle | 0 degrees |
| Overall Length | 10 Inch |
| Shank Diameter | 0.75 Inch |
| Coolant Through | Yes |
| Tool Lead Angle | -1 degrees |
| ANSI Code | E12S-STFCL 2-B1 |
| Body Material | Carbide |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 91 degrees |
| Body Diameter (Decimal) | 0.75 |
| Body Diameter (Metric) | 19.05 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.5 |
| Overall Width (Metric) | 12.7 |
| Inclination Angle | -4 degrees |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.9 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | United States |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 4.5 |
| Max. Overhang (Metric) | 114.3 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 0.93 Inch |
| Min. Overhang (Decimal) | 1.62 |
| Min. Overhang (Metric) | 41.25 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.085 LB |
| Height Packed Product Metric | 30 mm |
| Height Packed Product Imperial | 1.181 inch |
| ISO Code (packed) | E12S-STFCL2-B1 |
| Length Packed Product Metric | 254 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | E12S-STFCL 2-B1 |
| Length Packed Product Imperial | 10 inch |
