Sandvik Coromant
5734605

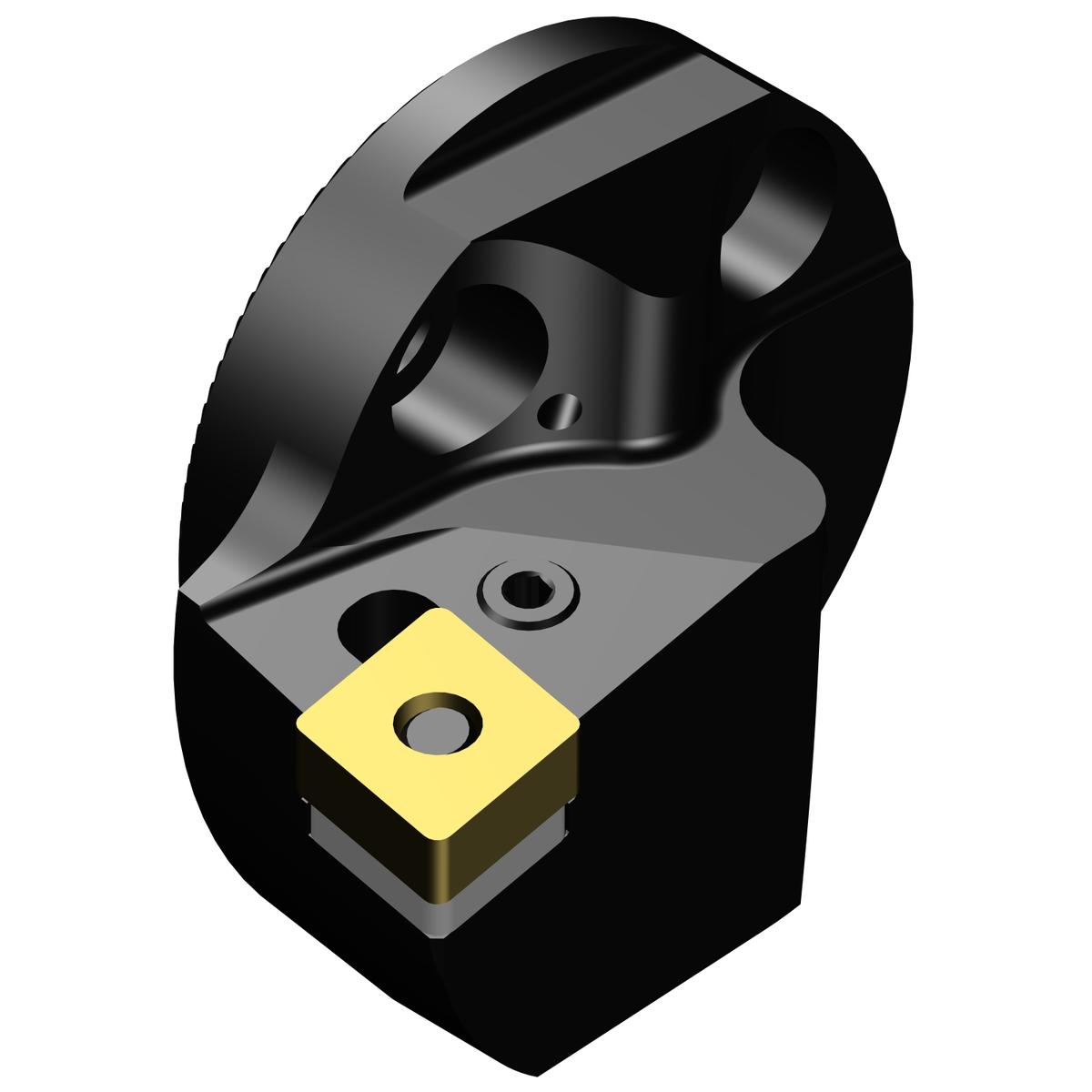

Sandvik Coromant 5734605
Specifications
| Center to Cutting Edge (Inch) | 1.69 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 3.15 |
| Size | 60 |
| Series | T-Max P |
| Bore Diameter (Metric) | 80 |
| Center to Cutting Edge (Metric) | 43 |
| Short Description | T-Max® P head for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 43 mm |
| Insert Style | CNMG 160612 |
| ANSI Code | L571.31C-604043-16 |
| Connection Diameter (Decimal) | 2.36 |
| Connection Diameter (Metric) | 60 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 145.038 lbf/in2 |
| Torque | 5 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -10 degrees |
| Orthogonal Rake Angle | -6 degrees |
| Tool Cutting Edge Angle | 95 degrees |
| Tool Lead Angle | -5 degrees |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Norway |
| Base Item Number | 1049 |
| Max. Hole Depth | 40 mm |
| Max. Hole Depth (Decimal) | 1.58 |
| Max. Hole Depth (Metric) | 40 |
| Max. Overhang (Decimal) | 1.58 |
| Max. Overhang (Metric) | 40 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.314 LB |
| Height Packed Product Metric | 92 mm |
| Height Packed Product Imperial | 3.622 inch |
| ISO Code (packed) | L571.31C-604043-16 |
| Length Packed Product Metric | 70 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | L571.31C-604043-16 |
| Length Packed Product Imperial | 2.756 inch |
