Sandvik Coromant
5734878

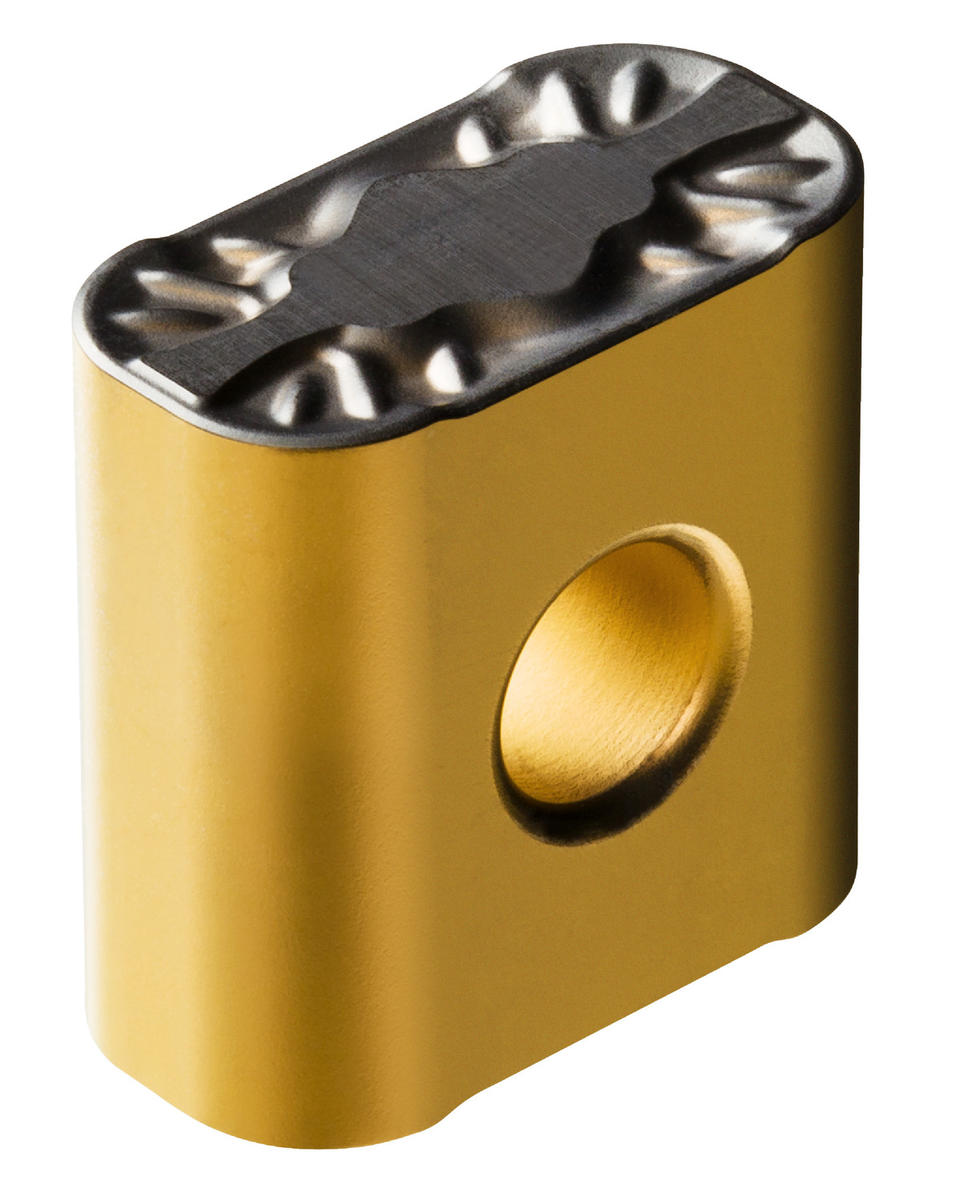

Sandvik Coromant 5734878
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 19.05 |
| Corner Radius (Metric) | 4 |
| Material | WC or Cermet |
| Size | 3019 |
| Corner Radius (Inch) | 0.16 |
| Style | LNMX |
| Thickness (Inch) | 0.75 |
| Short Description | T-Max® P insert for turning |
| Grade | 4215 |
| Unit Of Measure | Metric |
| Clearance Angle Major | 0 degrees |
| Width (Decimal) | 0.47 |
| Width (Metric) | 12 |
| Length (Decimal) | 1.02 |
| Length (Metric) | 26 |
| Shape | Rectangle |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | PM |
| ANSI Code | LNMX 30 19 40-PM 4215 |
| ISO Code | LNMX 30 19 40-PM 4215 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.25 |
| Fixing Hole Diameter (Metric) | 6.35 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| ISO Material Classification | P |
| Base Item Number | 1049 |
| Length | 26 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.19 LB |
| Width | 12 mm |
| Height Packed Product Metric | 46 mm |
| Insert Style | LNMX |
| Height Packed Product Imperial | 1.811 inch |
| ISO Code (packed) | LNMX301940-PM4215 |
| Insert Size | 3019 |
| Length Packed Product Metric | 77 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | LNMX 30 19 40-PM 4215 |
| Length Packed Product Imperial | 3.031 inch |
