Sandvik Coromant
5735331

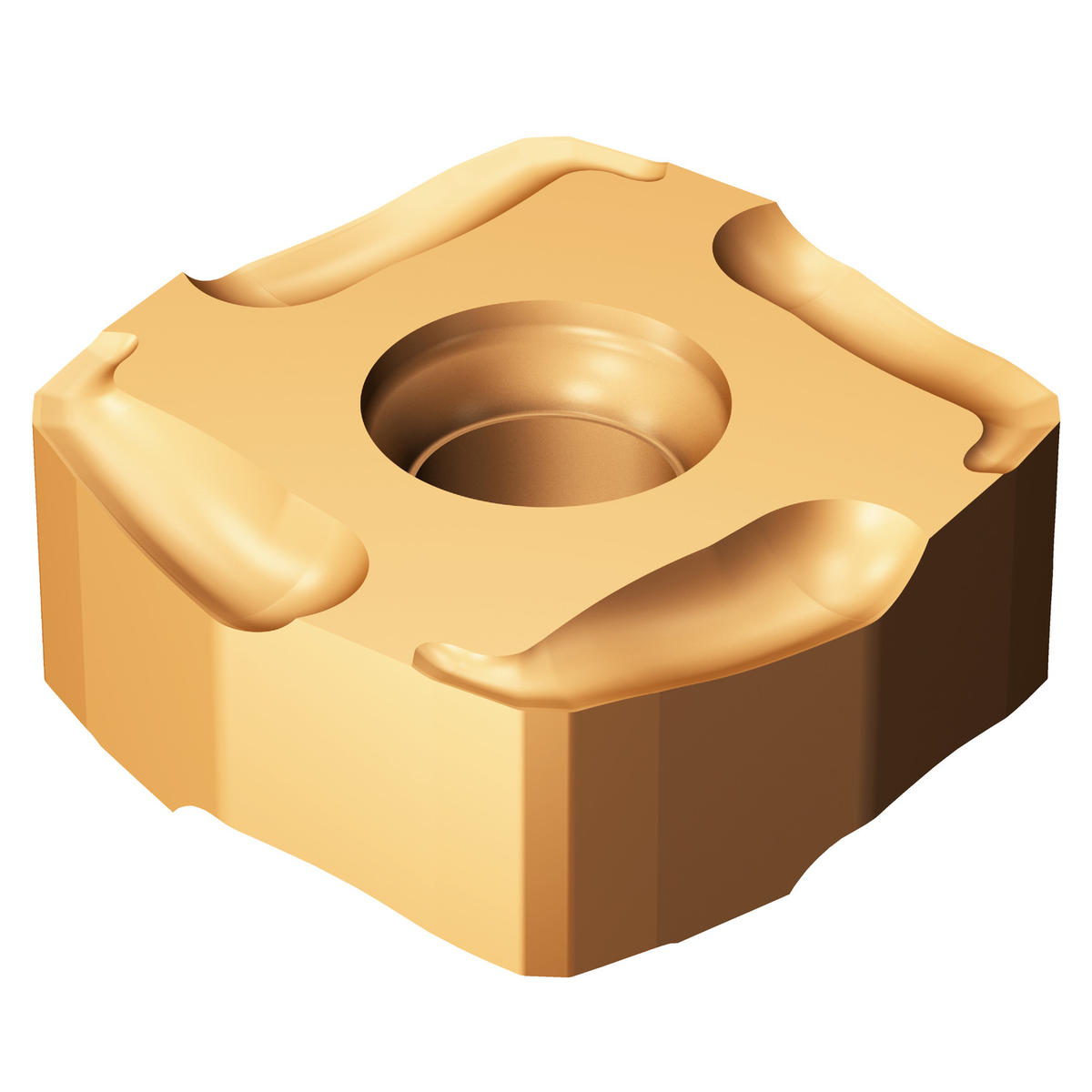

Sandvik Coromant 5735331
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiAlN |
| Thickness (Metric) | 5.66 |
| Thickness (Inch) | 0.22 |
| Short Description | CoroMill® 365 insert for milling |
| Style | L365 |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 365 |
| Size | 1505 |
| Grade | 1020 |
| Inscribed Circle Diameter | 15 mm |
| Thickness | 5.66 mm |
| Chip Breaker Type | KL |
| Length (Decimal) | 0.25 |
| Inscribed Circle Diameter (Decimal) | 0.59 |
| Inscribed Circle Diameter (Metric) | 15 |
| ANSI Code | L365-1505ZNE-KL 1020 |
| ISO Code | L365-1505ZNE-KL 1020 |
| Hand of Insert | Left |
| Fixing Hole Diameter (Decimal) | 0.18 |
| Fixing Hole Diameter (Metric) | 4.6 |
| Coating Process Type | PVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.06 |
| Wiper Edge Length (Metric) | 1.5 |
| Major Cutting Edge Angle | 65 degrees |
| Corner Chamfer | 30 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Corner Chamfer Width (Decimal) | 0.026 |
| Corner Chamfer Width (Metric) | 0.66 |
| Application | Milling, General |
| ISO Material Classification | K |
| Base Item Number | 1014 |
| Insert Size | 1505 |
| Length | 6.4 mm |
| Max. Depth Of Cut (Decimal) | 0.24 |
| Max. Depth Of Cut (Metric) | 6 |
| Maximum Depth Of Cut (Inch) | 0.24 |
| Maximum Depth Of Cut (Metric) | 6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.031 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | L365 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | L365-1505ZNE-KL1020 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | L365-1505ZNE-KL 1020 |
| Length Packed Product Imperial | 5.079 inch |
