Sandvik Coromant
5735644

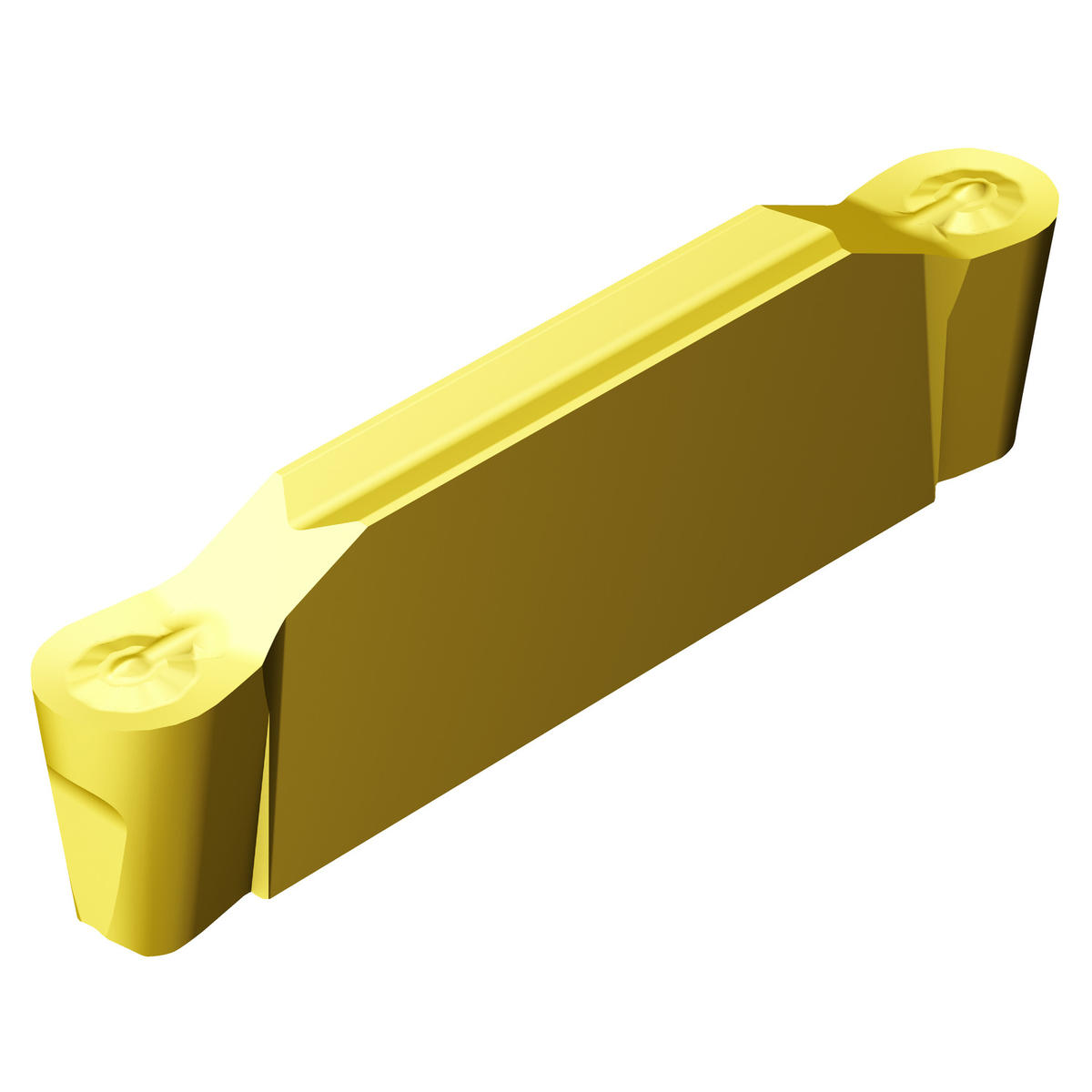

Sandvik Coromant 5735644
Specifications
| Series | CoroCut 1-2 |
|---|---|
| Corner Radius (Metric) | 1 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.04 |
| Insert Size | E2 |
| Coating/Finish | TiAlN+TiN |
| Short Description | CoroCutĀ® 1-2 insert for profiling |
| Style | N123 |
| Grade | 1005 |
| Unit Of Measure | Metric |
| Cutting Width | 2 mm |
| Chip Breaker Type | RO |
| Cutting Width (Decimal) | 0.08 |
| Cutting Width (Metric) | 2 |
| ANSI Code | N123E2-0200-RO 1005 |
| ISO Code | N123E2-0200-RO 1005 |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Insert Seat Size Code | E |
| Corner Radius Lower Tolerance (Decimal) | -0.000394 |
| Corner Radius Lower Tolerance (Metric) | -0.01 |
| Corner Radius Upper Tolerance (Decimal) | 0.000394 |
| Corner Radius Upper Tolerance (Metric) | 0.01 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Insert Gauge Length (Decimal) | 0.79 |
| Insert Gauge Length (Metric) | 20.05 |
| Cutting Width Lower Tolerance (Decimal) | -0.000787 |
| Cutting Width Lower Tolerance (Metric) | -0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.000787 |
| Cutting Width Upper Tolerance (Metric) | 0.02 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | MNS |
| Country of Origin | United States |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.08 |
| Max. Cutting Depth (Decimal) | 0.76 |
| Max. Cutting Depth (Metric) | 19.2 |
| Max. Depth Of Cut (Decimal) | 0.03 |
| Max. Depth Of Cut (Metric) | 0.8 |
| Maximum Depth Of Cut (Inch) | 0.03 |
| Maximum Depth Of Cut (Metric) | 0.8 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.005 LB |
