Sandvik Coromant
5735706
Sandvik Coromant 5735706
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Base Item Number | 1071 |
| Cutting Width (Inch) | 0.06 |
| Max. Cutting Depth | 6.5 mm |
| Max. Cutting Depth (Decimal) | 0.26 |
| Max. Overhang (Decimal) | 0.21 |
| Max. Overhang (Metric) | 5.2 |
| Min. Bore Diameter (Decimal) | 0.67 |
| Min. Bore Diameter (Metric) | 17 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.008 LB |
| Unit Of Measure | Metric |

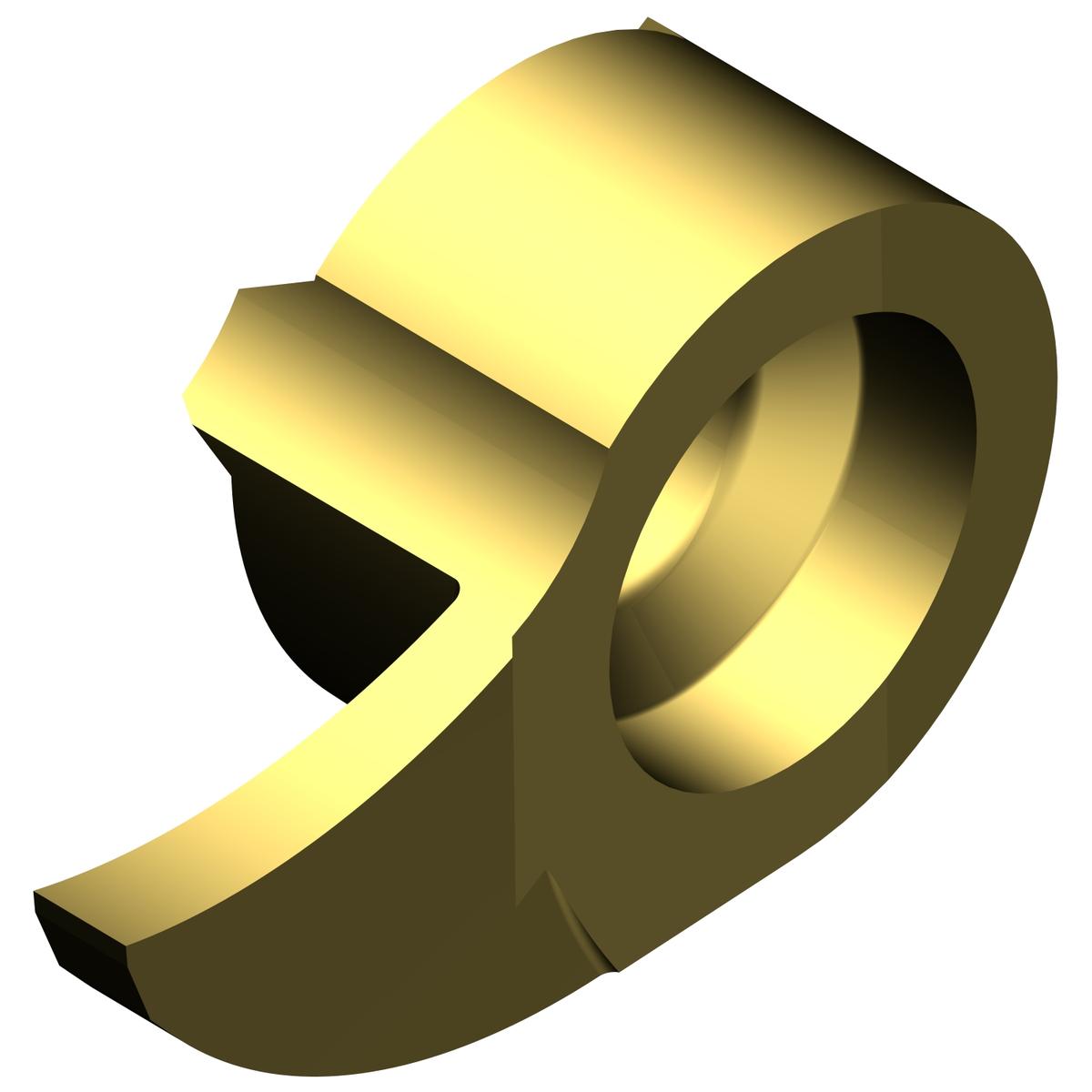

| Short Description | CoroCut® MB solid carbide head for grooving |
| Series | CoroCut MB |
| Grade | 1025 |
| Cutting Width | 1.5 mm |
| Cutting Width (Decimal) | 0.06 |
| ANSI Code | MB-09G150-00-17L 1025 |
| Coating Process Type | PVD |
| Substrate Type | Carbide |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Application | Turning, Parting/Grooving |
| Country of Origin | France |
| Coolant Through | No |
| Direction Of Hand | Left |
| Connection Diameter (Decimal) | 0.35 |
| Connection Diameter (Metric) | 9 |
| Overall Length (Decimal) | 0.21 |
| Overall Length (Metric) | 5.2 |
| ISO Material Classification Level All | PMKNS |
| Chamfer Width Left Hand (Decimal) | 0.002 |
| Chamfer Width Left Hand (Metric) | 0.04 |
| Chamfer Width Right Hand (Decimal) | 0.002 |
| Chamfer Width Right Hand (Metric) | 0.04 |
| Overall Width (Decimal) | 0.45 |
| Overall Width (Metric) | 11.5 |
| Coolant Entry Style Code | 0: Without Coolant |
