Sandvik Coromant
5735820

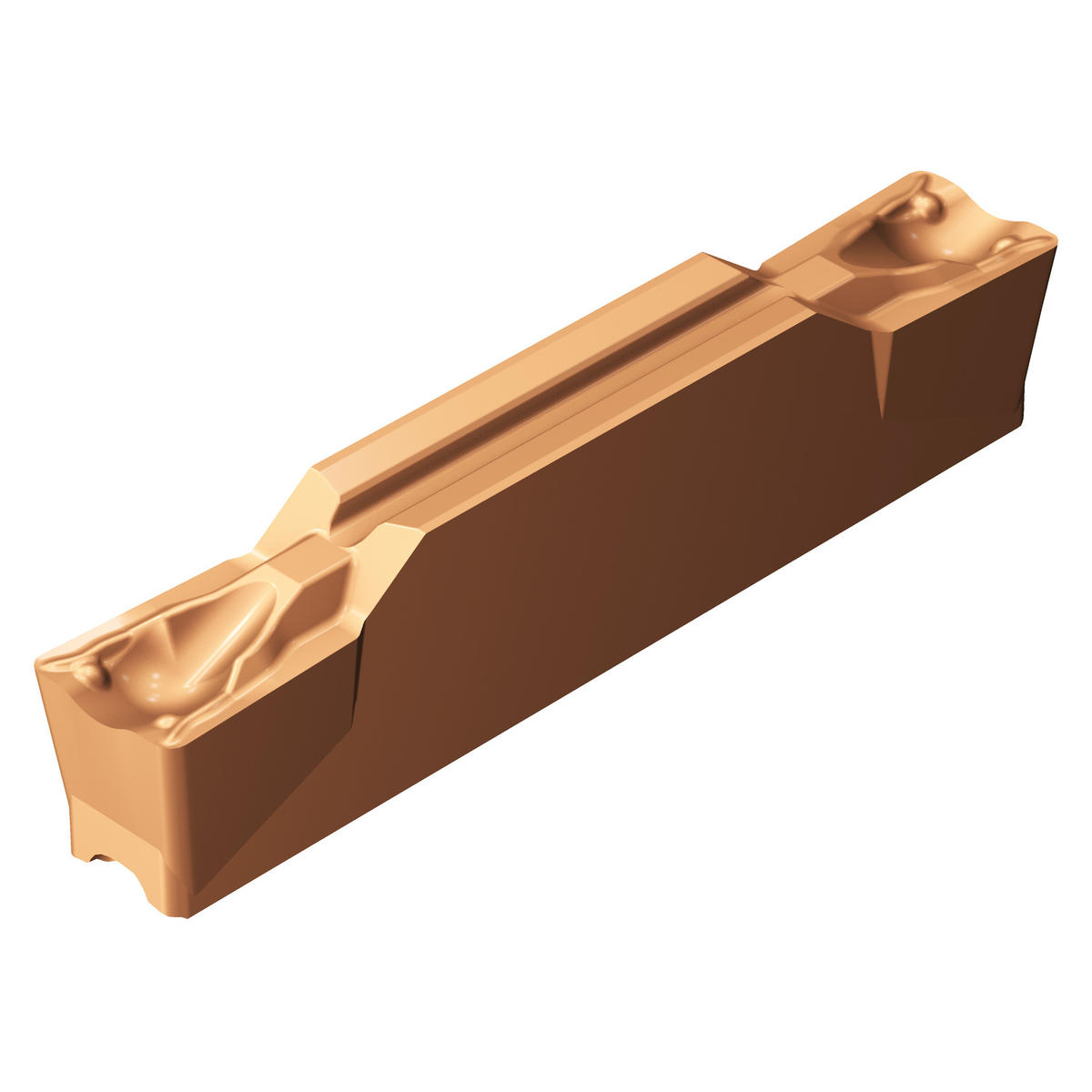

Sandvik Coromant 5735820
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Material | WC or Cermet |
| Size | G2 |
| Style | N123 |
| Short Description | CoroCutĀ® 1-2 insert for turning |
| Grade | 1125 |
| Unit Of Measure | Metric |
| Clearance Angle Major | 7 degrees |
| Max. Depth Of Cut (Decimal) | 0.07 |
| Max. Depth Of Cut (Metric) | 1.8 |
| Cutting Width (Decimal) | 0.12 |
| Cutting Width (Metric) | 3 |
| Country of Origin | United States |
| Series | CoroCut 1-2 |
| Cutting Width | 3 mm |
| Chip Breaker Type | TF |
| ANSI Code | N123G2-0300-0003-TF 1125 |
| ISO Code | N123G2-0300-0003-TF 1125 |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Insert Seat Size Code | G |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.3 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.3 |
| Insert Gauge Length (Decimal) | 0.78 |
| Insert Gauge Length (Metric) | 19.74 |
| Corner Radius Lower Tolerance (Metric) | -0.1 |
| Corner Radius Upper Tolerance (Metric) | 0.1 |
| Cutting Width Upper Tolerance (Metric) | 0.1 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMKNS |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.12 |
| Max. Cutting Depth (Decimal) | 0.73 |
| Max. Cutting Depth (Metric) | 18.5 |
| Maximum Depth Of Cut (Inch) | 0.07 |
| Maximum Depth Of Cut (Metric) | 1.8 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.008 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | N123 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | N123G2-0300-0003-TF1125 |
| Insert Size | G2 |
| Length Packed Product Metric | 130 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | N123G2-0300-0003-TF 1125 |
| Length Packed Product Imperial | 5.118 inch |
