Sandvik Coromant
5735913
Sandvik Coromant 5735913
Specifications
| Size | G2 |
|---|---|
| Chip Breaker Type | GF |
| Coating/Finish | TiAlN |
| Material | WC or Cermet |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.13 |
| Max. Depth Of Cut (Decimal) | 0.76 |
| Max. Depth Of Cut (Metric) | 19.2 |
| Maximum Depth Of Cut (Inch) | 0.76 |
| Maximum Depth Of Cut (Metric) | 19.2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.008 LB |
| Unit Of Measure | Metric |

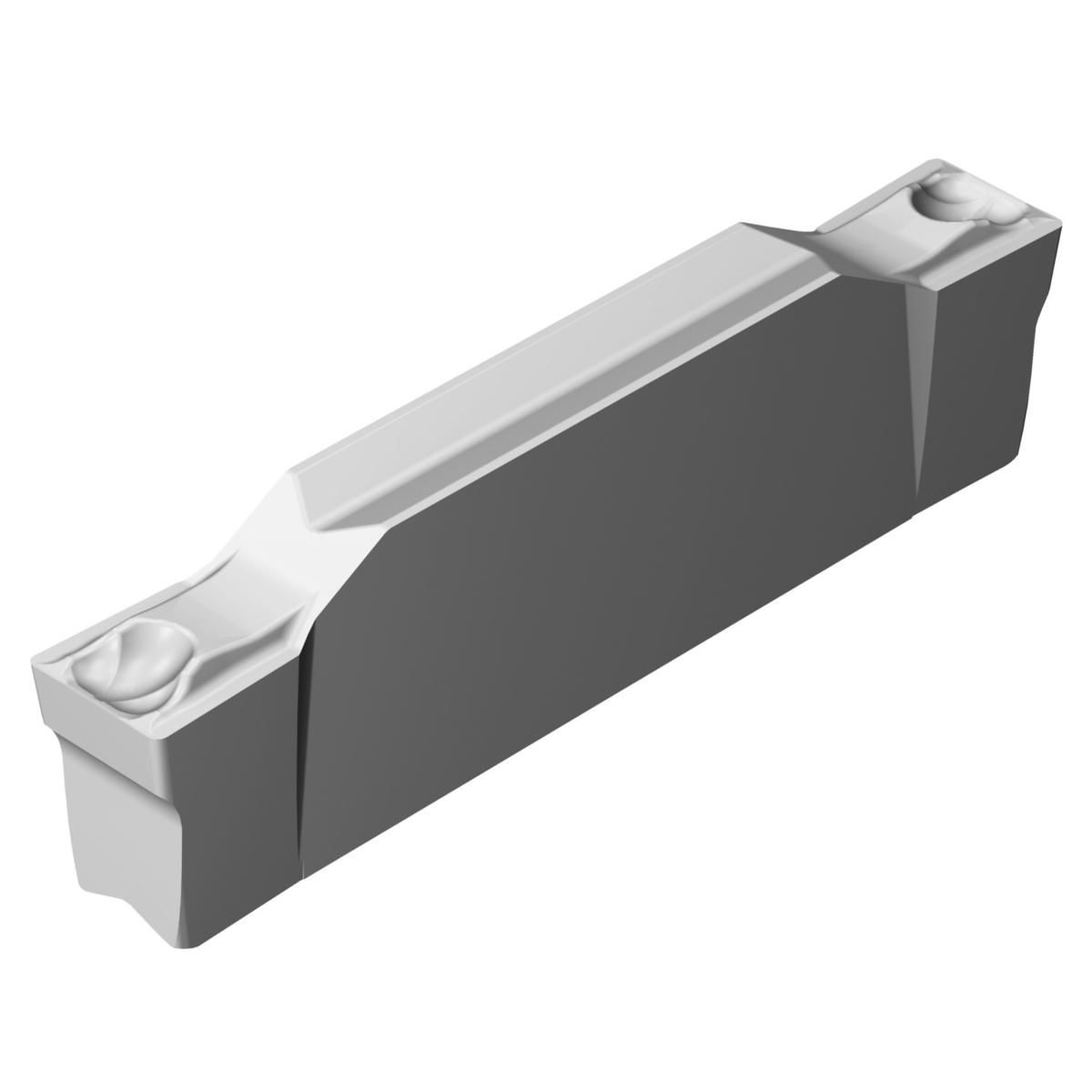

| Short Description | CoroCutĀ® 1-2 insert for grooving |
| Series | CoroCut 1-2 |
| Style | N123 |
| Grade | 1105 |
| Cutting Width | 3.18 mm |
| Cutting Width (Decimal) | 0.13 |
| Cutting Width (Metric) | 3.18 |
| ANSI Code | N123G2-0318-0002-GF 1105 |
| ISO Code | N123G2-0318-0002-GF 1105 |
| Insert Seat Size Code | G |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Insert Gauge Length (Decimal) | 0.79 |
| Insert Gauge Length (Metric) | 20.05 |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.2 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.2 |
| Corner Radius Lower Tolerance (Decimal) | -0.001969 |
| Corner Radius Lower Tolerance (Metric) | -0.05 |
| Corner Radius Upper Tolerance (Decimal) | 0.001969 |
| Corner Radius Upper Tolerance (Metric) | 0.05 |
| Cutting Width Lower Tolerance (Decimal) | -0.000787 |
| Cutting Width Lower Tolerance (Metric) | -0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.000787 |
| Cutting Width Upper Tolerance (Metric) | 0.02 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | MNS |
| Country of Origin | Sweden |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | N123 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | N123G2-0318-0002-GF1105 |
| Insert Size | G2 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | N123G2-0318-0002-GF 1105 |
| Length Packed Product Imperial | 5.079 inch |
