Sandvik Coromant
5735976

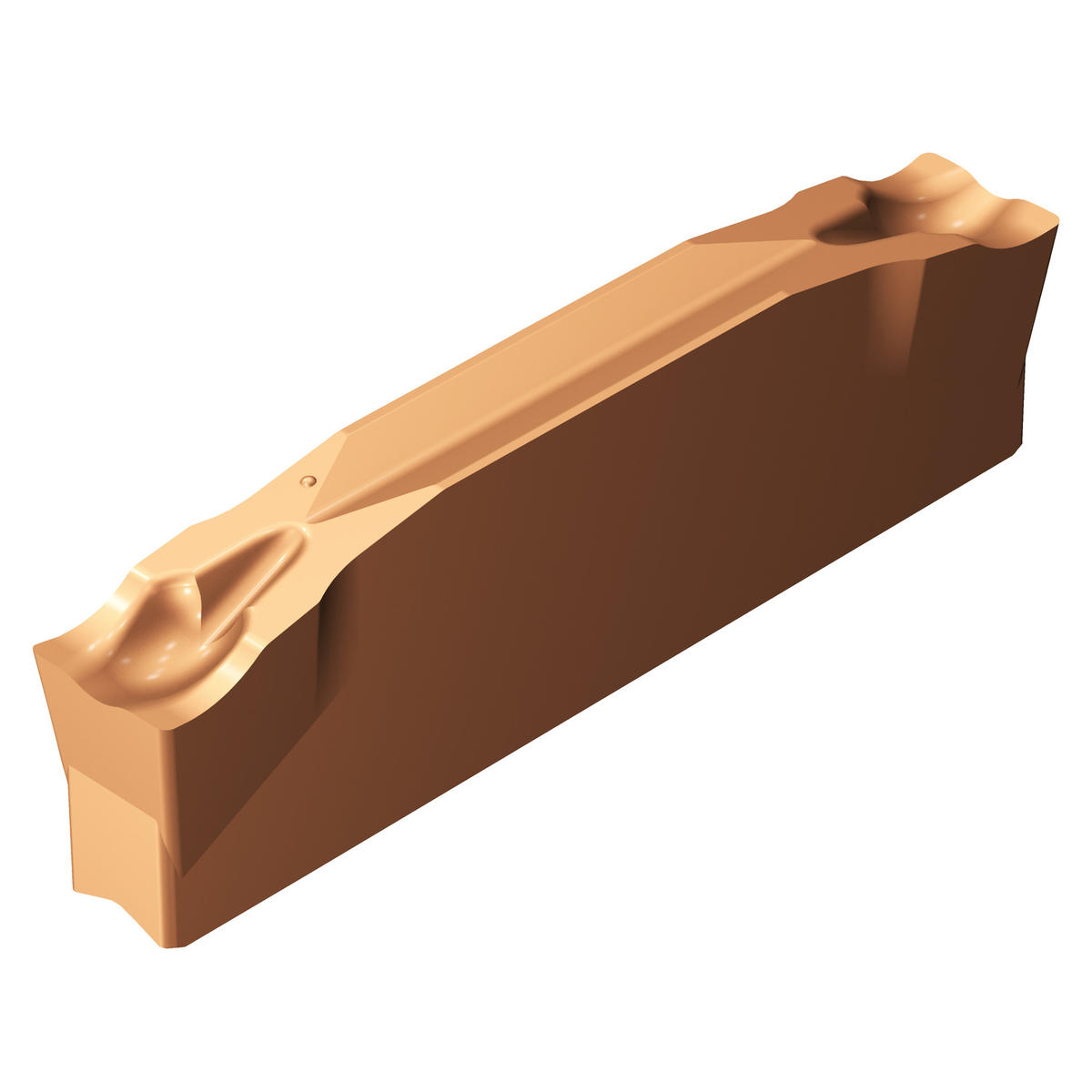

Sandvik Coromant 5735976
Specifications
| Coating/Finish | TiAlN+TiAlN |
|---|---|
| Series | CoroCut 1-2 |
| Insert Size | H2 |
| Material | WC or Cermet |
| Short Description | CoroCutĀ® 1-2 insert for parting |
| Unit Of Measure | Metric |
| Style | N123 |
| Grade | 1145 |
| Cutting Width | 4 mm |
| Chip Breaker Type | CM |
| Cutting Width (Decimal) | 0.157 |
| Cutting Width (Metric) | 4 |
| ANSI Code | N123H2-0400-0002-CM 1145 |
| ISO Code | N123H2-0400-0002-CM 1145 |
| Insert Seat Size Code | H |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Insert Gauge Length (Decimal) | 0.97 |
| Insert Gauge Length (Metric) | 24.6 |
| Corner Radius Left (Decimal) | 0.008 |
| Corner Radius Left (Metric) | 0.2 |
| Corner Radius Right (Decimal) | 0.008 |
| Corner Radius Right (Metric) | 0.2 |
| Corner Radius Lower Tolerance (Decimal) | -0.003937 |
| Corner Radius Lower Tolerance (Metric) | -0.1 |
| Corner Radius Upper Tolerance (Decimal) | 0.003937 |
| Corner Radius Upper Tolerance (Metric) | 0.1 |
| Cutting Width Upper Tolerance (Decimal) | 0.003937 |
| Cutting Width Upper Tolerance (Metric) | 0.1 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMS |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.157 |
| Max. Cutting Depth (Decimal) | 0.95 |
| Max. Cutting Depth (Metric) | 24.1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.013 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | N123 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | N123H2-0400-0002-CM1145 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | N123H2-0400-0002-CM 1145 |
| Length Packed Product Imperial | 5.079 inch |
