Sandvik Coromant
5736224

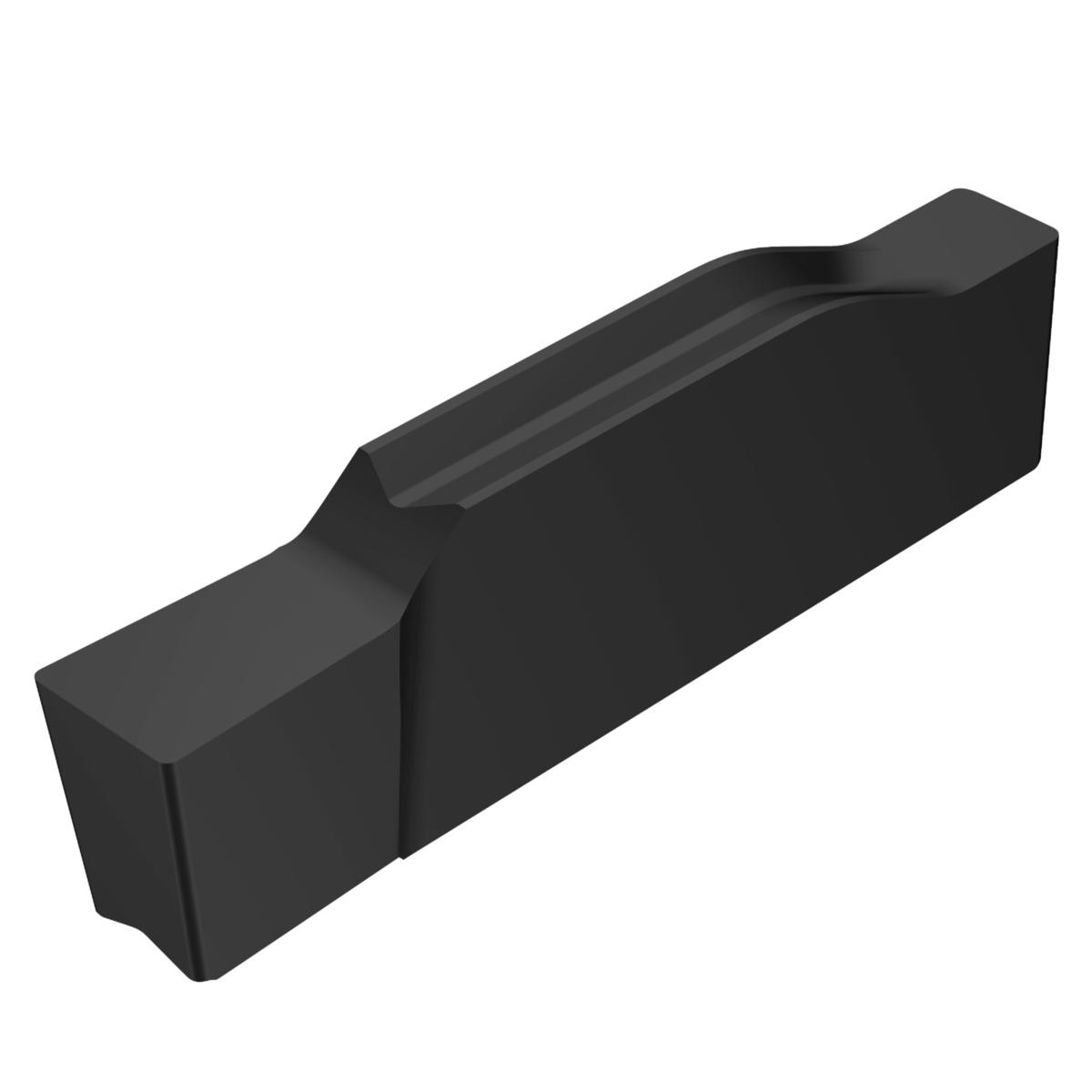

Sandvik Coromant 5736224
Specifications
| Size | J1 |
|---|---|
| Chip Breaker Type | GE |
| Coating/Finish | Uncoated |
| Material | CBN Low Content |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.24 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.018 LB |
| Unit Of Measure | Metric |
| Short Description | CoroCutĀ® 1-2 insert for grooving |
| Series | CoroCut 1-2 |
| Style | N123 |
| Grade | CB20 |
| Cutting Width | 6 mm |
| Cutting Width (Decimal) | 0.24 |
| Cutting Width (Metric) | 6 |
| ANSI Code | N123J1-0600-0002-GE CB20 |
| ISO Code | N123J1-0600-0002-GE CB20 |
| Insert Seat Size Code | J |
| Hand of Insert | Neutral |
| Coating Process Type | Uncoat |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | CBN |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.2 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.2 |
| Corner Radius Lower Tolerance (Decimal) | -0.001969 |
| Corner Radius Lower Tolerance (Metric) | -0.05 |
| Corner Radius Upper Tolerance (Decimal) | 0.001969 |
| Corner Radius Upper Tolerance (Metric) | 0.05 |
| Cutting Width Lower Tolerance (Decimal) | -0.000787 |
| Cutting Width Lower Tolerance (Metric) | -0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.000787 |
| Cutting Width Upper Tolerance (Metric) | 0.02 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | H |
| Country of Origin | Poland |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | N123 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | N123J1-0600-0002-GECB20 |
| Insert Size | J1 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | N123J1-0600-0002-GE CB20 |
| Length Packed Product Imperial | 3.74 inch |
