Sandvik Coromant
5736607

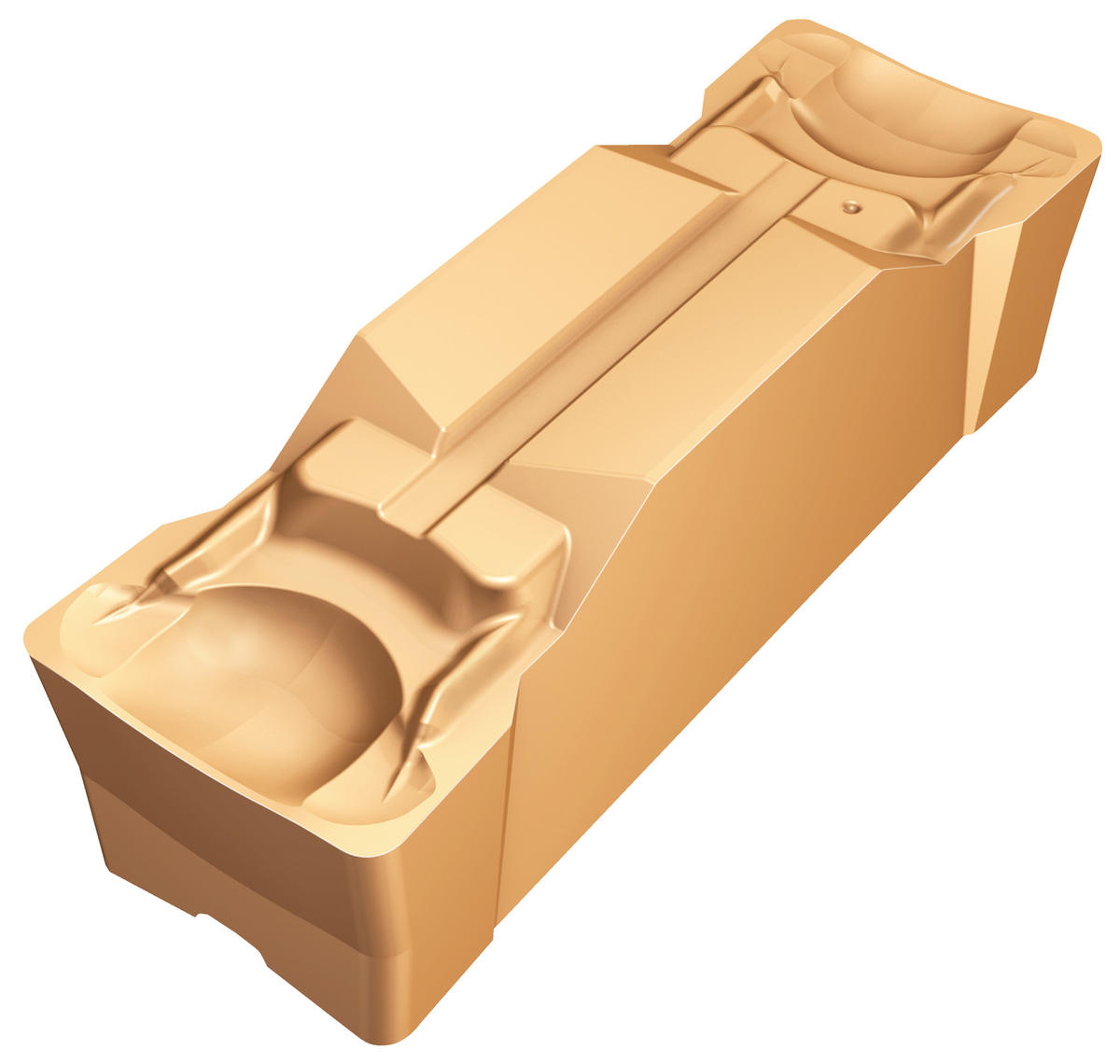

Sandvik Coromant 5736607
Specifications
| Size | J2 |
|---|---|
| Chip Breaker Type | GM |
| Coating/Finish | TiAlN+TiAlN |
| Material | WC or Cermet |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.2 |
| Max. Depth Of Cut (Decimal) | 0.9 |
| Max. Depth Of Cut (Metric) | 22.9 |
| Maximum Depth Of Cut (Inch) | 0.9 |
| Maximum Depth Of Cut (Metric) | 22.9 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.018 LB |
| Unit Of Measure | Metric |
| Short Description | CoroCutĀ® 1-2 insert for grooving |
| Series | CoroCut 1-2 |
| Style | N123 |
| Grade | 1145 |
| Cutting Width | 5 mm |
| Cutting Width (Decimal) | 0.2 |
| Cutting Width (Metric) | 5 |
| ANSI Code | N123J2-0500-0004-GM 1145 |
| ISO Code | N123J2-0500-0004-GM 1145 |
| Insert Seat Size Code | J |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Insert Gauge Length (Decimal) | 0.97 |
| Insert Gauge Length (Metric) | 24.67 |
| Corner Radius Left (Decimal) | 0.02 |
| Corner Radius Left (Metric) | 0.4 |
| Corner Radius Right (Decimal) | 0.02 |
| Corner Radius Right (Metric) | 0.4 |
| Corner Radius Lower Tolerance (Decimal) | -0.003937 |
| Corner Radius Lower Tolerance (Metric) | -0.1 |
| Corner Radius Upper Tolerance (Decimal) | 0.003937 |
| Corner Radius Upper Tolerance (Metric) | 0.1 |
| Cutting Width Upper Tolerance (Decimal) | 0.003937 |
| Cutting Width Upper Tolerance (Metric) | 0.1 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMS |
| Country of Origin | Sweden |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | N123 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | N123J2-0500-0004-GM1145 |
| Insert Size | J2 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | N123J2-0500-0004-GM 1145 |
| Length Packed Product Imperial | 5.079 inch |
