Sandvik Coromant
5736674

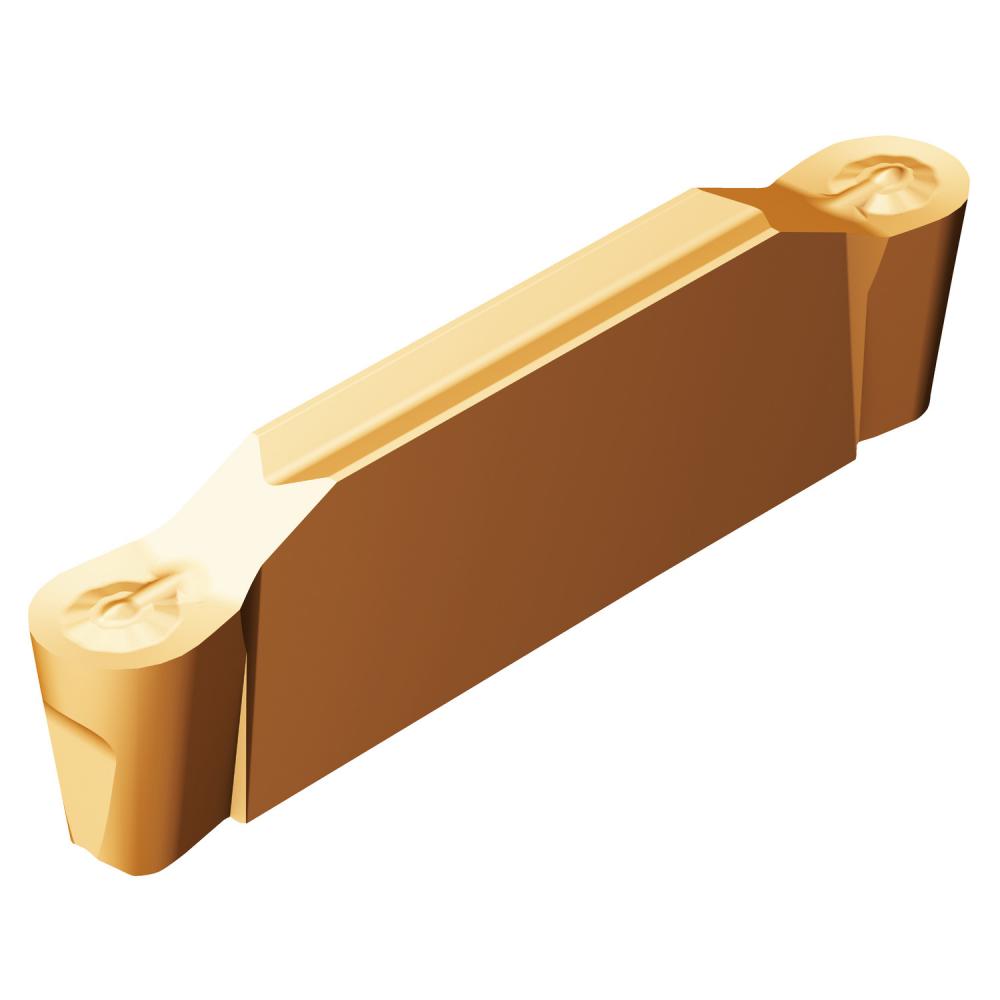

Sandvik Coromant 5736674
Specifications
| Series | CoroCut 1-2 |
|---|---|
| Corner Radius (Metric) | 3.18 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.13 |
| Insert Size | J2 |
| Coating/Finish | TiAlN |
| Short Description | CoroCutĀ® 1-2 insert for profiling |
| Style | N123 |
| Grade | 1125 |
| Unit Of Measure | Metric |
| Cutting Width | 6.35 mm |
| Chip Breaker Type | RO |
| Cutting Width (Decimal) | 0.25 |
| Cutting Width (Metric) | 6.35 |
| ANSI Code | N123J2-0635-RO 1125 |
| ISO Code | N123J2-0635-RO 1125 |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Insert Seat Size Code | J |
| Corner Radius Lower Tolerance (Decimal) | -0.000394 |
| Corner Radius Lower Tolerance (Metric) | -0.01 |
| Corner Radius Upper Tolerance (Decimal) | 0.000394 |
| Corner Radius Upper Tolerance (Metric) | 0.01 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Insert Gauge Length (Decimal) | 0.99 |
| Insert Gauge Length (Metric) | 25.05 |
| Cutting Width Lower Tolerance (Decimal) | -0.000787 |
| Cutting Width Lower Tolerance (Metric) | -0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.000787 |
| Cutting Width Upper Tolerance (Metric) | 0.02 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMKNS |
| Country of Origin | Japan |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.25 |
| Max. Cutting Depth (Decimal) | 0.87 |
| Max. Cutting Depth (Metric) | 22 |
| Max. Depth Of Cut (Decimal) | 0.12 |
| Max. Depth Of Cut (Metric) | 3 |
| Maximum Depth Of Cut (Inch) | 0.12 |
| Maximum Depth Of Cut (Metric) | 3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.018 LB |
