Sandvik Coromant
5736825

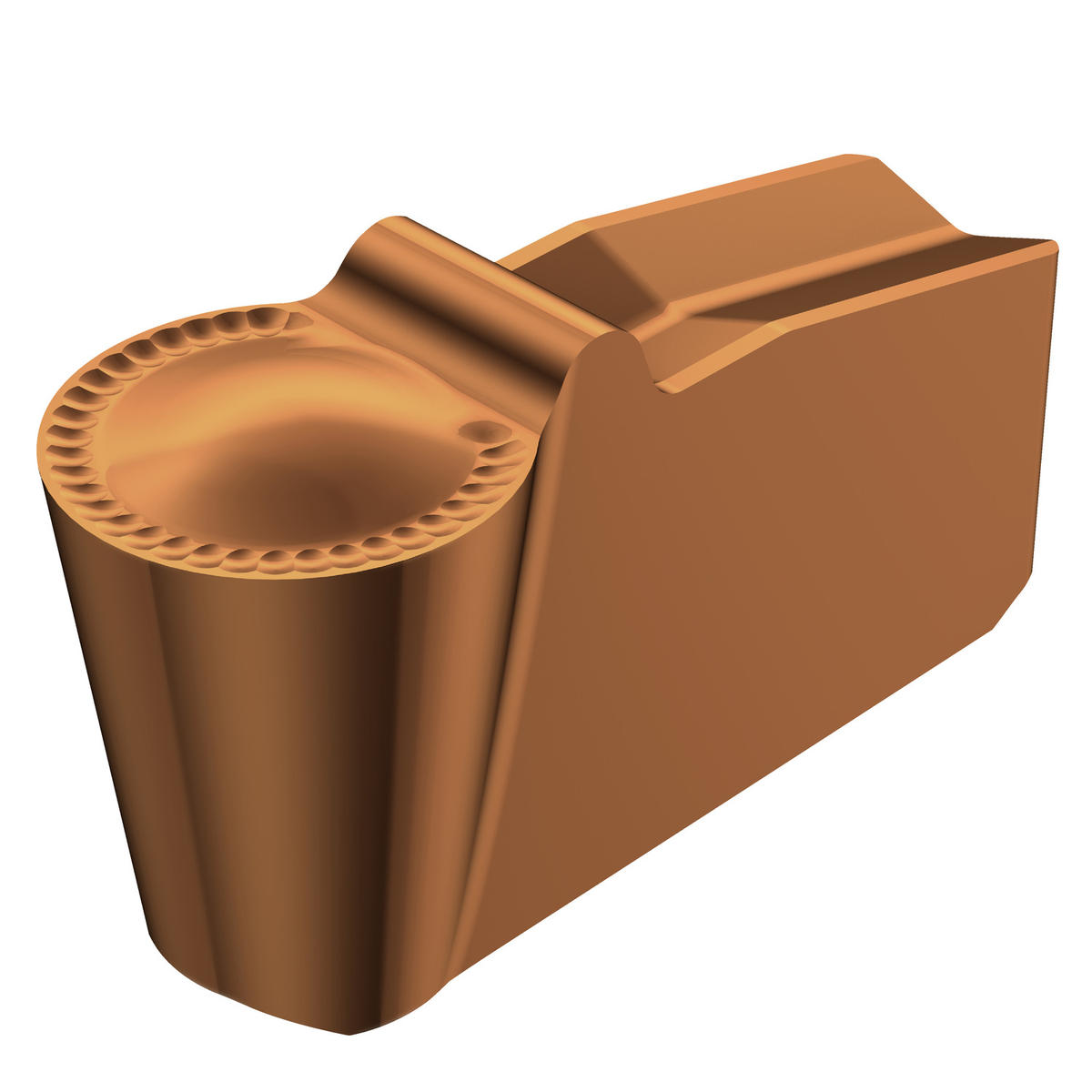

Sandvik Coromant 5736825
Specifications
| Series | T-Max Q-Cut |
|---|---|
| Corner Radius (Metric) | 1.5 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.06 |
| Insert Size | 30 |
| Coating/Finish | TiAlN |
| Short Description | T-Max® Q-Cut insert for profiling |
| Style | N151.2 |
| Grade | 1125 |
| Unit Of Measure | Metric |
| Cutting Width | 3 mm |
| Chip Breaker Type | 5P |
| Cutting Width (Decimal) | 0.12 |
| Cutting Width (Metric) | 3 |
| ANSI Code | N151.2-300-30-5P 1125 |
| ISO Code | N151.2-300-30-5P 1125 |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Insert Seat Size Code | 30 |
| Corner Radius Lower Tolerance (Decimal) | -0.000984 |
| Corner Radius Lower Tolerance (Metric) | -0.03 |
| Corner Radius Upper Tolerance (Decimal) | 0.000984 |
| Corner Radius Upper Tolerance (Metric) | 0.03 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Cutting Width Lower Tolerance (Decimal) | -0.001969 |
| Cutting Width Lower Tolerance (Metric) | -0.05 |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMKNS |
| Country of Origin | Japan |
| Base Item Number | 1060 |
| Cutting Width (Inch) | 0.12 |
| Max. Depth Of Cut (Decimal) | 0.05 |
| Max. Depth Of Cut (Metric) | 1.3 |
| Maximum Depth Of Cut (Inch) | 0.05 |
| Maximum Depth Of Cut (Metric) | 1.3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
