Sandvik Coromant
5737231

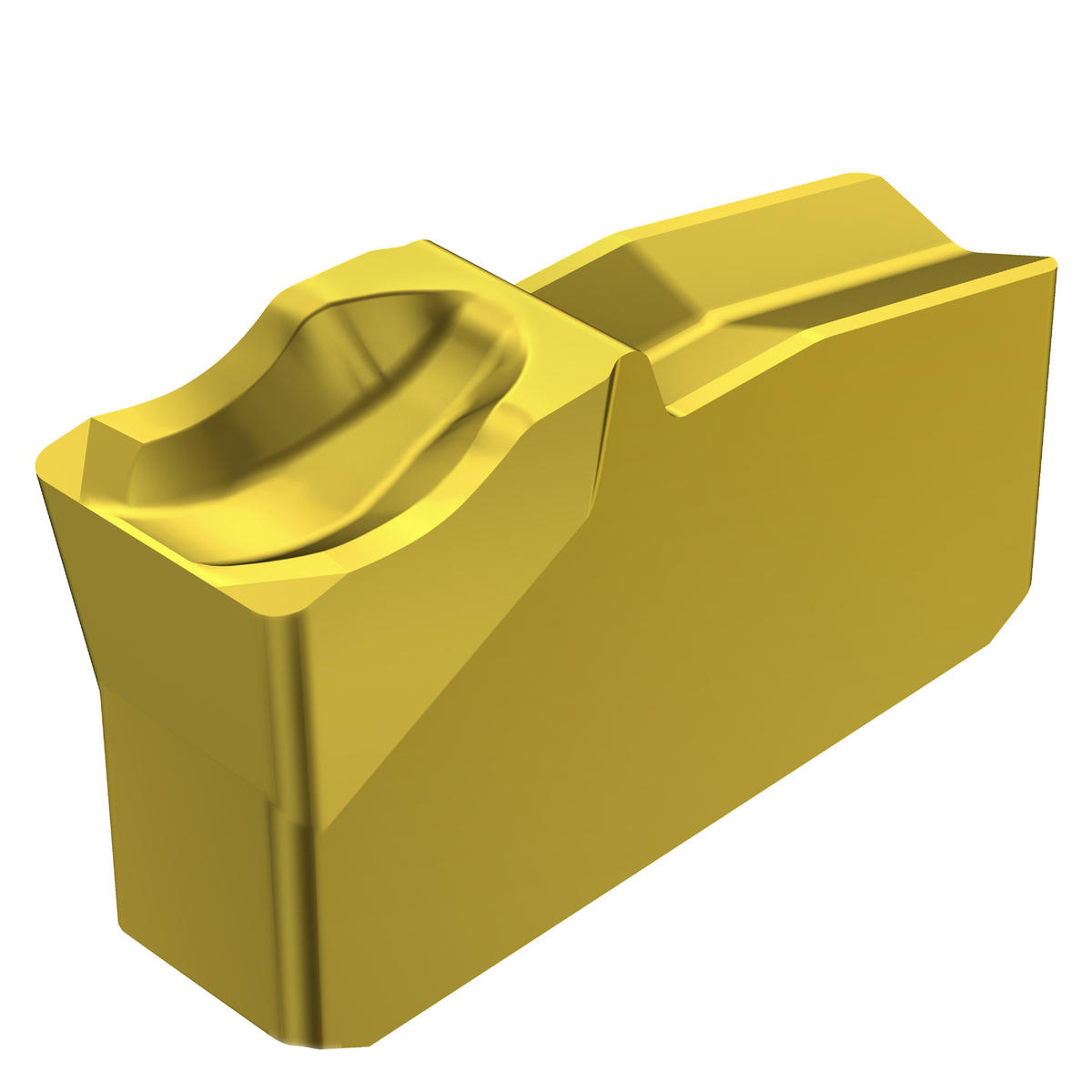

Sandvik Coromant 5737231
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Series | T-Max Q-Cut |
| Insert Size | 50 |
| Material | WC or Cermet |
| Short Description | T-Max® Q-Cut insert for parting |
| Unit Of Measure | Metric |
| Style | N151.2 |
| Grade | 235 |
| Cutting Width | 5 mm |
| Chip Breaker Type | 4E |
| Cutting Width (Decimal) | 0.197 |
| Cutting Width (Metric) | 5 |
| ANSI Code | N151.2-500-4E 235 |
| ISO Code | N151.2-500-4E 235 |
| Insert Seat Size Code | 50 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Roughing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.016 |
| Corner Radius Left (Metric) | 0.4 |
| Corner Radius Right (Decimal) | 0.016 |
| Corner Radius Right (Metric) | 0.4 |
| Corner Radius Lower Tolerance (Decimal) | -0.003937 |
| Corner Radius Lower Tolerance (Metric) | -0.1 |
| Corner Radius Upper Tolerance (Decimal) | 0.003937 |
| Corner Radius Upper Tolerance (Metric) | 0.1 |
| Cutting Width Upper Tolerance (Decimal) | 0.009843 |
| Cutting Width Upper Tolerance (Metric) | 0.25 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMS |
| Country of Origin | Japan |
| Base Item Number | 1060 |
| Cutting Width (Inch) | 0.197 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.011 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | N151.2 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | N151.2-500-4E235 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | N151.2-500-4E 235 |
| Length Packed Product Imperial | 5.079 inch |
