Sandvik Coromant
5737821

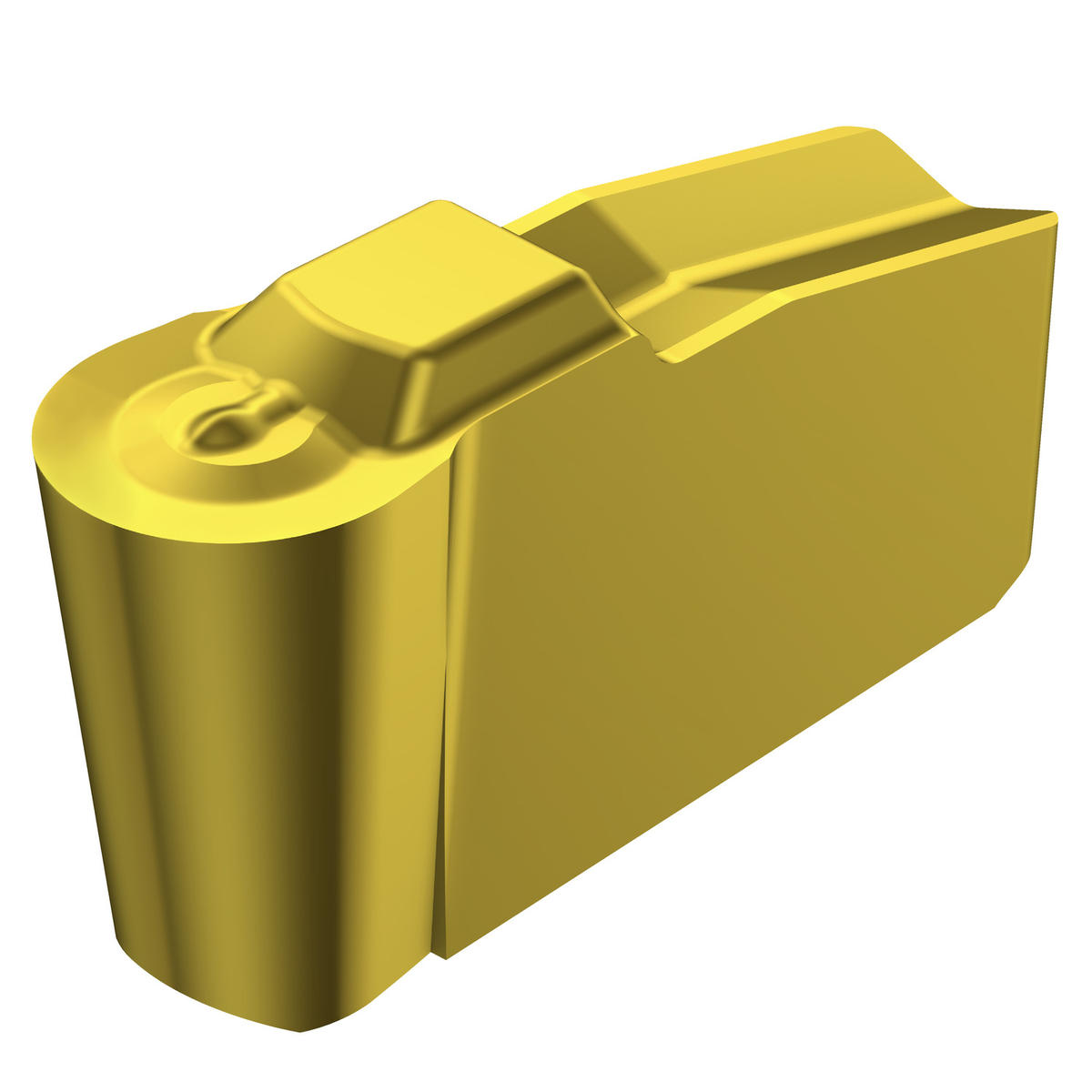

Sandvik Coromant 5737821
Specifications
| Series | T-Max Q-Cut |
|---|---|
| Corner Radius (Metric) | 4 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.16 |
| Insert Size | 60 |
| Coating/Finish | TiCN+TiN |
| Short Description | T-Max® Q-Cut insert for profiling |
| Style | N151.2 |
| Grade | 235 |
| Unit Of Measure | Metric |
| Cutting Width | 8 mm |
| Chip Breaker Type | 4P |
| Cutting Width (Decimal) | 0.32 |
| Cutting Width (Metric) | 8 |
| ANSI Code | N151.2-800-60-4P 235 |
| ISO Code | N151.2-800-60-4P 235 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Insert Seat Size Code | 60 |
| Corner Radius Lower Tolerance (Decimal) | -0.000787 |
| Corner Radius Lower Tolerance (Metric) | -0.02 |
| Corner Radius Upper Tolerance (Decimal) | 0.000787 |
| Corner Radius Upper Tolerance (Metric) | 0.02 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Cutting Width Lower Tolerance (Decimal) | -0.000787 |
| Cutting Width Lower Tolerance (Metric) | -0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.000787 |
| Cutting Width Upper Tolerance (Metric) | 0.02 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMS |
| Country of Origin | United States |
| Base Item Number | 1060 |
| Cutting Width (Inch) | 0.32 |
| Max. Depth Of Cut (Decimal) | 0.14 |
| Max. Depth Of Cut (Metric) | 3.6 |
| Maximum Depth Of Cut (Inch) | 0.14 |
| Maximum Depth Of Cut (Metric) | 3.6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.018 LB |
