Sandvik Coromant
5737949
Sandvik Coromant 5737949
Specifications
| Overall Length (Metric) | 70 |
|---|---|
| Overall Length (Inch) | 2.76 |
| Shank Width (Inch) | 0.39 |
| Shank Width (Metric) | 10 |
| Insert Style | QS-SMALR/L |
| Base Item Number | 1070 |
| Max. Cutting Depth | 8.5 mm |
| Max. Cutting Depth (Decimal) | 0.34 |
| Max. Cutting Depth (Metric) | 8.5 |
| Max. Overhang (Decimal) | 1.06 |
| Max. Overhang (Metric) | 27 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.196 LB |

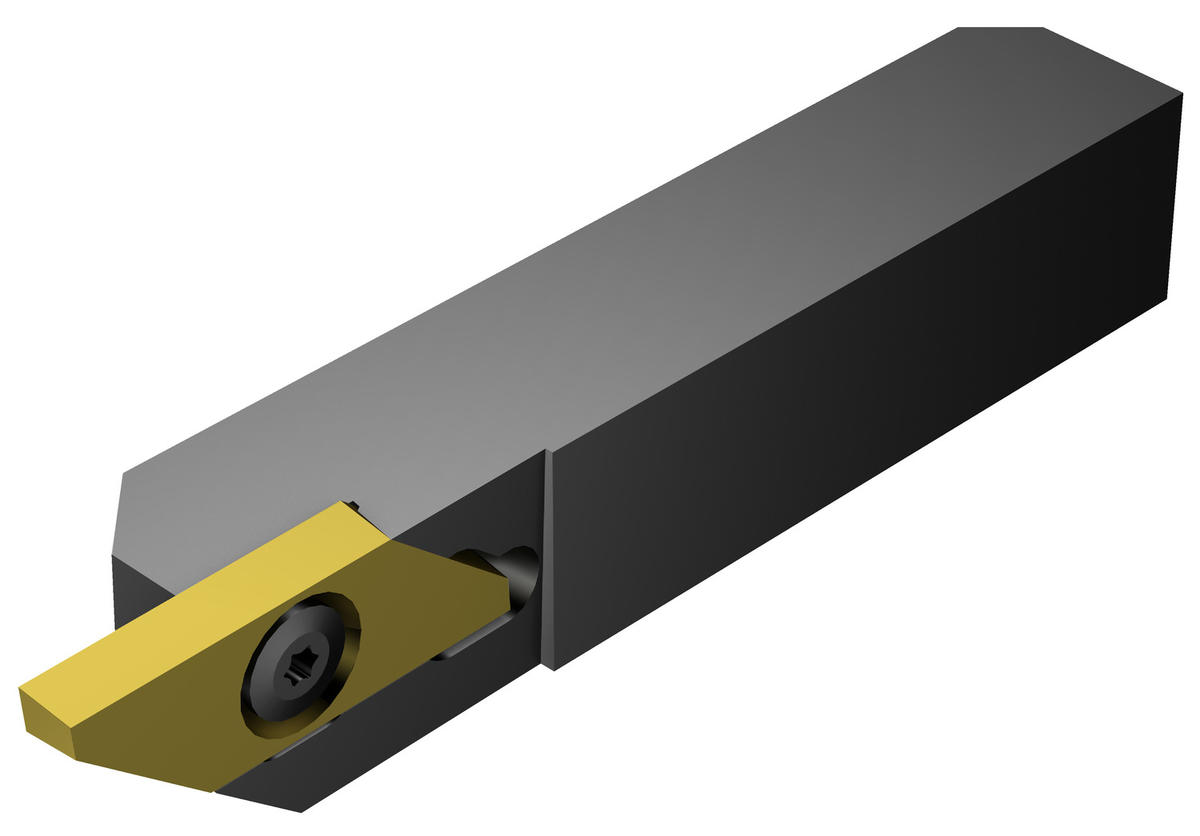

| Short Description | CoroCut® XS QS shank tool for parting and grooving |
| Series | CoroCut XS |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Insert Compatibility | MACR 3 200-N |
| Shank Height | 10 mm |
| Shank Width | 10 mm |
| Shank Height (Decimal) | 0.39 |
| Shank Height (Metric) | 10 |
| ANSI Code | QS-SMALR 1010E3 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.39 |
| Overall Width (Metric) | 10 |
| Overall Height (Decimal) | 0.39 |
| Overall Height (Metric) | 10 |
| Insert Seat Size Code | 3 |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Screw/Clamp |
| Torque | 1.2 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
