Sandvik Coromant
5738012

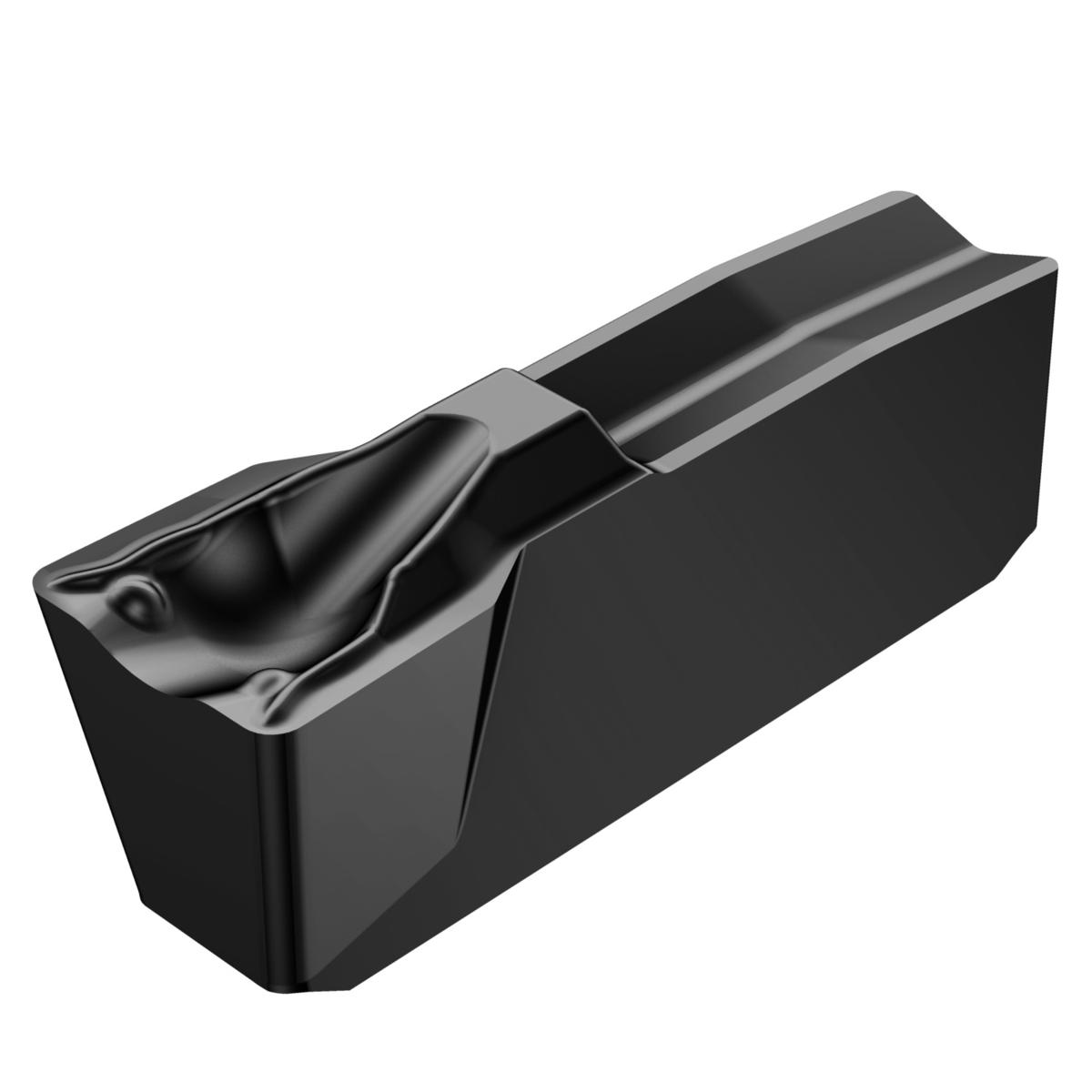

Sandvik Coromant 5738012
Specifications
| Size | 25 |
|---|---|
| Chip Breaker Type | 7G |
| Coating/Finish | TiCN+Al2O3 |
| Material | WC or Cermet |
| Base Item Number | 1060 |
| Cutting Width (Inch) | 0.12 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.002 LB |
| Unit Of Measure | Metric |
| Short Description | T-Max® Q-Cut insert for grooving |
| Series | T-Max Q-Cut |
| Style | N151.3 |
| Grade | 3020 |
| Cutting Width | 3 mm |
| Cutting Width (Decimal) | 0.12 |
| Cutting Width (Metric) | 3 |
| ANSI Code | N151.3-300-25-7G 3020 |
| ISO Code | N151.3-300-25-7G 3020 |
| Insert Seat Size Code | 25 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 8 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.01 |
| Corner Radius Left (Metric) | 0.3 |
| Corner Radius Right (Decimal) | 0.01 |
| Corner Radius Right (Metric) | 0.3 |
| Corner Radius Lower Tolerance (Decimal) | -0.003937 |
| Corner Radius Lower Tolerance (Metric) | -0.1 |
| Corner Radius Upper Tolerance (Decimal) | 0.003937 |
| Corner Radius Upper Tolerance (Metric) | 0.1 |
| Cutting Width Upper Tolerance (Decimal) | 0.003937 |
| Cutting Width Upper Tolerance (Metric) | 0.1 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PK |
| Country of Origin | United States |
| Height Packed Product Metric | 11 mm |
| Insert Style | N151.3 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | N151.3-300-25-7G3020 |
| Insert Size | 25 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | N151.3-300-25-7G 3020 |
| Length Packed Product Imperial | 3.74 inch |
