Sandvik Coromant
5738125
Sandvik Coromant 5738125
Specifications
| Overall Length (Metric) | 70 |
|---|---|
| Series | CoroTurn 107 |
| Tool Lead Angle | 0 degrees |
| Overall Length (Inch) | 2.76 |
| Insert Style | QS-SCACR/L |

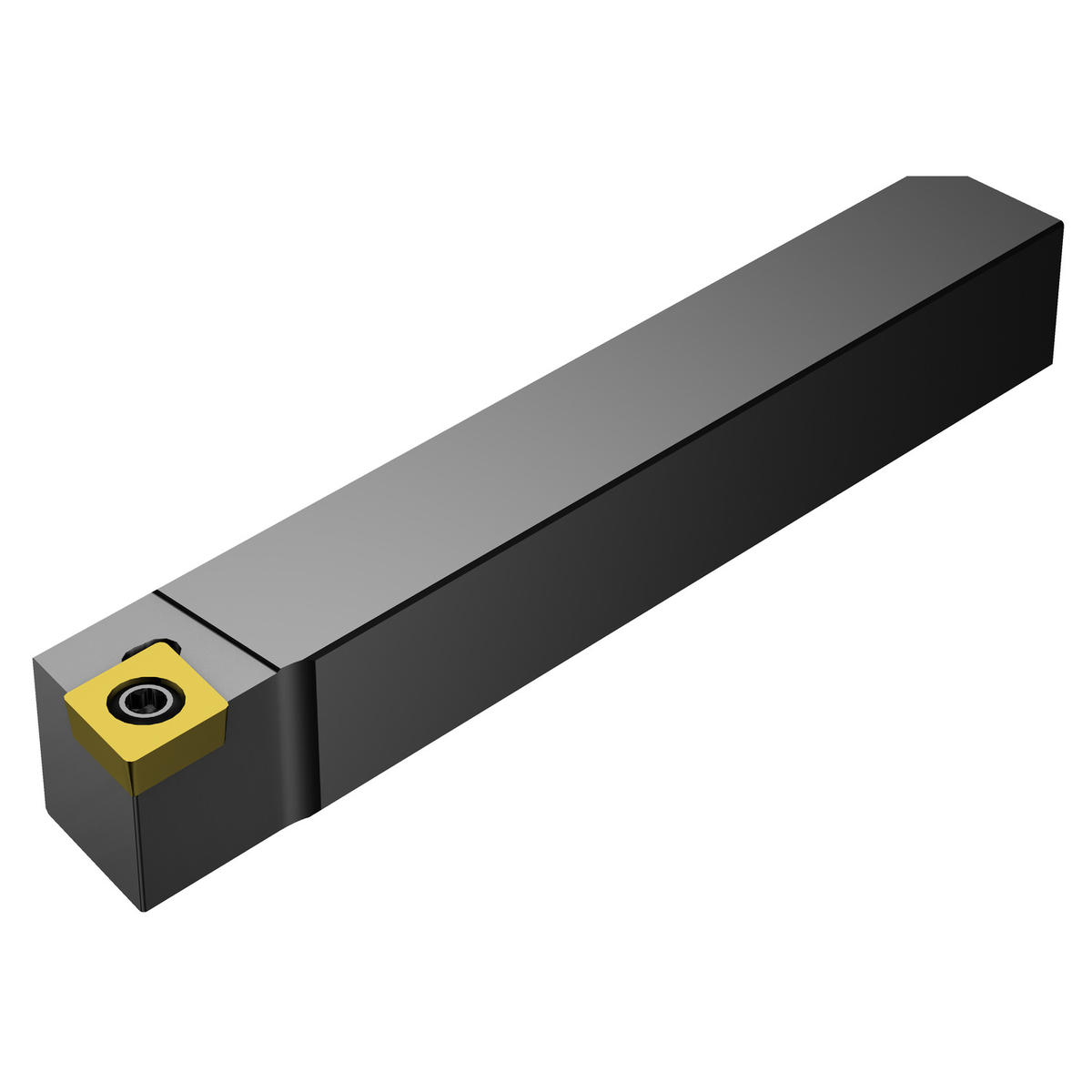

| Short Description | CoroTurn® 107 QS shank tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 10 mm |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.77 |
| Shank Width (Metric) | 10 |
| Shank Height (Metric) | 10 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 10 |
| Overall Height (Decimal) | 0.39 |
| Overall Length | 70 mm |
| Insert Compatibility | CCMT 060204 |
| ANSI Code | QS-SCACR1010E06 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.39 |
| Overall Width (Metric) | 10 |
| Shank Height (Decimal) | 0.39 |
| Clamping Type Code | Screw/Clamp |
| Torque | 0.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 90 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
| Base Item Number | 1053 |
| Max. Overhang (Decimal) | 0.39 |
| Max. Overhang (Metric) | 10 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.154 LB |
