Sandvik Coromant
5738310

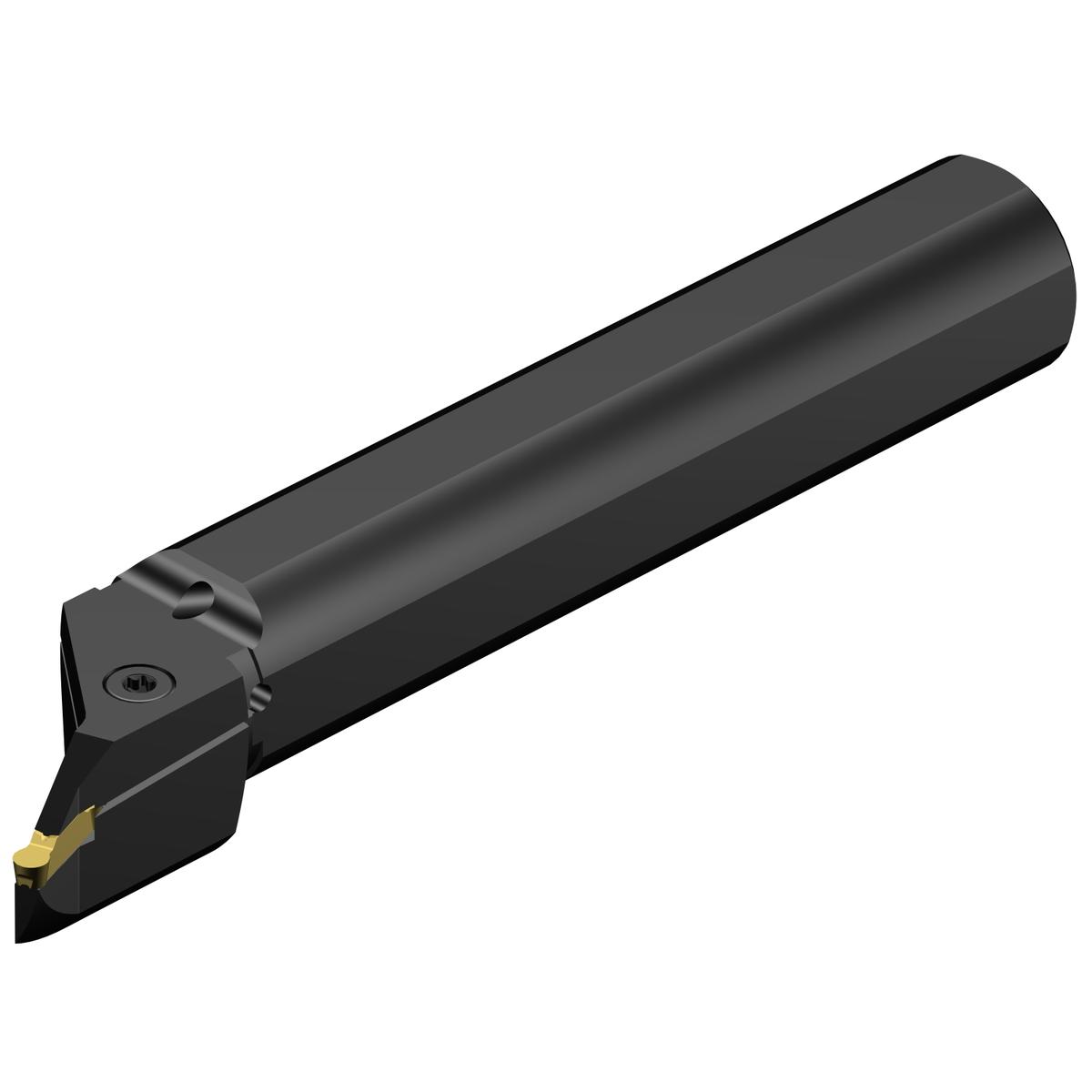

Sandvik Coromant 5738310
Specifications
| Minimum Bore Diameter (Metric) | 63.5 |
|---|---|
| Minimum Bore Diameter (Inch) | 2.5 |
| Shank Diameter (Metric) | 40 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 254 |
| Shank Diameter (Inch) | 1.58 |
| Overall Length (Inch) | 10 |
| Short Description | CoroCutĀ® 1-2 boring bar for profiling |
| Unit Of Measure | Metric |
| Series | CoroCut 1-2 |
| Shank Height (Metric) | 37 |
| Shank Height (Decimal) | 1.46 |
| Orthogonal Rake Angle | 0 degrees |
| Overall Length | 254 mm |
| Shank Diameter | 40 mm |
| Coolant Through | Yes |
| ANSI Code | RAX123J25-40B-020 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 20 degrees |
| Overall Height (Decimal) | 0.73 |
| Overall Height (Metric) | 18.5 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26 |
| Inclination Angle | 0 degrees |
| Protruding Length (Decimal) | 10 |
| Protruding Length (Metric) | 254 |
| Clamping Type Code | Clamp |
| Torque | 3 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | United States |
| Base Item Number | 1073 |
| Max. Cutting Depth (Decimal) | 0.98 |
| Max. Cutting Depth (Metric) | 25 |
| Max. Overhang (Decimal) | 6.3 |
| Max. Overhang (Metric) | 160 |
| Maximum Ramping Angle | 20 degrees |
| Min Bore Diameter | 63.5 mm |
| Min. Overhang (Decimal) | 2.58 |
| Min. Overhang (Metric) | 65.6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 4.409 LB |
| Height Packed Product Metric | 72 mm |
| Height Packed Product Imperial | 2.835 inch |
| ISO Code (packed) | RAX123J25-40B-020 |
| Length Packed Product Metric | 262 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RAX123J25-40B-020 |
| Length Packed Product Imperial | 10.315 inch |
