Sandvik Coromant
5738408
Sandvik Coromant 5738408
Specifications
| Overall Length (Metric) | 100 |
|---|---|
| Series | T-Max P |
| Tool Lead Angle | -3 degrees |
| Overall Length (Inch) | 3.94 |
| Insert Style | PDJNR/L |

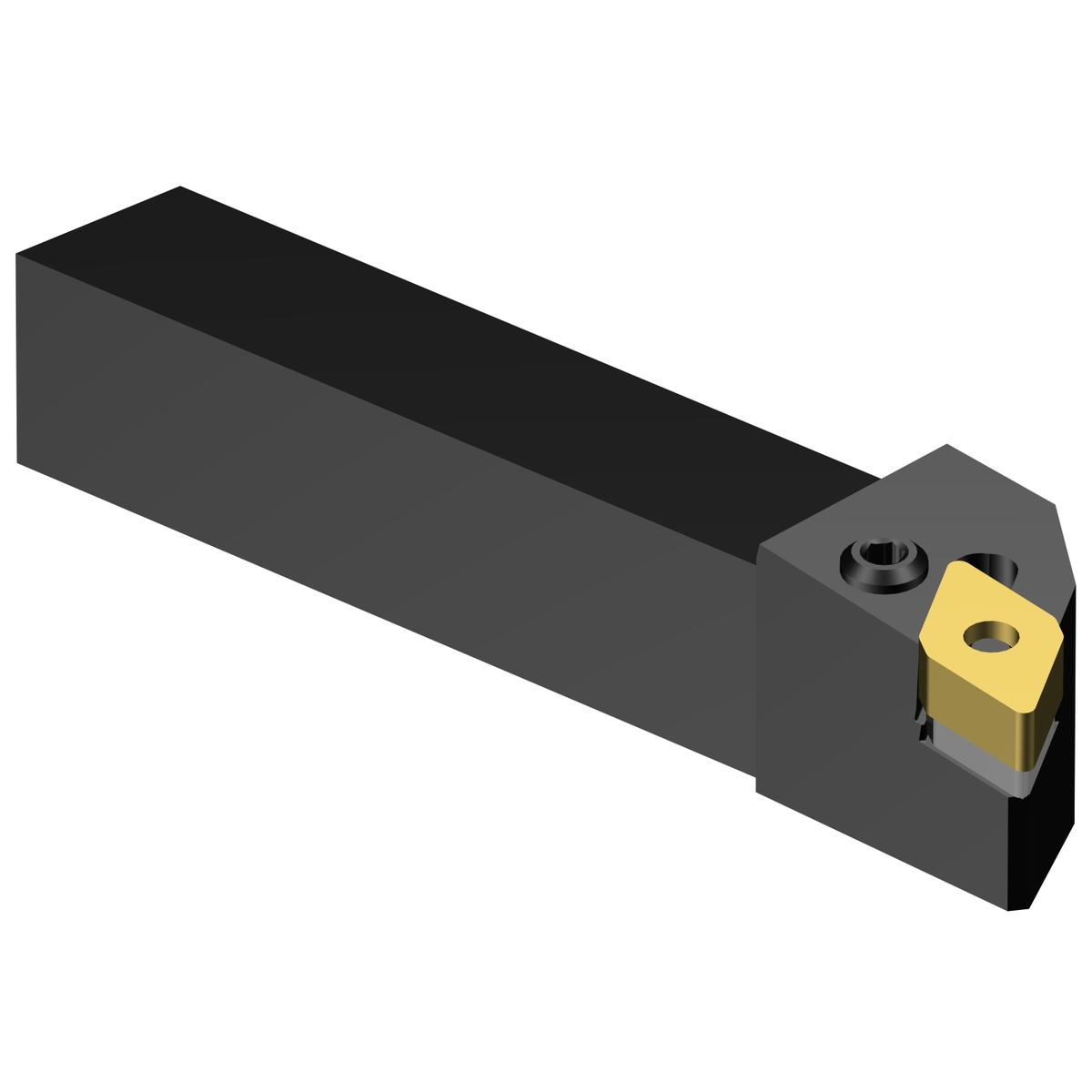

| Short Description | T-Max® P shank tool for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 16 mm |
| Orthogonal Rake Angle | -6 degrees |
| Shank Width (Decimal) | 0.87 |
| Shank Width (Metric) | 16 |
| Shank Height (Metric) | 16 |
| Inclination Angle | -7 degrees |
| Overall Height (Metric) | 16 |
| Overall Height (Decimal) | 0.63 |
| Overall Length | 100 mm |
| Insert Compatibility | DNMG 110408 |
| ANSI Code | PDJNL 1616H 11 |
| Coolant Through | No |
| Overall Width (Decimal) | 0.79 |
| Overall Width (Metric) | 20 |
| Shank Height (Decimal) | 0.63 |
| Clamping Type Code | Clamp |
| Torque | 2 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 1.17 |
| Max. Overhang (Metric) | 29.7 |
| Maximum Ramping Angle | 27 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.408 LB |
