Sandvik Coromant
5738952

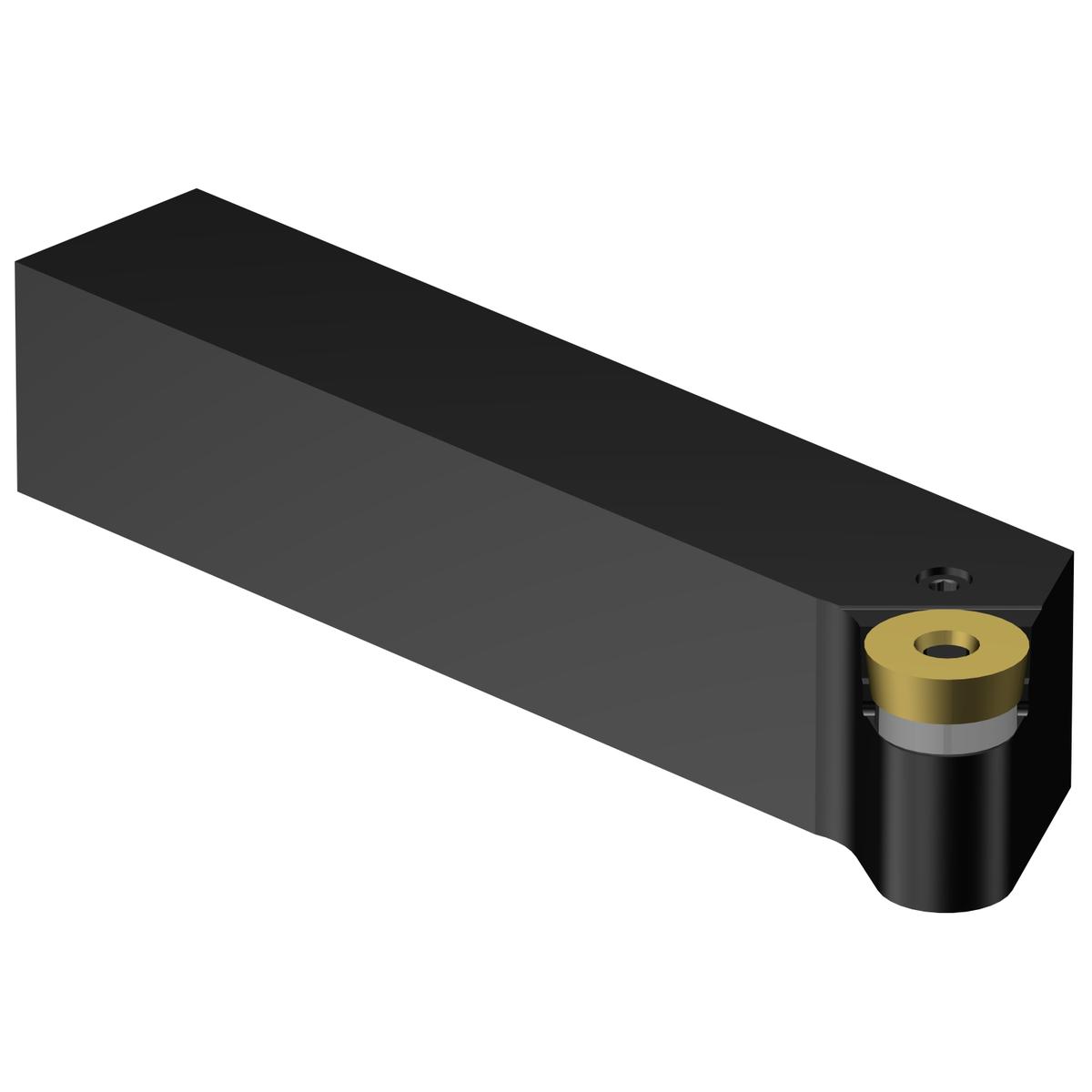

Sandvik Coromant 5738952
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Series | T-Max P |
| Overall Length (Inch) | 6.69 |
| Insert Style | PRGCR/L |
| Short Description | T-Max® P shank tool for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 32 mm |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 32 |
| Shank Height (Metric) | 32 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 32 |
| Overall Height (Decimal) | 1.26 |
| Overall Length | 170 mm |
| Insert Compatibility | RCMX 200600 |
| ANSI Code | PRGCL 3232P 20 |
| Coolant Through | No |
| Overall Width (Decimal) | 1.58 |
| Overall Width (Metric) | 40 |
| Shank Height (Decimal) | 1.26 |
| Clamping Type Code | Clamp |
| Torque | 8 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1049 |
| Max. Overhang (Decimal) | 1.5 |
| Max. Overhang (Metric) | 38 |
| Maximum Ramping Angle | 27 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.943 LB |
