Sandvik Coromant
5739601

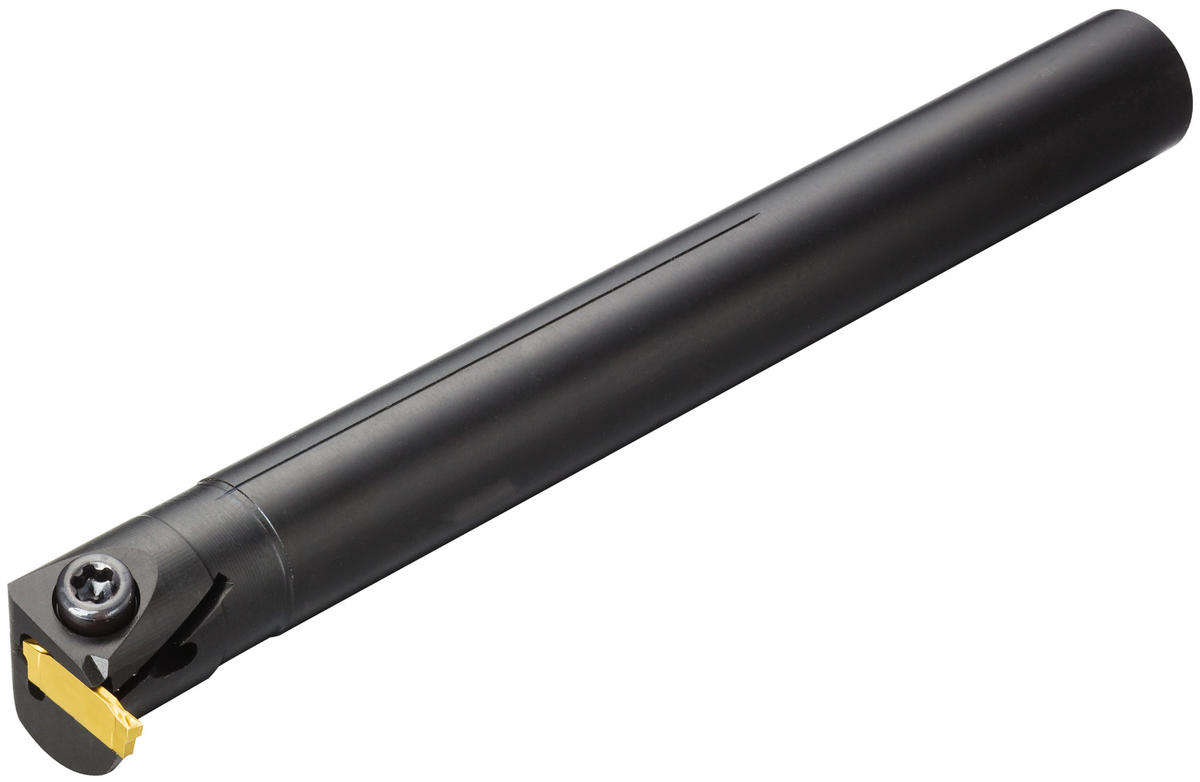

Sandvik Coromant 5739601
Specifications
| Minimum Bore Diameter (Metric) | 32 |
|---|---|
| Minimum Bore Diameter (Inch) | 1.26 |
| Shank Diameter (Metric) | 25.4 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 200 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 7.87 |
| Short Description | CoroCutĀ® 1-2 boring bar for grooving |
| Unit Of Measure | Imperial |
| Series | CoroCut 1-2 |
| Overall Length | 7.87 Inch |
| Shank Diameter | 1 Inch |
| Coolant Through | Yes |
| ANSI Code | RAG123H030-16B |
| Workpiece Side Body Angle | 90 degrees |
| Body Diameter (Decimal) | 0.63 |
| Body Diameter (Metric) | 16 |
| Coolant Pressure | 580.151 lbf/in2 |
| Overall Width (Decimal) | 0.76 |
| Overall Width (Metric) | 19.25 |
| Clamping Type Code | Clamp |
| Torque | 4.5 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | United States |
| Base Item Number | 1073 |
| Max. Cutting Depth (Decimal) | 0.28 |
| Max. Cutting Depth (Metric) | 7 |
| Max. Overhang (Decimal) | 4 |
| Max. Overhang (Metric) | 101.6 |
| Min Bore Diameter | 1.26 Inch |
| Min. Overhang (Decimal) | 1.38 |
| Min. Overhang (Metric) | 35 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.649 LB |
| Height Packed Product Metric | 47 mm |
| Height Packed Product Imperial | 1.85 inch |
| ISO Code (packed) | RAG123H030-16B |
| Length Packed Product Metric | 210 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | RAG123H030-16B |
| Length Packed Product Imperial | 8.268 inch |
