Sandvik Coromant
5740174
Sandvik Coromant 5740174
Specifications
| Shank Diameter (Metric) | 31.75 |
|---|---|
| Series | CoroMill 390 |
| Direction Of Hand | Right |
| Overall Length (Inch) | 4.5 |
| Material | Steel |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1.25 |
| Cutting Diameter (Metric) | 38.1 |
| Cutting Diameter (Inch) | 1.5 |
| Overall Length (Metric) | 114.33 |

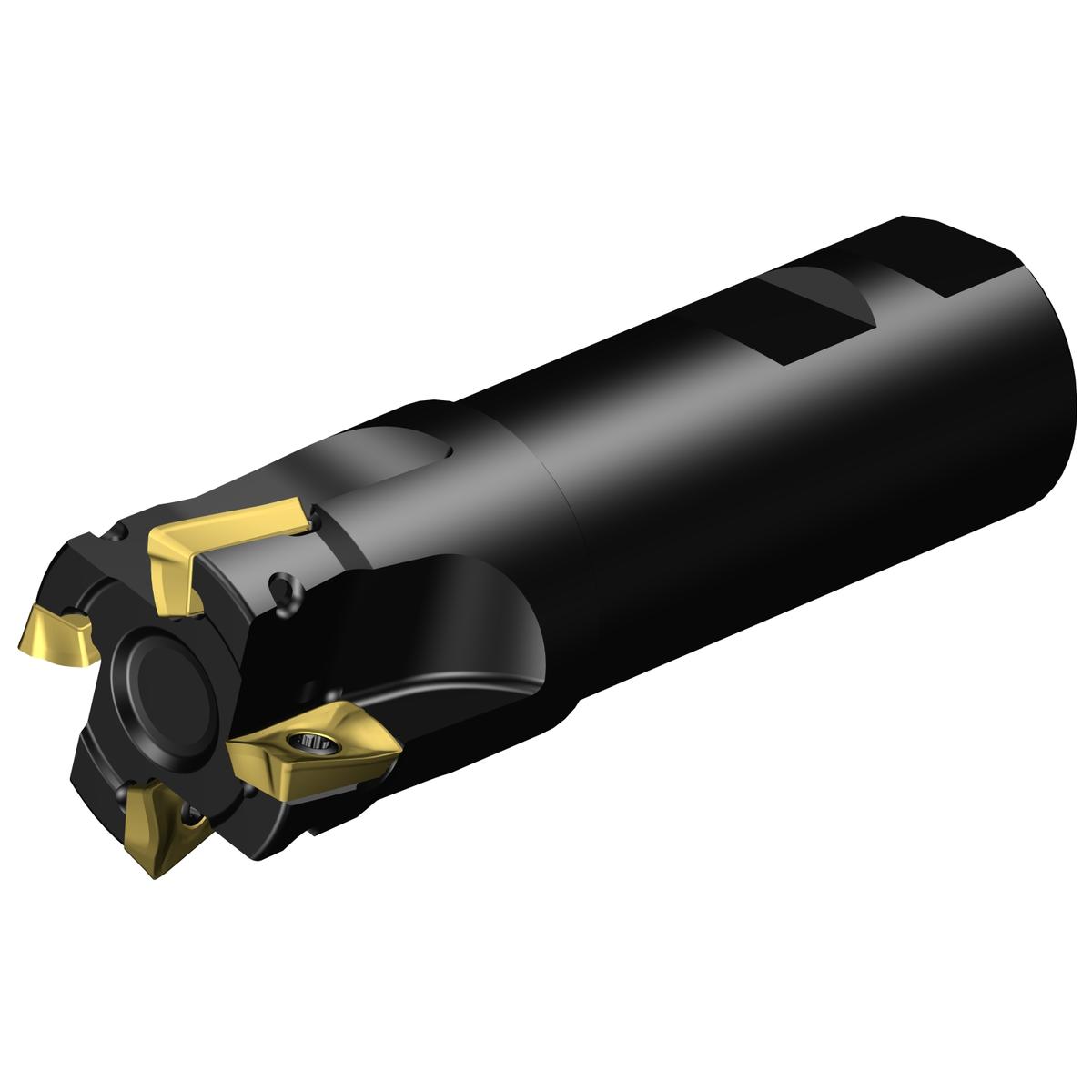

| Short Description | CoroMill® 390 square shoulder milling cutter |
| Unit Of Measure | Imperial |
| Cutting Diameter | 1.5 Inch |
| Shank Diameter | 1.25 Inch |
| ANSI Code | RA390-038M32-17H |
| Coolant Through | Yes |
| Center Cutting Capability | No |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Connection Diameter Tolerance | H6 |
| Torque | 3 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Standard | WE; ISO3338-2 |
| Cutting Pitch Differential | Yes |
| Damping Property | No |
| Country of Origin | United States |
| Base Item Number | 1003 |
| Max. Depth Of Cut | 0.34 Inch |
| Max. Depth Of Cut (Decimal) | 0.34 |
| Max. Depth Of Cut (Metric) | 8.5 |
| Max. Plunge Depth (Decimal) | 0.06 |
| Max. Plunge Depth (Metric) | 1.5 |
| Max. Rotational Speed | 22700 1/min |
| Maximum Depth Of Cut (Inch) | 0.34 |
| Maximum Depth Of Cut (Metric) | 8.5 |
| Maximum Ramping Angle | 4.1 degrees |
| Number Of Inserts | 4 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.38 LB |
