Sandvik Coromant
5740245
Sandvik Coromant 5740245
Specifications
| Shank Diameter (Metric) | 38.1 |
|---|---|
| Series | CoroMill 390 |
| Direction Of Hand | Right |
| Overall Length (Inch) | 2.48 |
| Material | Steel |
| Shank Diameter (Inch) | 1.5 |
| Cutting Diameter (Metric) | 127 |
| Cutting Diameter (Inch) | 5 |
| Overall Length (Metric) | 63 |

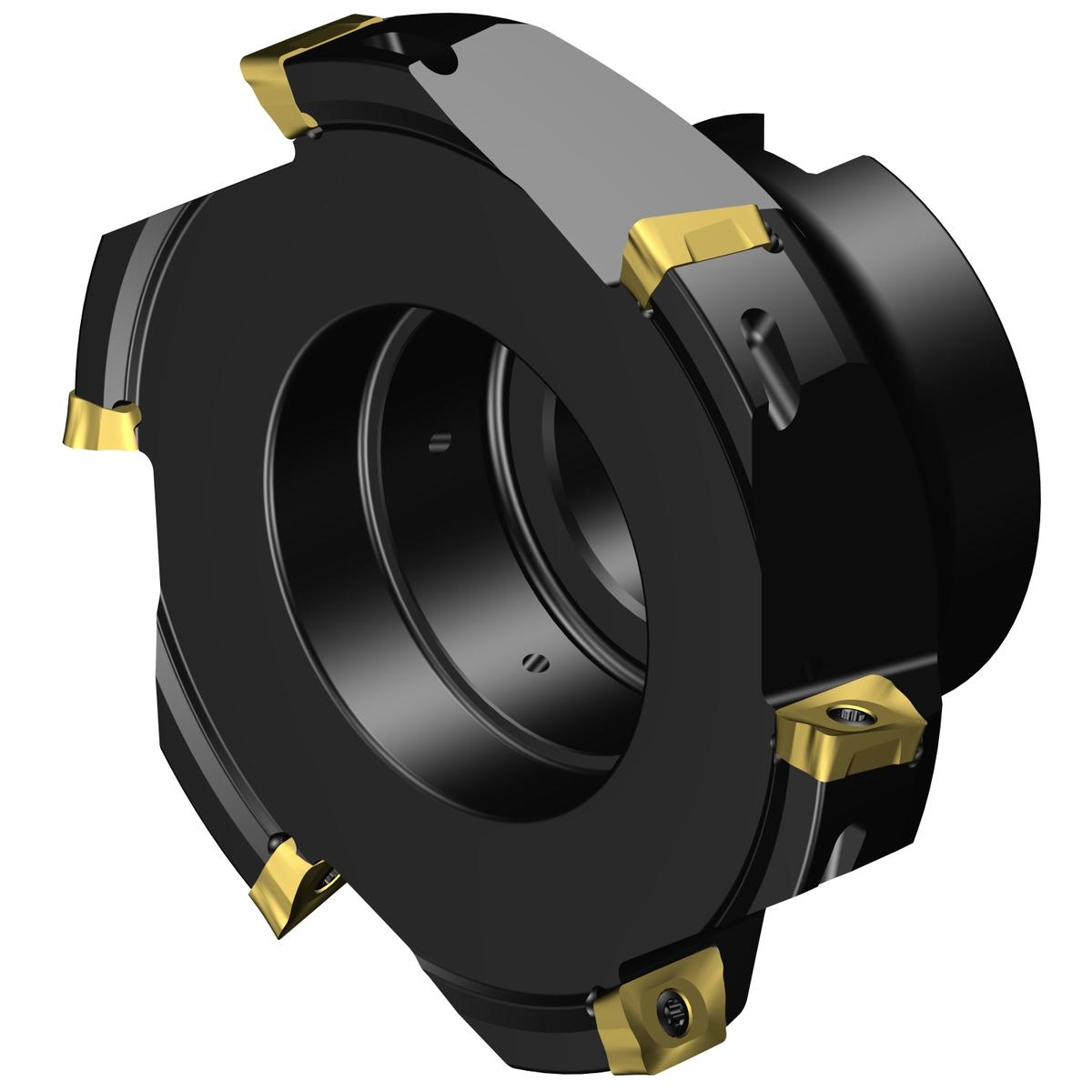

| Short Description | CoroMill® 390 square shoulder milling cutter |
| Unit Of Measure | Imperial |
| Cutting Diameter | 5 Inch |
| Shank Diameter | 1.5 Inch |
| ANSI Code | RA390-127R38-18L |
| Coolant Through | Yes |
| Center Cutting Capability | No |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Torque | 3 Nm |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Standard | B; ISO6462 |
| Cutting Pitch Differential | Yes |
| Damping Property | No |
| Country of Origin | United States |
| Base Item Number | 1003 |
| Max. Depth Of Cut | 0.04 Inch |
| Max. Depth Of Cut (Decimal) | 0.04 |
| Max. Depth Of Cut (Metric) | 1.1 |
| Max. Rotational Speed | 4600 1/min |
| Maximum Depth Of Cut (Inch) | 0.04 |
| Maximum Depth Of Cut (Metric) | 1.1 |
| Maximum Ramping Angle | 1.6 degrees |
| Number Of Inserts | 6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 5.183 LB |
