Sandvik Coromant
5740528
Sandvik Coromant 5740528
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiAlN |
| Thickness (Metric) | 6.35 |
| Thickness (Inch) | 0.25 |

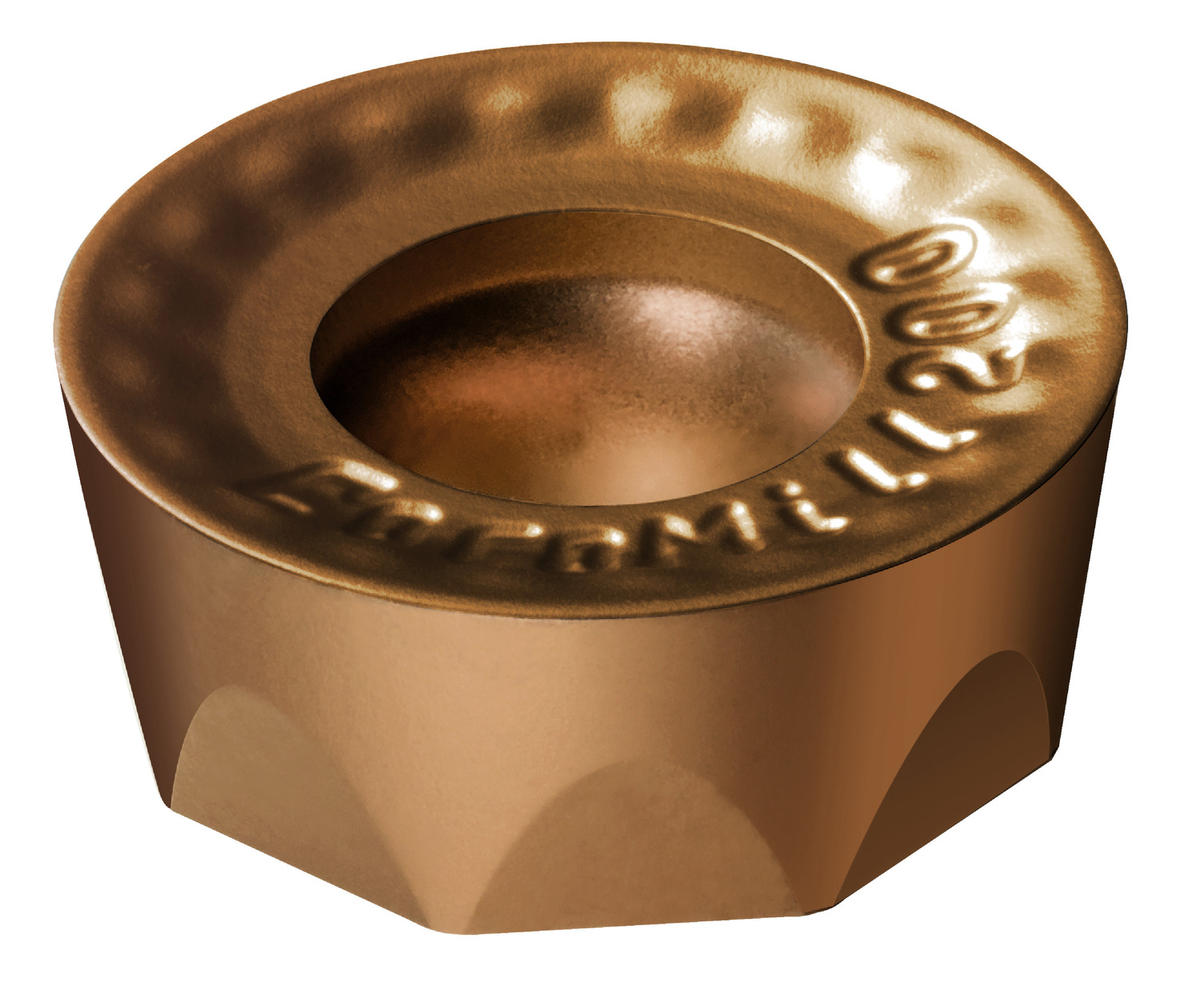

| Short Description | CoroMill® 200 insert for milling |
| Shape | Round |
| Style | RCKT |
| Unit Of Measure | Imperial |
| Country of Origin | United States |
| Series | CoroMill 200 |
| Size | 1906 |
| Grade | 1020 |
| Inscribed Circle Diameter | 0.75 Inch |
| Thickness | 0.25 Inch |
| Chip Breaker Type | KH |
| Inscribed Circle Diameter (Decimal) | 0.75 |
| Inscribed Circle Diameter (Metric) | 19.05 |
| ANSI Code | RCKT 19 06 00-KH 1020 |
| ISO Code | RCKT 19 06 00-KH 1020 |
| Hand of Insert | Neutral |
| Coner Radius (Inch) | 0.38 |
| Coner Radius (Metric) | 9.53 |
| Fixing Hole Diameter (Decimal) | 0.26 |
| Fixing Hole Diameter (Metric) | 6.5 |
| Coating Process Type | PVD |
| Operation Type | Heavy |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Application | Milling, General |
| ISO Material Classification | K |
| Base Item Number | 1005 |
| Insert Size | 1906 |
| Max. Depth Of Cut (Decimal) | 0.11 |
| Max. Depth Of Cut (Metric) | 2.79 |
| Maximum Depth Of Cut (Inch) | 0.11 |
| Maximum Depth Of Cut (Metric) | 2.79 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.042 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | RCKT |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | RCKT190600-KH1020 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RCKT 19 06 00-KH 1020 |
| Length Packed Product Imperial | 5.079 inch |
