Sandvik Coromant
5740698
Sandvik Coromant 5740698
Specifications
| Coating/Finish | TiCrN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 2.38 |
| Corner Radius (Metric) | 3 |
| Material | WC or Cermet |
| Size | 602 |
| Corner Radius (Inch) | 0.12 |
| Style | RCMT |
| Thickness (Inch) | 0.09 |

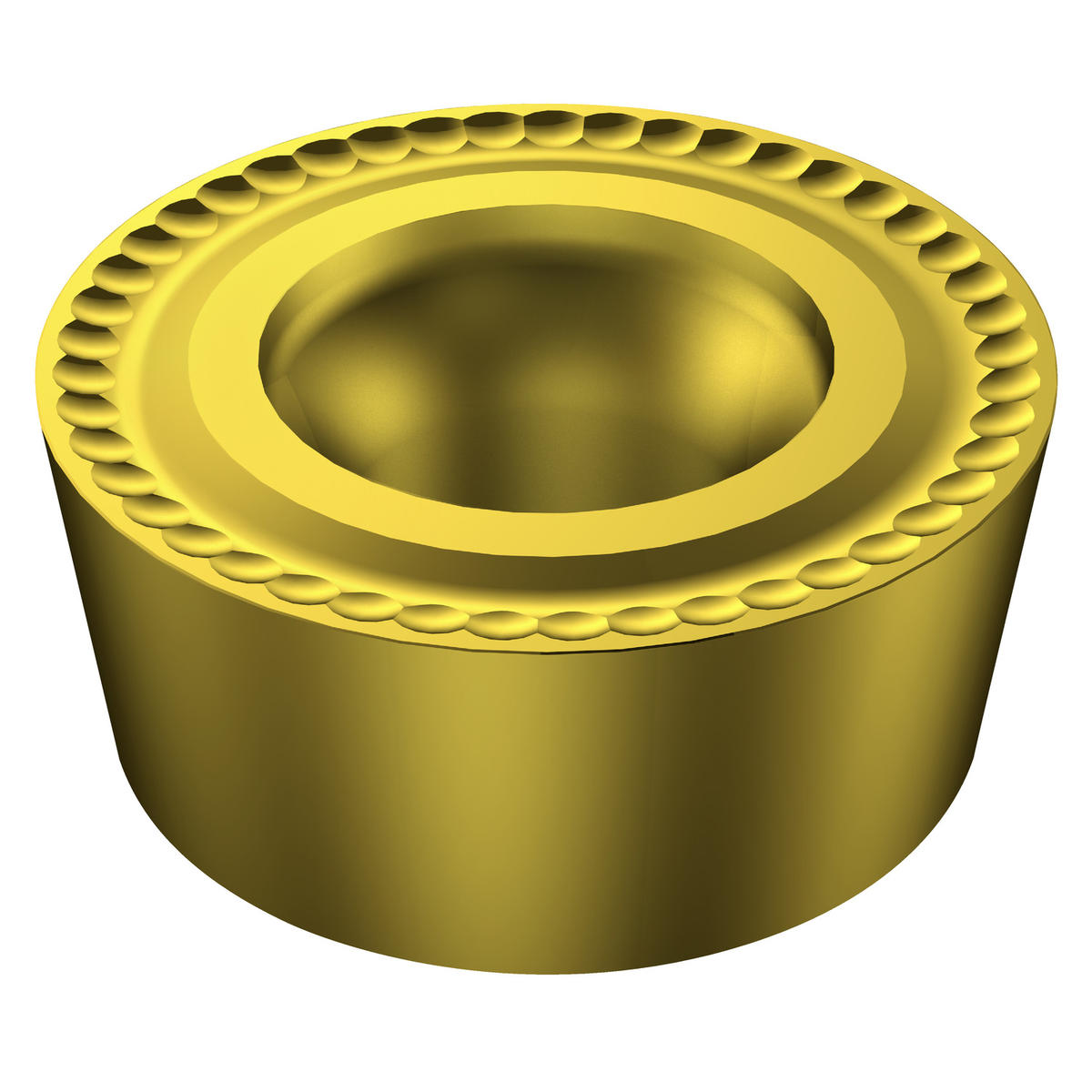

| Short Description | CoroTurn® 107 insert for turning |
| Grade | S05F |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 6 mm |
| Inscribed Circle Diameter (Decimal) | 0.24 |
| Inscribed Circle Diameter (Metric) | 6 |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.1 |
| Face Land Width (Decimal) | 0.004 |
| Face Land Angle | 0 degrees |
| Shape | Round |
| Country of Origin | India |
| Series | CoroTurn 107 |
| Chip Breaker Type | M0 |
| ANSI Code | RCMT 06 02 M0 S05F |
| ISO Code | RCMT 06 02 M0 S05F |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.11 |
| Fixing Hole Diameter (Metric) | 2.8 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | S |
| Base Item Number | 1053 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.002 LB |
| Height Packed Product Metric | 14 mm |
| Insert Style | RCMT |
| Height Packed Product Imperial | 0.551 inch |
| ISO Code (packed) | RCMT0602M0S05F |
| Insert Size | 0602 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RCMT 06 02 M0 S05F |
| Length Packed Product Imperial | 3.74 inch |
