Sandvik Coromant
5740838
Sandvik Coromant 5740838
Specifications
| Overall Length (Metric) | 127 |
|---|---|
| Overall Length (Inch) | 5 |
| Shank Width (Inch) | 1 |
| Shank Width (Metric) | 25.4 |
| Insert Style | R/LF123..B (INCH) |
| Base Item Number | 1073 |
| Max. Cutting Depth | 0.4 Inch |
| Max. Cutting Depth (Decimal) | 0.4 |
| Max. Cutting Depth (Metric) | 10.16 |
| Max. Overhang (Decimal) | 1.18 |
| Max. Overhang (Metric) | 30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.385 LB |

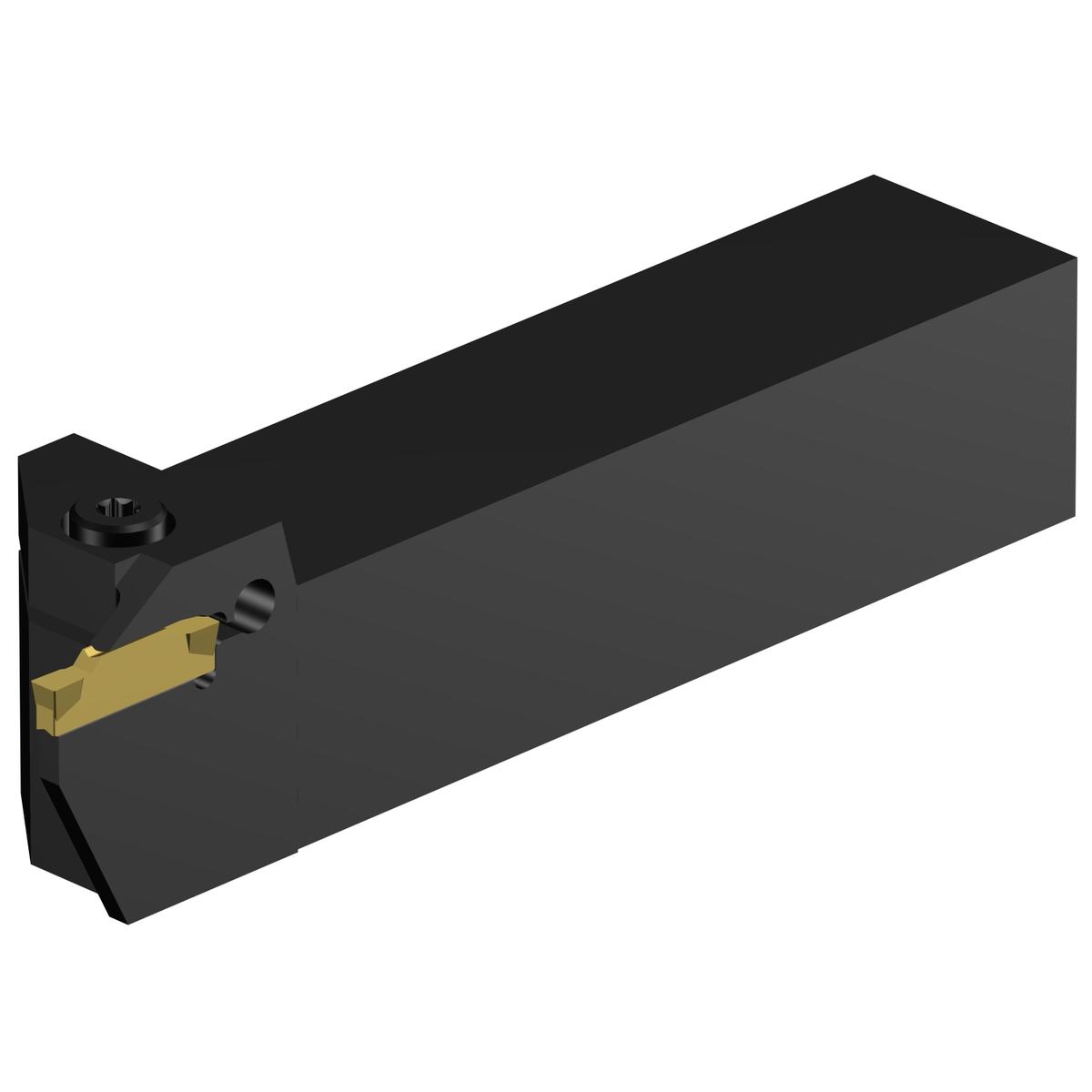

| Short Description | CoroCut® 1-2 shank tool for parting and grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height | 1 Inch |
| Shank Width | 1 Inch |
| Shank Height (Decimal) | 1 |
| Shank Height (Metric) | 25.4 |
| ANSI Code | RF123G040-16B |
| Coolant Through | No |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26.01 |
| Overall Height (Decimal) | 1 |
| Overall Height (Metric) | 25.4 |
| Insert Seat Size Code | G |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 3.5 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
