Sandvik Coromant
5740887
Sandvik Coromant 5740887
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Overall Length (Inch) | 6 |
| Shank Width (Inch) | 1.25 |
| Shank Width (Metric) | 31.75 |
| Insert Style | R/LF123..B (INCH) |
| Base Item Number | 1073 |
| Max. Cutting Depth | 0.4 Inch |
| Max. Cutting Depth (Decimal) | 0.4 |
| Max. Cutting Depth (Metric) | 10.16 |
| Max. Overhang (Decimal) | 1.14 |
| Max. Overhang (Metric) | 29.01 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.449 LB |

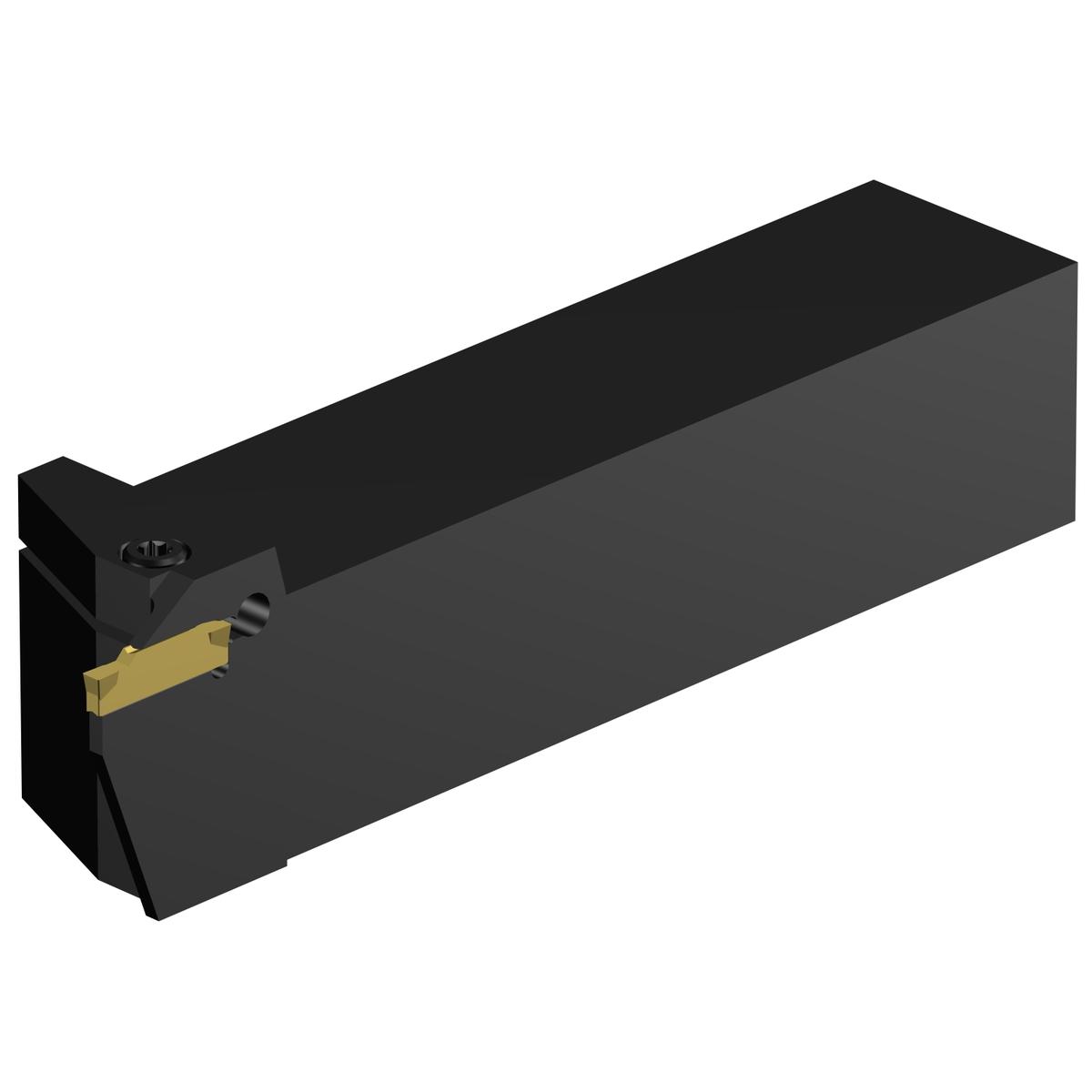

| Short Description | CoroCut® 1-2 shank tool for parting and grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | N123F2-0250-0002-CM |
| Shank Height | 1.25 Inch |
| Shank Width | 1.25 Inch |
| Shank Height (Decimal) | 1.25 |
| Shank Height (Metric) | 31.75 |
| ANSI Code | RF123F040-20B |
| Coolant Through | No |
| Overall Width (Decimal) | 1.3 |
| Overall Width (Metric) | 33 |
| Overall Height (Decimal) | 1.25 |
| Overall Height (Metric) | 31.75 |
| Insert Seat Size Code | F |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 3 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
