Sandvik Coromant
5740888
Sandvik Coromant 5740888
Specifications
| Overall Length (Metric) | 150 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 5.91 |
| Insert Style | R/LF123..B..B |

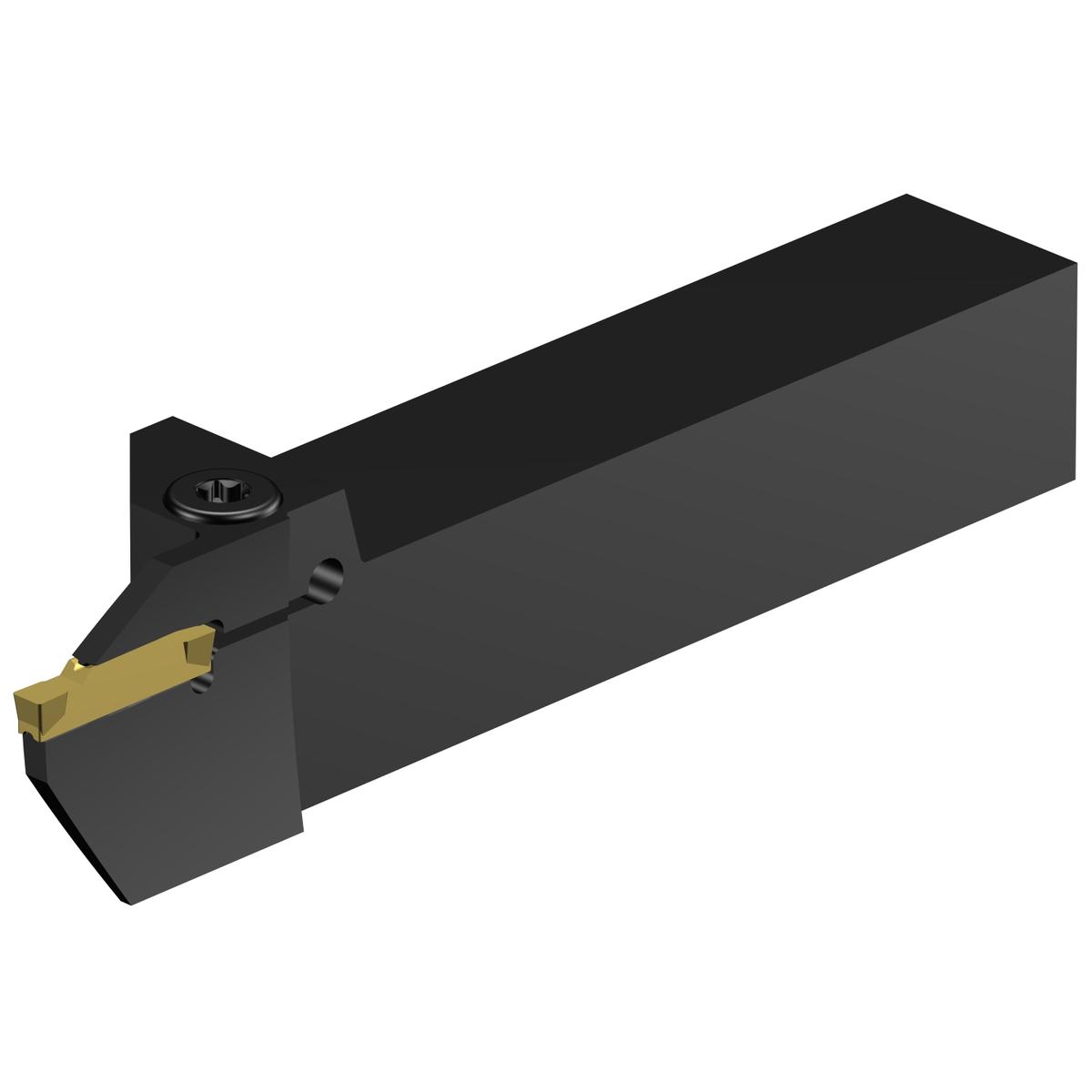

| Short Description | CoroCut® 1-2 shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Shank Width | 25 mm |
| Shank Width (Decimal) | 1.77 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 25 |
| Overall Height (Metric) | 25 |
| Overall Height (Decimal) | 0.98 |
| Overall Length | 150 mm |
| Insert Compatibility | N123H2-0400-0004-TF |
| ANSI Code | RF123H25-2525B-132BM |
| Coolant Through | No |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 26 |
| Shank Height (Decimal) | 0.98 |
| Clamping Type Code | Clamp |
| Torque | 5.3 Nm |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 9.06 |
| Max. Axial Groove Outside Diameter (Metric) | 230 |
| Max. Cutting Depth (Decimal) | 0.98 |
| Max. Cutting Depth (Metric) | 25 |
| Max. Overhang (Decimal) | 1.85 |
| Max. Overhang (Metric) | 47 |
| Min. Axial Groove Inside Diameter (Decimal) | 5.2 |
| Min. Axial Groove Inside Diameter (Metric) | 132 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.508 LB |
