Sandvik Coromant
5741002
Sandvik Coromant 5741002
Specifications
| Overall Length (Metric) | 177.8 |
|---|---|
| Overall Length (Inch) | 7 |
| Shank Width (Inch) | 1.25 |
| Shank Width (Metric) | 31.75 |
| Insert Style | R/LF123..B (INCH) |
| Base Item Number | 1073 |
| Max. Cutting Depth | 1.38 Inch |
| Max. Cutting Depth (Decimal) | 1.38 |
| Max. Cutting Depth (Metric) | 35.05 |
| Max. Overhang (Decimal) | 2.4 |
| Max. Overhang (Metric) | 60.96 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 2.646 LB |

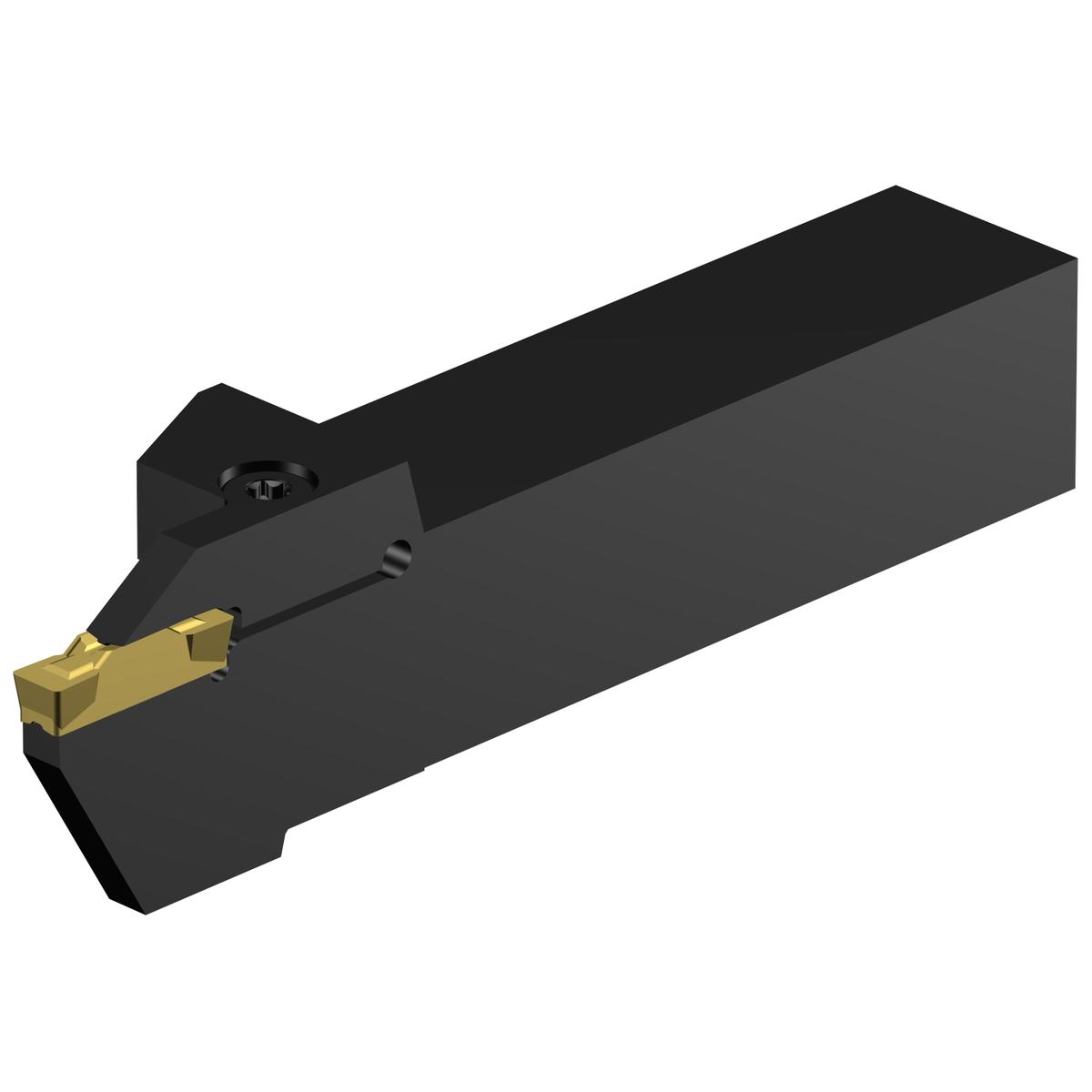

| Short Description | CoroCut® 1-2 shank tool for parting and grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | N123L2-0800-0008-TF |
| Shank Height | 1.25 Inch |
| Shank Width | 1.25 Inch |
| Shank Height (Decimal) | 1.25 |
| Shank Height (Metric) | 31.75 |
| ANSI Code | RF123L138-20BM |
| Coolant Through | No |
| Overall Width (Decimal) | 1.3 |
| Overall Width (Metric) | 33.02 |
| Overall Height (Decimal) | 1.25 |
| Overall Height (Metric) | 31.75 |
| Insert Seat Size Code | L |
| Workpiece Side Body Angle | 0 degrees |
| Clamping Type Code | Clamp |
| Torque | 7.5 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
