Sandvik Coromant
5741339
Sandvik Coromant 5741339
Specifications
| Overall Length (Metric) | 150 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 5.91 |
| Insert Style | R/LX123..B-045 (INCH) |

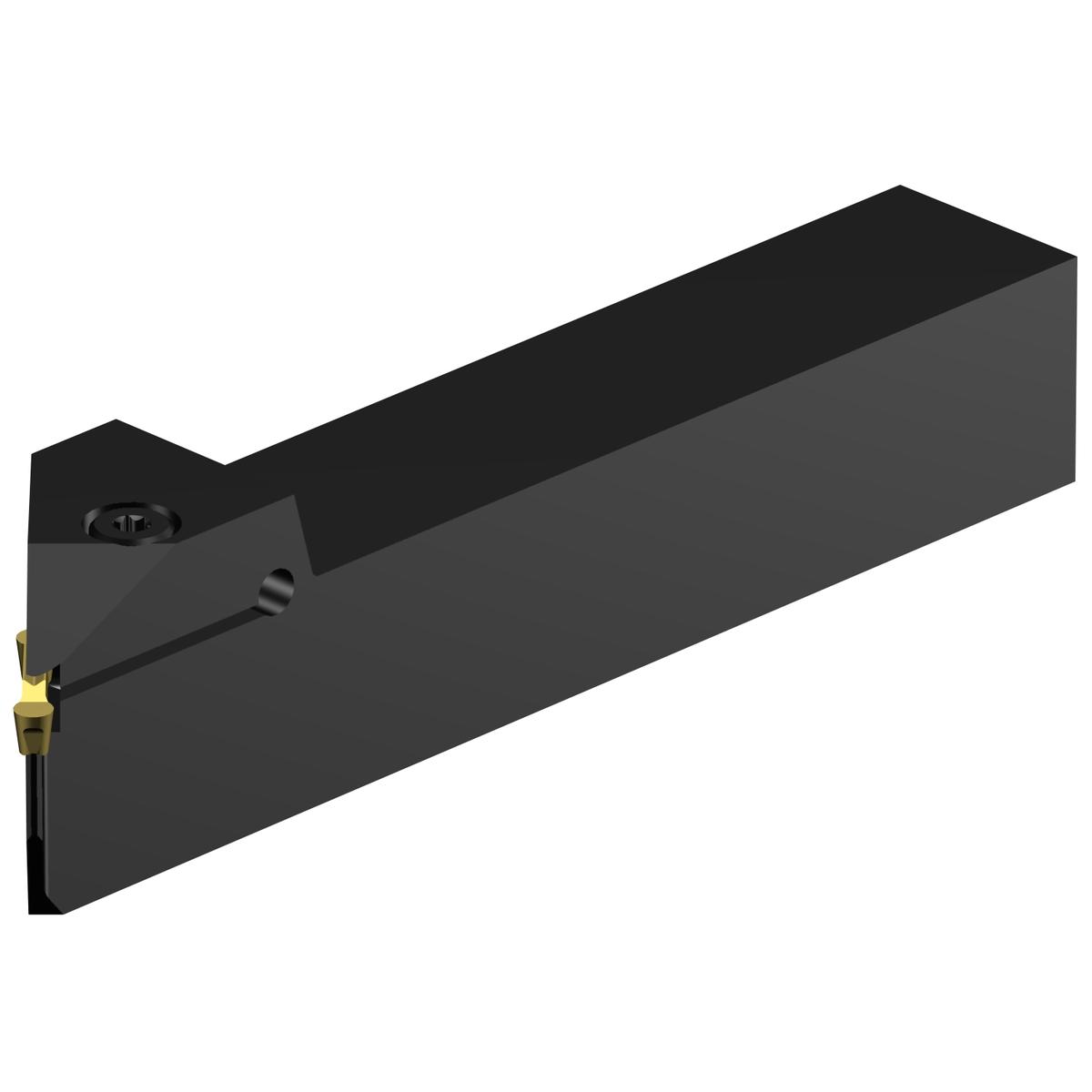

| Short Description | CoroCut® 1-2 shank tool for profiling |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 0.87 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Inclination Angle | 0 degrees |
| Usable Length (Metric) | 4 |
| Usable Length (Decimal) | 0.16 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 5.91 Inch |
| Insert Compatibility | N123G2-RM |
| ANSI Code | RX123G016-16B-045 |
| Coolant Through | No |
| Overall Width (Decimal) | 1.17 |
| Overall Width (Metric) | 29.8 |
| Shank Height (Decimal) | 1 |
| Clamping Type Code | Clamp |
| Torque | 4.5 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 45 degrees |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | India |
| Base Item Number | 1073 |
| Max. Overhang (Decimal) | 1.7 |
| Max. Overhang (Metric) | 43.2 |
| Maximum Ramping Angle | 45 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.587 LB |
