Sandvik Coromant
5741342

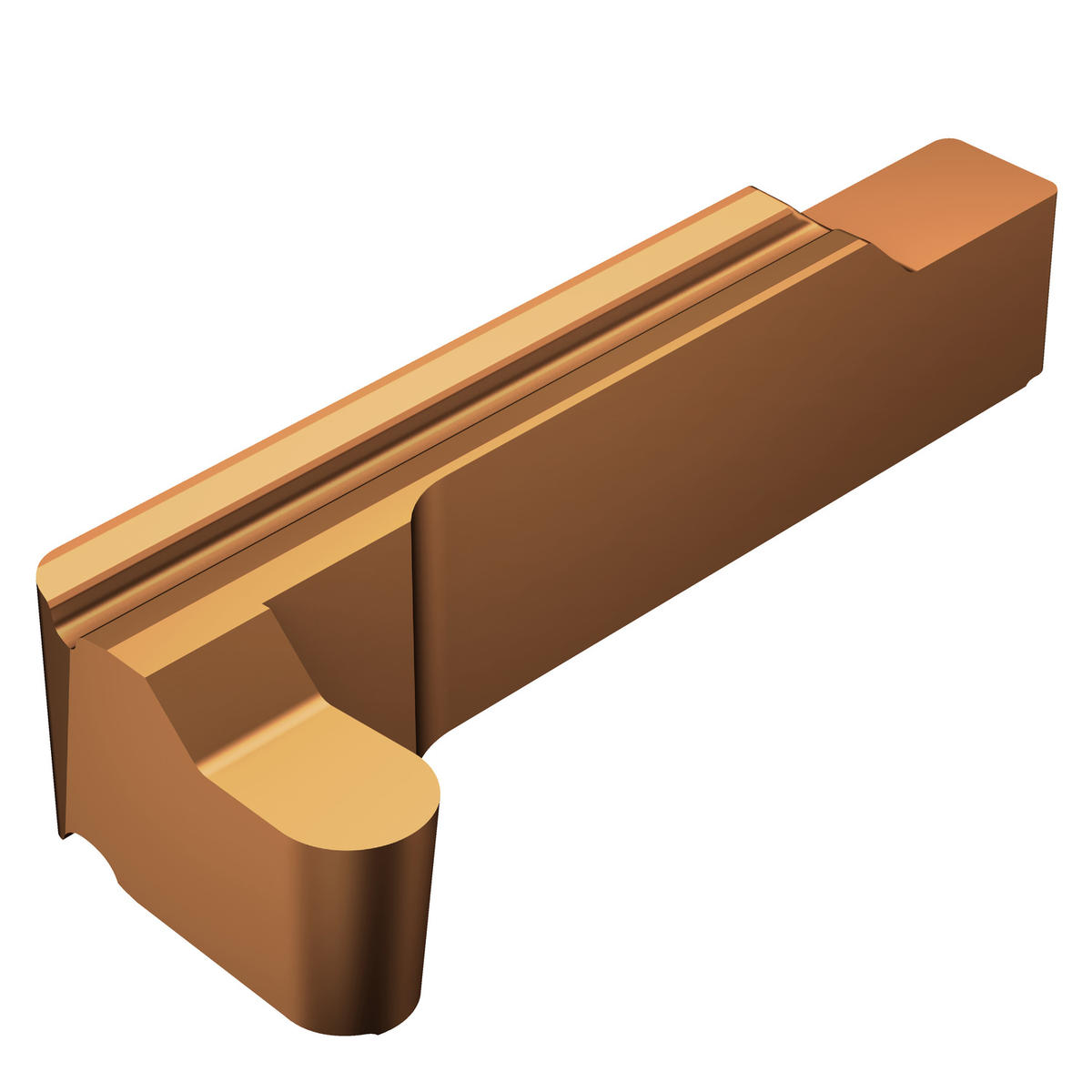

Sandvik Coromant 5741342
Specifications
| Series | CoroCut 1-2 |
|---|---|
| Corner Radius (Metric) | 2 |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.08 |
| Insert Size | LX1 |
| Coating/Finish | TiAlN+TiAlN |
| Short Description | CoroCutĀ® 1-2 insert for profiling |
| Style | RG123 |
| Grade | 1115 |
| Unit Of Measure | Metric |
| Cutting Width | 4 mm |
| Chip Breaker Type | RS |
| Cutting Width (Decimal) | 0.16 |
| Cutting Width (Metric) | 4 |
| ANSI Code | RG123L1-0400-0020-RS1115 |
| ISO Code | RG123L1-0400-0020-RS1115 |
| Hand of Insert | Right |
| Coating Process Type | PVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Insert Seat Size Code | LX |
| Corner Radius Lower Tolerance (Decimal) | -0.001969 |
| Corner Radius Lower Tolerance (Metric) | -0.05 |
| Corner Radius Upper Tolerance (Decimal) | 0.001969 |
| Corner Radius Upper Tolerance (Metric) | 0.05 |
| Rake Angle | 0 degrees |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 90 degrees |
| Cutting Width Lower Tolerance (Decimal) | -0.000787 |
| Cutting Width Lower Tolerance (Metric) | -0.02 |
| Cutting Width Upper Tolerance (Decimal) | 0.000787 |
| Cutting Width Upper Tolerance (Metric) | 0.02 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PMS |
| Country of Origin | Sweden |
| Axial Groove Inside Diameter Min. (Decimal) | 5.47 |
| Axial Groove Inside Diameter Min. (Metric) | 139 |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.16 |
| Max. Cutting Depth (Decimal) | 0.35 |
| Max. Cutting Depth (Metric) | 9 |
| Max. Depth Of Cut (Decimal) | 0.07 |
| Max. Depth Of Cut (Metric) | 1.8 |
| Maximum Depth Of Cut (Inch) | 0.07 |
| Maximum Depth Of Cut (Metric) | 1.8 |
| Min. Bore Diameter (Decimal) | 2.44 |
| Min. Bore Diameter (Metric) | 62 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.054 LB |
