Sandvik Coromant
5741393

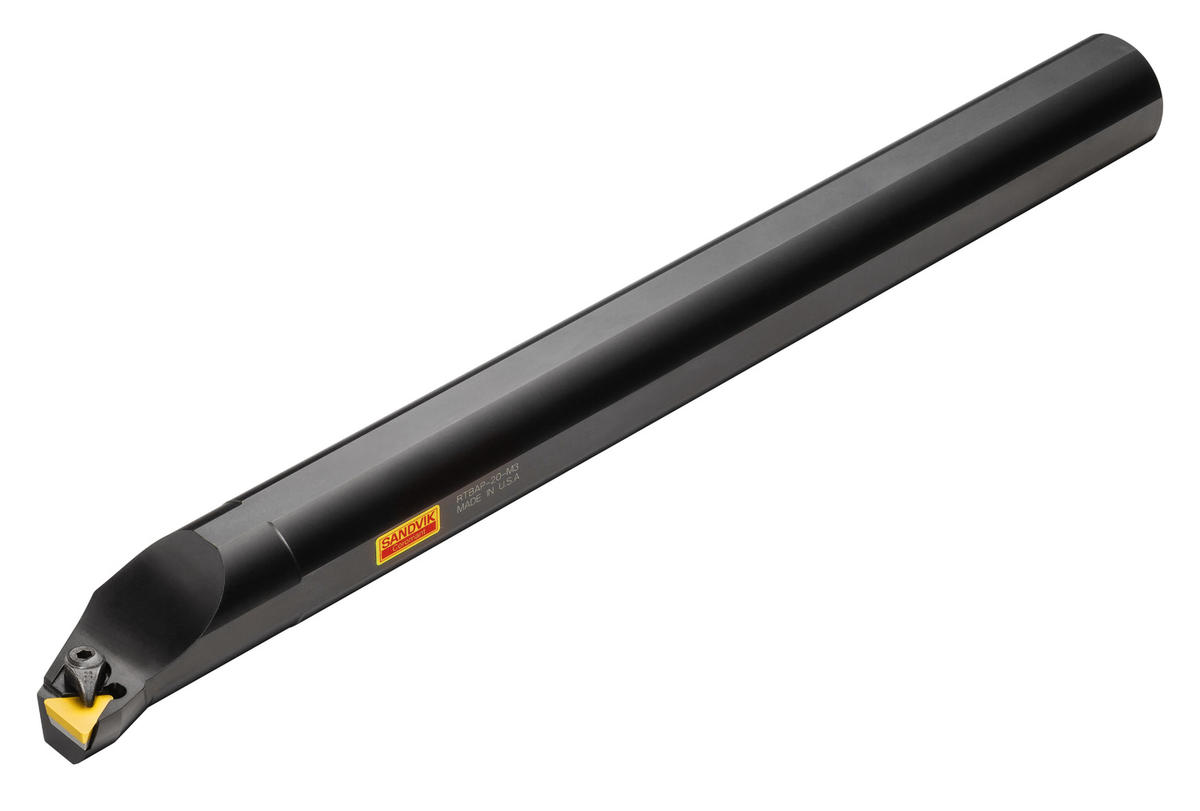

Sandvik Coromant 5741393
Specifications
| Minimum Bore Diameter (Metric) | 16 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.63 |
| Shank Diameter (Metric) | 12.7 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 139.95 |
| Shank Diameter (Inch) | 0.5 |
| Overall Length (Inch) | 5.51 |
| Short Description | T-Max® S boring bar for turning |
| Unit Of Measure | Imperial |
| Series | T-Max S |
| Shank Height (Metric) | 11.68 |
| Shank Height (Decimal) | 0.46 |
| Orthogonal Rake Angle | 6 degrees |
| Overall Length | 5.51 Inch |
| Shank Diameter | 0.5 Inch |
| Coolant Through | No |
| Tool Lead Angle | 0 degrees |
| ANSI Code | RTBAP 8 1.8 |
| Body Material | Steel |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 90 degrees |
| Body Diameter (Decimal) | 0.5 |
| Body Diameter (Metric) | 12.7 |
| Overall Width (Decimal) | 0.35 |
| Overall Width (Metric) | 8.99 |
| Inclination Angle | -6 degrees |
| Clamping Type Code | Clamp |
| Torque | 0.9 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Coolant Exit Style Code | 0: No Coolant Exit |
| Country of Origin | United States |
| Base Item Number | 1057 |
| Max. Overhang (Decimal) | 2 |
| Max. Overhang (Metric) | 50.8 |
| Maximum Ramping Angle | 0 degrees |
| Min Bore Diameter | 0.63 Inch |
| Min. Overhang (Decimal) | 1 |
| Min. Overhang (Metric) | 25.4 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.309 LB |
| Height Packed Product Metric | 25 mm |
| Height Packed Product Imperial | 0.984 inch |
| ISO Code (packed) | RTBAP81.8 |
| Length Packed Product Metric | 142 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RTBAP 8 1.8 |
| Length Packed Product Imperial | 5.591 inch |
