Sandvik Coromant

5741485

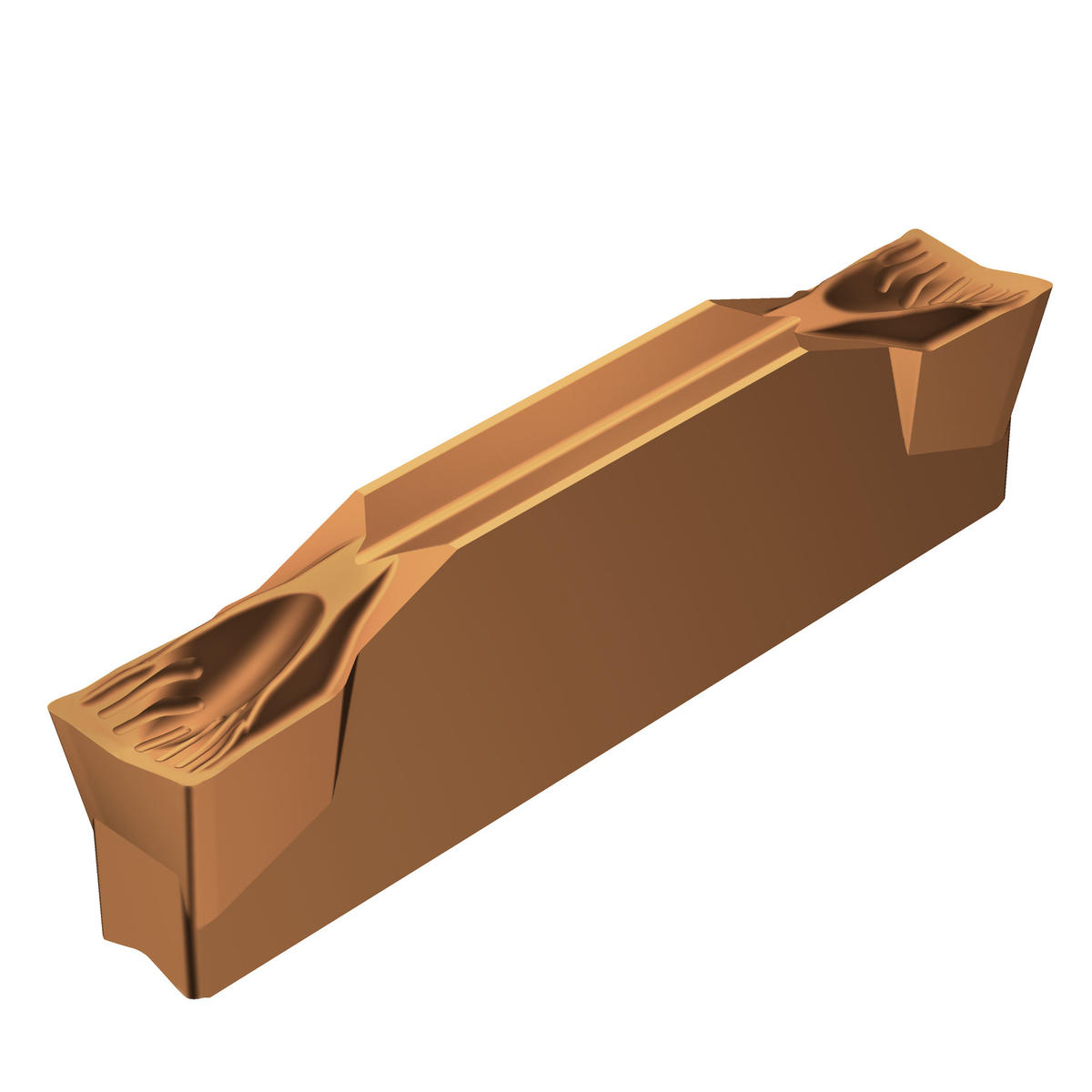

Sandvik Coromant 5741485

Specifications

Coating/FinishTiAlN+TiAlN
SeriesCoroCut 1-2
Insert SizeF2
MaterialWC or Cermet
Short DescriptionCoroCutĀ® 1-2 insert for parting
Unit Of MeasureMetric
StyleR123
Grade1145
Cutting Width2.5 mm
Chip Breaker TypeCF
Cutting Width (Decimal)0.098
Cutting Width (Metric)2.5
ANSI CodeR123F2-0250-0501-CF 1145
ISO CodeR123F2-0250-0501-CF 1145
Insert Seat Size CodeF
Hand of InsertRight
Coating Process TypePVD
Operation TypeFinishing
Mounting StyleClamp
Substrate TypeCarbide
Number of Cutting Edges2
Clearance Angle Major7 degrees
Machine Side Body Angle0 degrees
Major Right Hand Cutting Edge Angle5 degrees
Insert Gauge Length (Decimal)0.78
Insert Gauge Length (Metric)19.85
Corner Radius Left (Decimal)0.006
Corner Radius Left (Metric)0.15
Corner Radius Right (Decimal)0.006
Corner Radius Right (Metric)0.15
Corner Radius Lower Tolerance (Decimal)-0.003937
Corner Radius Lower Tolerance (Metric)-0.1
Corner Radius Upper Tolerance (Decimal)0.003937
Corner Radius Upper Tolerance (Metric)0.1
Cutting Width Upper Tolerance (Decimal)0.003937
Cutting Width Upper Tolerance (Metric)0.1
ApplicationTurning, Parting/Grooving
ISO Material ClassificationPMS
Country of OriginSweden
Base Item Number1073
Cutting Width (Inch)0.098
Max. Cutting Depth (Decimal)0.72
Max. Cutting Depth (Metric)18.4
Product TypeIndustrial Supplies
Unit of MeasureMetric
Weight0.007 LB
Height Packed Product Metric13.5 mm
Insert StyleR123
Height Packed Product Imperial0.531 inch
ISO Code (packed)R123F2-0250-0501-CF1145
Length Packed Product Metric129 mm
Life Cycle State20
ISO Code (unpacked)R123F2-0250-0501-CF 1145
Length Packed Product Imperial5.079 inch
