Sandvik Coromant
5742011

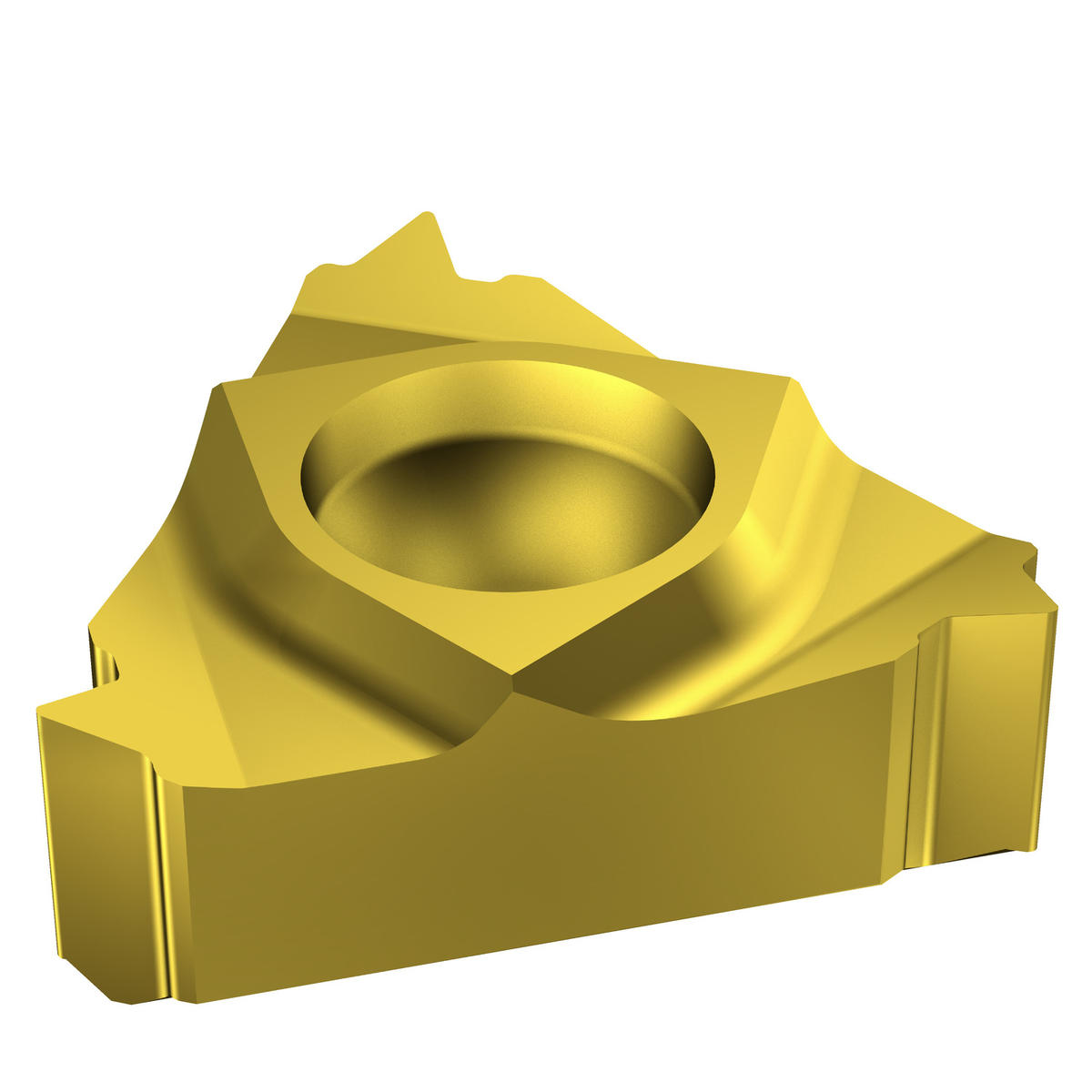

Sandvik Coromant 5742011
Specifications
| Insert Style | R166.0 |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiN |
| Short Description | T-Max® U-Lock insert for thread turning |
| Unit Of Measure | Metric |
| Grade | 1020 |
| Series | T-Max U-Lock |
| Size | 11 |
| Thread Type | Internal |
| Thread Form | NPT60 |
| Inscribed Circle Diameter | 6.35 mm |
| Threads per Inch | 14 |
| Thread Profile Type | Full |
| Thickness | 3.18 mm |
| Chip Breaker Type | F |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Thickness (Decimal) | 0.13 |
| Thickness (Metric) | 3.18 |
| ANSI Code | R166.0L-11NT01F140 1020 |
| ISO Code | R166.0L-11NT01F140 1020 |
| Hand of Insert | Right |
| Fixing Hole Diameter (Decimal) | 0.09 |
| Fixing Hole Diameter (Metric) | 2.38 |
| Coating Process Type | PVD |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Theoretical Thread Height (Decimal) | 0.06 |
| Theoretical Thread Height (Metric) | 1.46 |
| Thread Height Difference (Decimal) | 0.004 |
| Thread Height Difference (Metric) | 0.09 |
| Profile Distance EX (Decimal) | 0.037 |
| Profile Distance EX (Metric) | 0.95 |
| Profile Distance EY (Decimal) | 0.026 |
| Profile Distance EY (Metric) | 0.67 |
| Taper Gradient | 0.063 |
| Application | Turning, Threading |
| ISO Material Classification | PMKNSH |
| Country of Origin | Sweden |
| Base Item Number | 1062 |
| number of Teeth | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.004 LB |
| Height Packed Product Metric | 11 mm |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R166.0L-11NT01F1401020 |
| Insert Size | 11 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R166.0L-11NT01F140 1020 |
| Length Packed Product Imperial | 3.74 inch |
