Sandvik Coromant
5742014

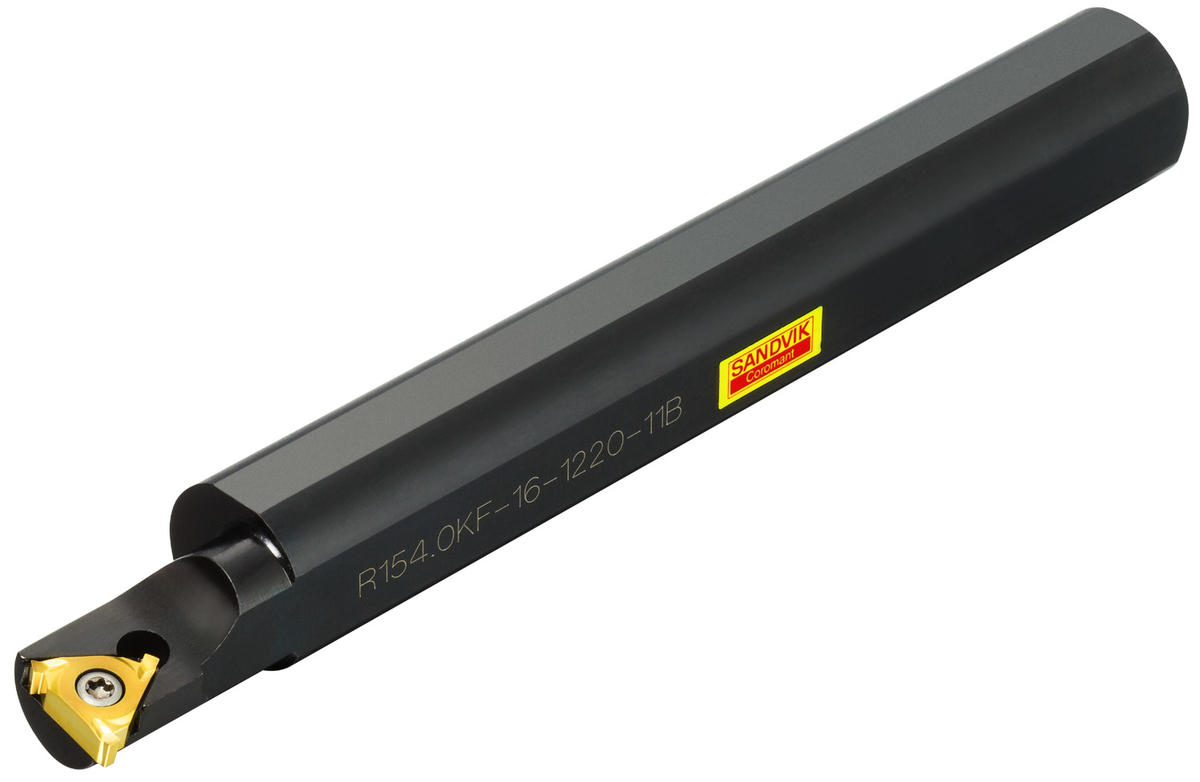

Sandvik Coromant 5742014
Specifications
| Minimum Bore Diameter (Metric) | 16 |
|---|---|
| Minimum Bore Diameter (Inch) | 0.63 |
| Shank Diameter (Metric) | 15.88 |
| Direction Of Hand | Right |
| Overall Length (Metric) | 152.4 |
| Shank Diameter (Inch) | 0.63 |
| Overall Length (Inch) | 6 |
| Short Description | T-Max® U-Lock boring bar for thread turning |
| Unit Of Measure | Imperial |
| Series | T-Max U-Lock |
| Shank Height (Metric) | 14.3 |
| Shank Height (Decimal) | 0.56 |
| Overall Length | 6 Inch |
| Shank Diameter | 0.63 Inch |
| Coolant Through | No |
| ANSI Code | R166.0KF-D10-D1016-2B |
| Usable Length (Decimal) | 1.03 |
| Usable Length (Metric) | 26.1 |
| Machine Side Body Angle | 0 degrees |
| Axial Clearance Angle | -15 degrees |
| Body Diameter (Decimal) | 0.63 |
| Body Diameter (Metric) | 15.88 |
| Overall Width (Decimal) | 0.41 |
| Overall Width (Metric) | 10.49 |
| Clamping Type Code | Screw/Clamp |
| Thread Helix Correction Angle | 1 degrees |
| Torque | 0.9 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Country of Origin | United States |
| Base Item Number | 1062 |
| Max. Overhang (Decimal) | 1.88 |
| Max. Overhang (Metric) | 47.63 |
| Min Bore Diameter | 0.63 Inch |
| Min. Overhang (Decimal) | 1.03 |
| Min. Overhang (Metric) | 26.16 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.397 LB |
| Height Packed Product Metric | 26 mm |
| Height Packed Product Imperial | 1.024 inch |
| ISO Code (packed) | R166.0KF-D10-D1016-2B |
| Length Packed Product Metric | 154 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R166.0KF-D10-D1016-2B |
| Length Packed Product Imperial | 6.063 inch |
