Sandvik Coromant

5742041

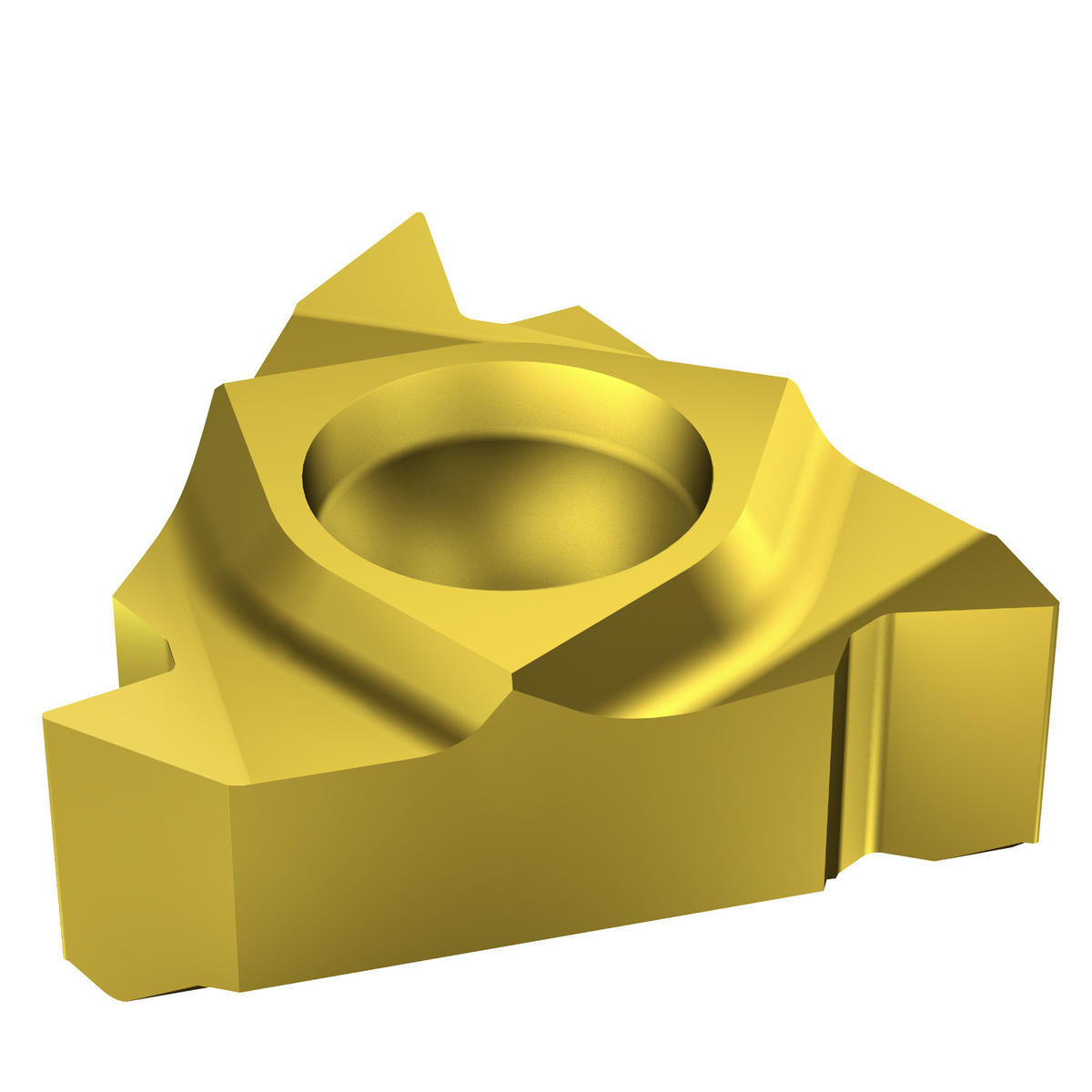

Sandvik Coromant 5742041

Specifications

Insert StyleR166.0
MaterialWC or Cermet
Coating/FinishTiAlN+TiN
Short DescriptionT-Max® U-Lock insert for thread turning
Unit Of MeasureMetric
Grade4125
SeriesT-Max U-Lock
Size11
Thread TypeInternal
Thread FormVP60
Thread Pitch1 to 2 mm
Inscribed Circle Diameter6.35 mm
Threads per Inch12 to 24
Thread Profile TypePartial
Thickness3.18 mm
Chip Breaker TypeA
Thread Pitch (Decimal)0.039 to 0.079
Thread Pitch (Metric)1 to 2
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Thickness (Decimal)0.13
Thickness (Metric)3.18
ANSI CodeR166.0L-11VM01-001 4125
ISO CodeR166.0L-11VM01-001 4125
Hand of InsertRight
Corner Radius (Decimal)0.002
Corner Radius (Metric)0.06
Fixing Hole Diameter (Decimal)0.11
Fixing Hole Diameter (Metric)2.8
Coating Process TypePVD
Mounting StyleScrew/Clamp
Substrate TypeCarbide
Number of Cutting Edges3
Theoretical Thread Height (Decimal)0.06
Theoretical Thread Height (Metric)1.45
Thread Height Difference (Decimal)0.002
Thread Height Difference (Metric)0.06
Profile Distance EX (Decimal)0.035
Profile Distance EX (Metric)0.9
Profile Distance EY (Decimal)0.027
Profile Distance EY (Metric)0.68
ApplicationTurning, Threading
ISO Material ClassificationPMKNSH
Country of OriginSweden
Base Item Number1062
number of Teeth1
Product TypeIndustrial Supplies
Unit of MeasureMetric
Weight0.003 LB
Height Packed Product Metric11 mm
Height Packed Product Imperial0.433 inch
ISO Code (packed)R166.0L-11VM01-0014125
Insert Size11
Length Packed Product Metric95 mm
Life Cycle State20
ISO Code (unpacked)R166.0L-11VM01-001 4125
Length Packed Product Imperial3.74 inch
