Sandvik Coromant
5742298

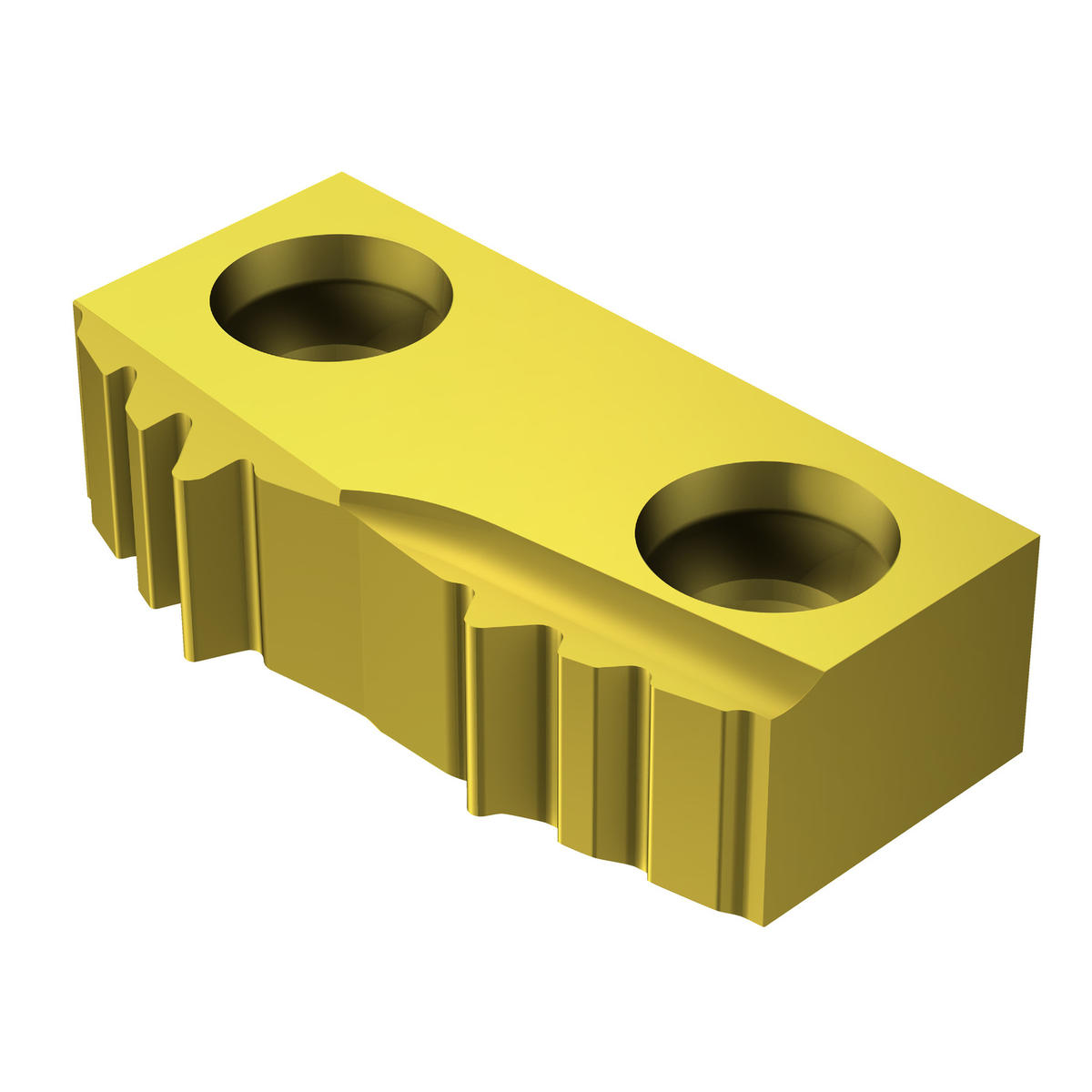

Sandvik Coromant 5742298
Specifications
| Insert Style | R166.39 |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiAlN+TiN |
| Short Description | T-Max® Twin-Lock insert for thread turning |
| Unit Of Measure | Metric |
| Grade | 4125 |
| Series | T-Max Twin-Lock |
| Size | 24 |
| Thread Type | External |
| Thread Form | APR60 |
| Threads per Inch | 10 |
| Thread Profile Type | Full |
| Thickness | 6.35 mm |
| Chip Breaker Type | A |
| Thickness (Decimal) | 0.25 |
| Thickness (Metric) | 6.35 |
| ANSI Code | R166.39G-24RD03-100 4125 |
| ISO Code | R166.39G-24RD03-100 4125 |
| Hand of Insert | Right |
| Fixing Hole Diameter (Decimal) | 0.18 |
| Fixing Hole Diameter (Metric) | 4.68 |
| Coating Process Type | PVD |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Theoretical Thread Height (Decimal) | 0.07 |
| Theoretical Thread Height (Metric) | 1.76 |
| Thread Height Difference (Decimal) | 0.014 |
| Thread Height Difference (Metric) | 0.36 |
| Profile Distance EX (Decimal) | 0.27 |
| Profile Distance EX (Metric) | 6.87 |
| Profile Distance EY (Decimal) | 0.506 |
| Profile Distance EY (Metric) | 12.87 |
| Taper Gradient | 0.063 |
| Application | Turning, Threading |
| ISO Material Classification | PMKNS |
| Country of Origin | Sweden |
| Base Item Number | 1063 |
| number of Teeth | 3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.042 LB |
| Height Packed Product Metric | 18 mm |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | R166.39G-24RD03-1004125 |
| Insert Size | 24 |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R166.39G-24RD03-100 4125 |
| Length Packed Product Imperial | 5.827 inch |
