Sandvik Coromant
5742581

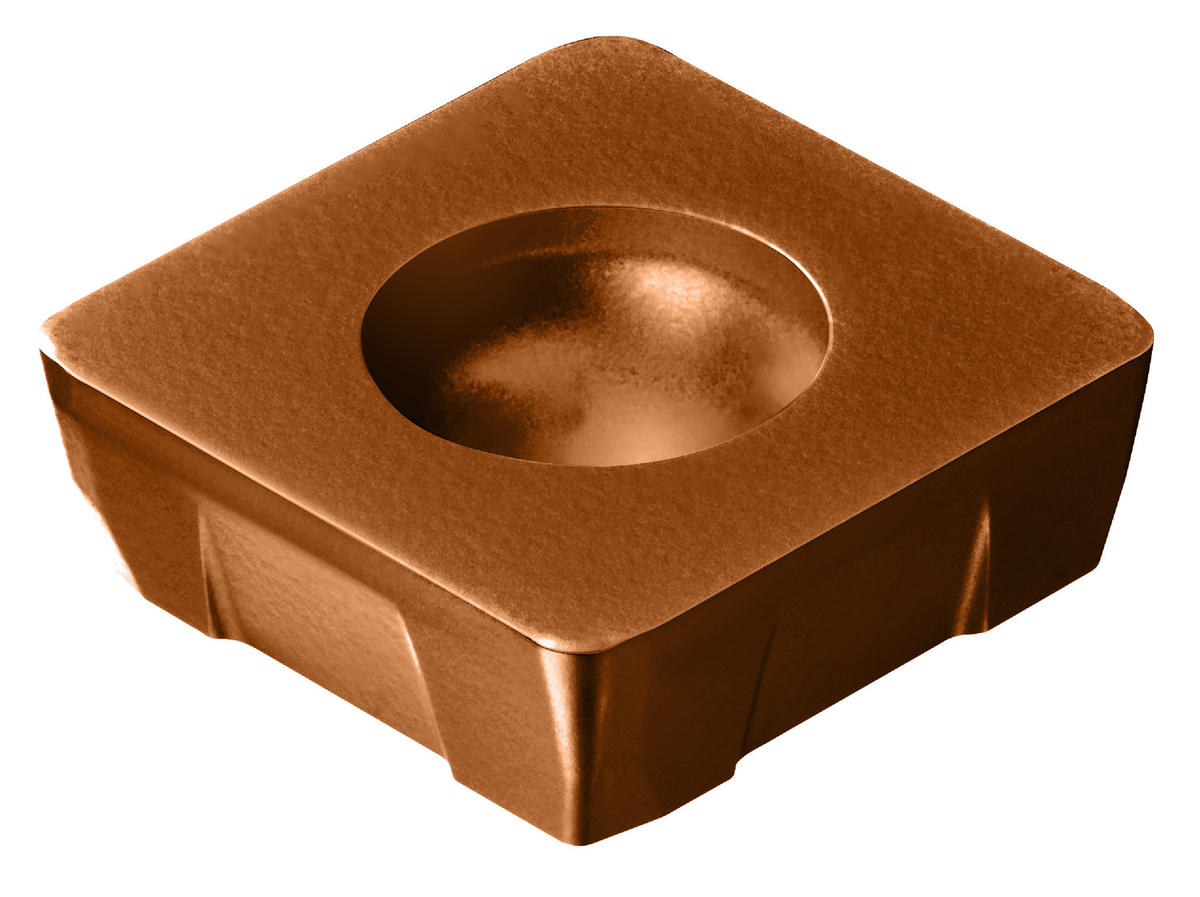

Sandvik Coromant 5742581
Specifications
| Material | WC or Cermet |
|---|---|
| Corner Radius (Metric) | 2.5 |
| Corner Radius (Inch) | 0.1 |
| Coating/Finish | TiAlN |
| Thickness (Metric) | 4 |
| Thickness (Inch) | 0.16 |
| Short Description | CoroMill® 210 insert for milling |
| Shape | Square |
| Style | R210 |
| Unit Of Measure | Metric |
| Country of Origin | United States |
| Series | CoroMill 210 |
| Size | 904 |
| Grade | 1020 |
| Inscribed Circle Diameter | 9.4 mm |
| Thickness | 4 mm |
| Chip Breaker Type | KM |
| Length (Decimal) | 0.24 |
| Inscribed Circle Diameter (Decimal) | 0.37 |
| Inscribed Circle Diameter (Metric) | 9.4 |
| ANSI Code | R210-09 04 12M-KM 1020 |
| ISO Code | R210-09 04 12M-KM 1020 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.04 |
| Coner Radius (Metric) | 1 |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.2 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.03 |
| Wiper Edge Length (Metric) | 0.77 |
| Major Cutting Edge Angle | 10 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Application | Milling, General |
| ISO Material Classification | K |
| Base Item Number | 1007 |
| Insert Size | 0904 |
| Length | 6.2 mm |
| Max. Depth Of Cut (Decimal) | 0.05 |
| Max. Depth Of Cut (Metric) | 1.2 |
| Maximum Depth Of Cut (Inch) | 0.05 |
| Maximum Depth Of Cut (Metric) | 1.2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.008 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | R210 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R210-090412M-KM1020 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R210-09 04 12M-KM 1020 |
| Length Packed Product Imperial | 3.74 inch |
| EAN Code | 12165230 |
