Sandvik Coromant
5742725

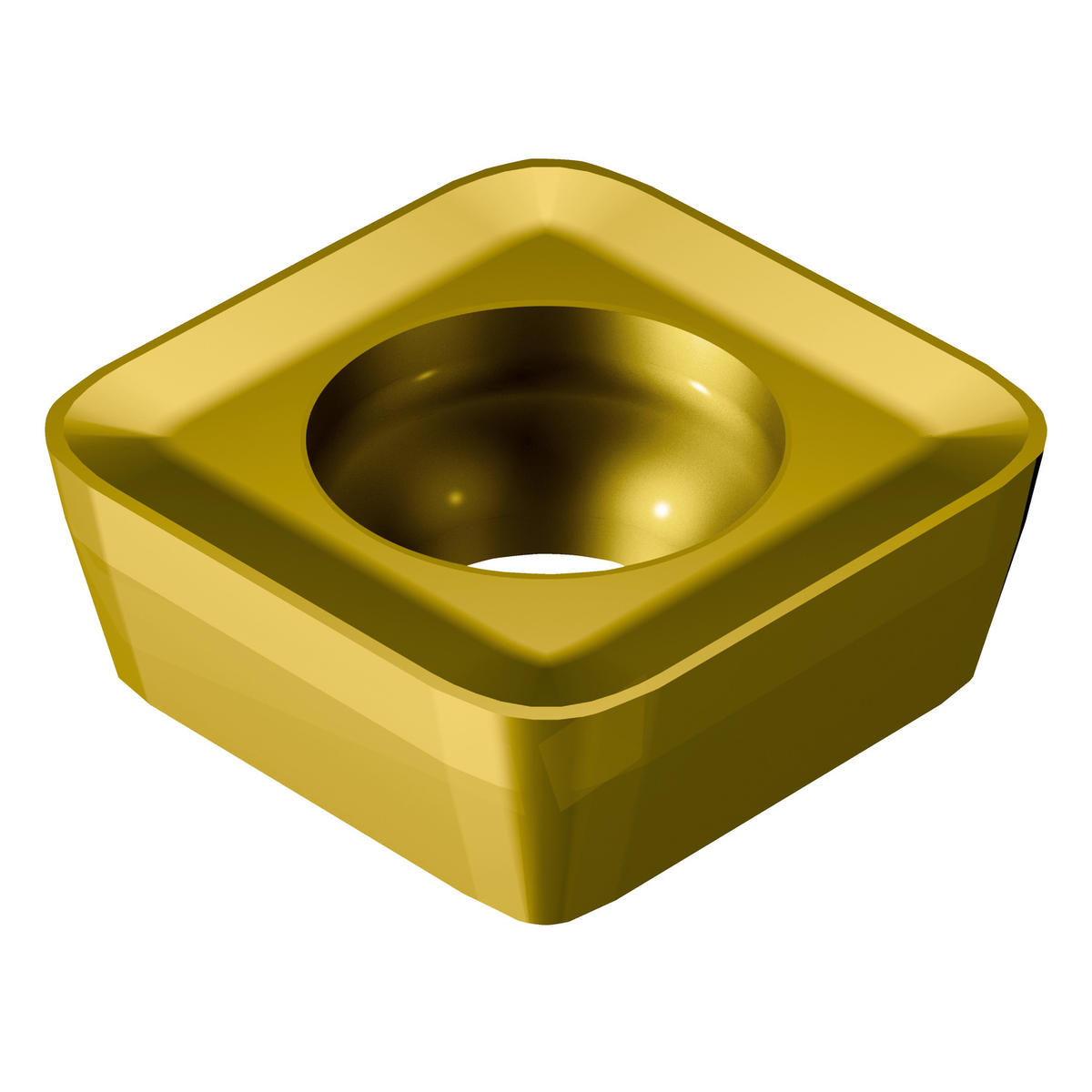

Sandvik Coromant 5742725
Specifications
| Material | WC or Cermet |
|---|---|
| Corner Radius (Metric) | 2.5 |
| Corner Radius (Inch) | 0.1 |
| Coating/Finish | TiAlN+TiN |
| Thickness (Metric) | 4.5 |
| Thickness (Inch) | 0.18 |
| Short Description | CoroMill® 210 insert for milling |
| Shape | Square |
| Style | R210 |
| Unit Of Measure | Metric |
| Country of Origin | Japan |
| Series | CoroMill 210 |
| Size | 904 |
| Grade | 2030 |
| Inscribed Circle Diameter | 9.5 mm |
| Thickness | 4.5 mm |
| Chip Breaker Type | MM |
| Length (Decimal) | 0.23 |
| Inscribed Circle Diameter (Decimal) | 0.37 |
| Inscribed Circle Diameter (Metric) | 9.5 |
| ANSI Code | R210-09 04 14E-MM 2030 |
| ISO Code | R210-09 04 14E-MM 2030 |
| Hand of Insert | Neutral |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.4 |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.2 |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.03 |
| Wiper Edge Length (Metric) | 0.66 |
| Major Cutting Edge Angle | 10 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Radius (Decimal) | 1.97 |
| Wiper Edge Radius (Metric) | 50 |
| Application | Milling, General |
| ISO Material Classification | PMS |
| Base Item Number | 1007 |
| Insert Size | 0904 |
| Length | 5.77 mm |
| Max. Depth Of Cut (Decimal) | 0.05 |
| Max. Depth Of Cut (Metric) | 1.2 |
| Maximum Depth Of Cut (Inch) | 0.05 |
| Maximum Depth Of Cut (Metric) | 1.2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.012 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | R210 |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | R210-090414E-MM2030 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R210-09 04 14E-MM 2030 |
| Length Packed Product Imperial | 3.74 inch |
