Sandvik Coromant
5742991

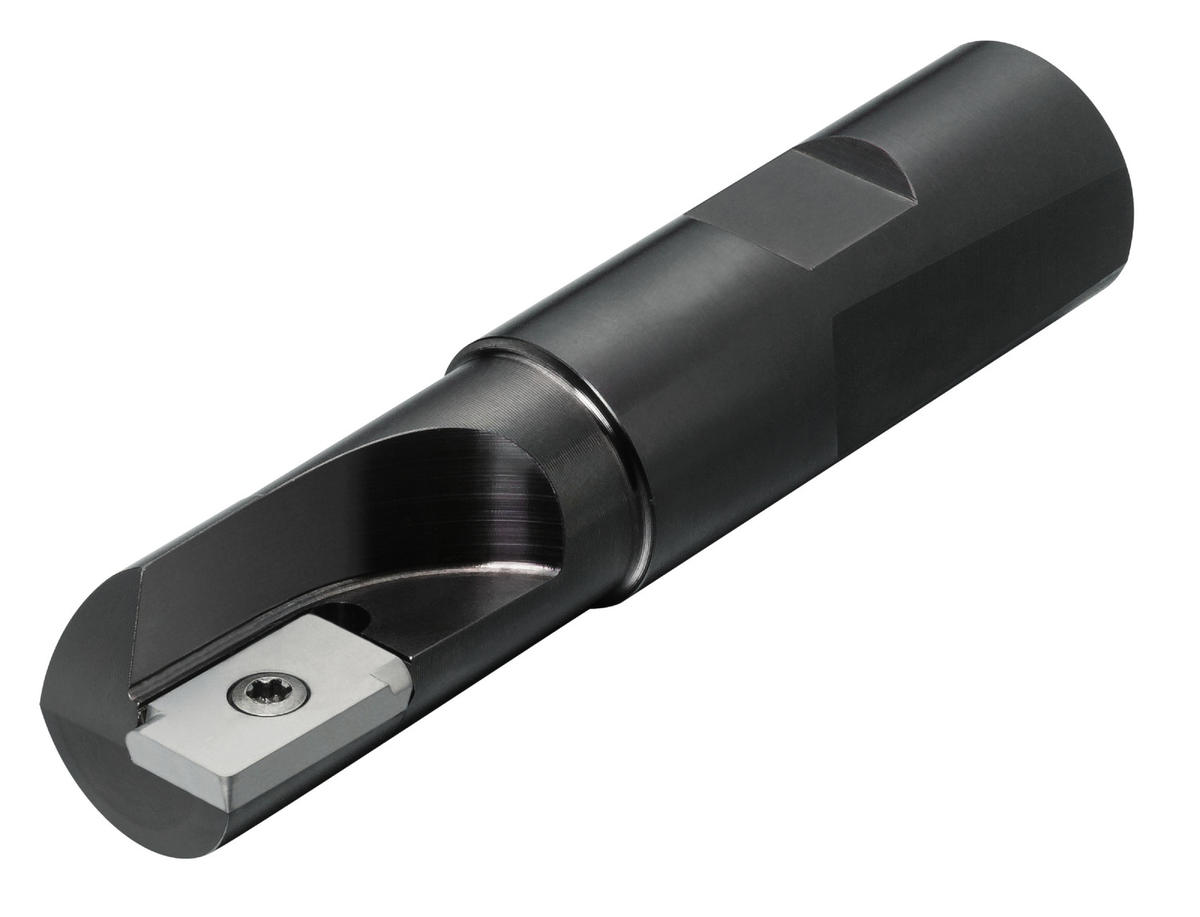

Sandvik Coromant 5742991
Specifications
| Shank Diameter (Metric) | 20 |
|---|---|
| Series | U-Max |
| Direction Of Hand | Right |
| Overall Length (Inch) | 3.54 |
| Material | Steel |
| Shank Type | Whistle Notch/Weldon |
| Shank Diameter (Inch) | 0.79 |
| Cutting Diameter (Metric) | 20 |
| Cutting Diameter (Inch) | 0.79 |
| Overall Length (Metric) | 90 |
| Short Description | U-Max® square shoulder milling cutter |
| Unit Of Measure | Metric |
| Cutting Diameter | 20 mm |
| Shank Diameter | 20 mm |
| ANSI Code | R216.2-520 |
| Coolant Through | No |
| Center Cutting Capability | Yes |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Connection Diameter Tolerance | H6 |
| Torque | 3 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Cutting Pitch Differential | No |
| Damping Property | No |
| Country of Origin | China |
| Base Item Number | 1027 |
| Max. Depth Of Cut | 10 mm |
| Max. Depth Of Cut (Decimal) | 0.39 |
| Max. Depth Of Cut (Metric) | 10 |
| Max. Plunge Depth (Decimal) | 0.59 |
| Max. Plunge Depth (Metric) | 15 |
| Max. Rotational Speed | 15120 1/min |
| Maximum Depth Of Cut (Inch) | 0.39 |
| Maximum Depth Of Cut (Metric) | 10 |
| Maximum Ramping Angle | 90 degrees |
| Number Of Inserts | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.615 LB |
