Sandvik Coromant
5743522
Sandvik Coromant 5743522
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Shank Type | Cylindrical |
| Diameter (Metric) | 3 |
| Overall Length (Inch) | 2.24 |
| Length Of Cut (Inch) | 0.16 |
| Overall Length (Metric) | 57 |
| Shank Size (Metric) | 6 |
| Shank Size (Inch) | 0.24 |
| Material | Solid Carbide |
| Length Of Cut (Metric) | 4 |
| Diameter (Inch) | 0.12 |
| Unit Of Measure | Metric |
| Corner Radius (Decimal) | 0.06 |
| Corner Radius (Metric) | 1.5 |
| Flute Helix Angle | 30 degrees |

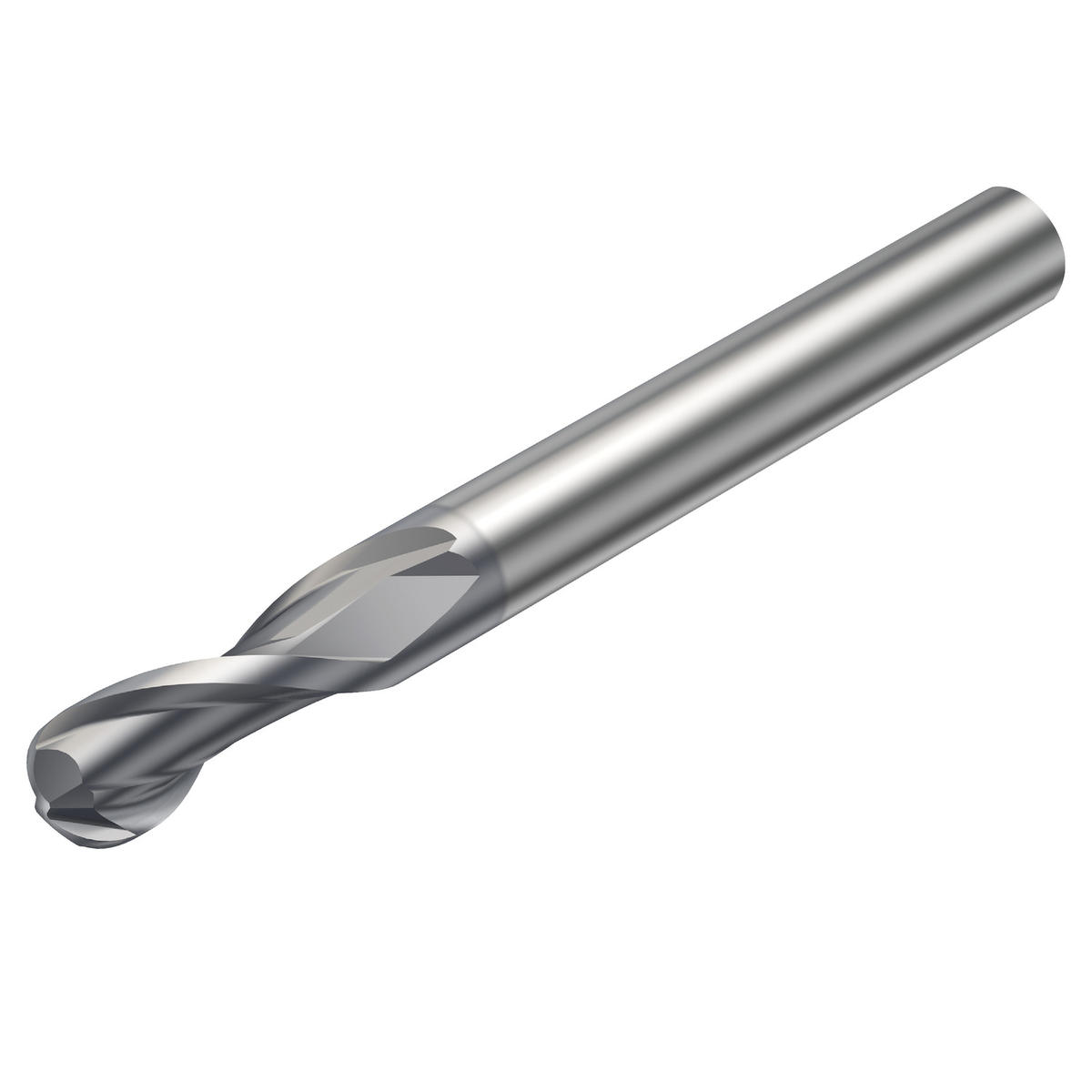

| Short Description | CoroMill® Plura solid carbide ball nose end mill for Profiling |
| Country of Origin | Italy |
| Overall Length | 57 mm |
| Length of Cut | 4 mm |
| Shank Size | 6 mm |
| Series | CoroMill Plura |
| Diameter | 3 mm |
| Coolant Through | No |
| ANSI Code | R216.42-03030-AK04G 1620 |
| Grade | 1620 |
| Coating Process Type | PVD |
| Usable Length (Decimal) | 0.16 |
| Usable Length (Metric) | 4 |
| Body Half Taper Angle | 10 degrees |
| Radial Rake Angle | 1.5 degrees |
| Axial Rake Angle | 1.5 degrees |
| Shank Diameter Tolerance | H6 |
| Cutting Edge Count | 2 |
| Coolant Entry Style Code | 0: Without Coolant |
| Material Classification Level All | PMKS |
| Base Item Number | 1040 |
| Max. Rotational Speed | 80000 1/min |
| Maximum Ramping Angle | 3 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.061 LB |
| Height Packed Product Metric | 15 mm |
| Height Packed Product Imperial | 0.591 inch |
| ISO Code (packed) | R216.42-03030-AK04G1620 |
| Length Packed Product Metric | 67 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R216.42-03030-AK04G 1620 |
| Length Packed Product Imperial | 2.638 inch |
| Substrate Type | Carbide |
