Sandvik Coromant
5743553
Sandvik Coromant 5743553
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Shank Type | Cylindrical |
| Diameter (Metric) | 12 |
| Overall Length (Inch) | 3.27 |
| Length Of Cut (Inch) | 0.47 |
| Overall Length (Metric) | 83 |
| Shank Size (Metric) | 12 |
| Shank Size (Inch) | 0.47 |
| Material | Solid Carbide |
| Length Of Cut (Metric) | 12 |
| Diameter (Inch) | 0.47 |
| Unit Of Measure | Metric |
| Corner Radius (Decimal) | 0.24 |
| Corner Radius (Metric) | 6 |
| Neck Diameter (Decimal) | 0.45 |
| Neck Diameter (Metric) | 11.4 |
| Flute Helix Angle | 30 degrees |

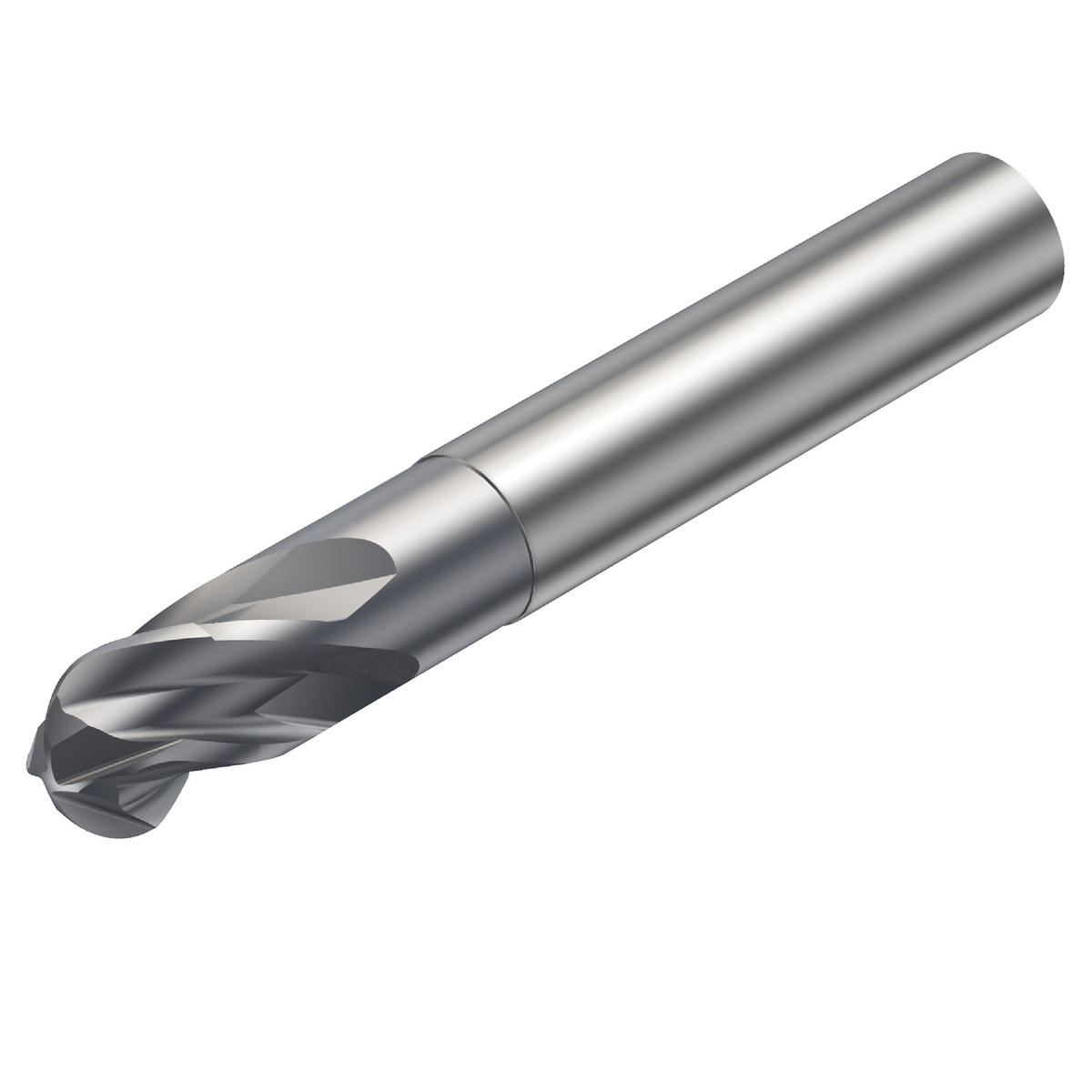

| Short Description | CoroMill® Plura solid carbide ball nose end mill for Profiling |
| Country of Origin | Italy |
| Overall Length | 83 mm |
| Length of Cut | 12 mm |
| Shank Size | 12 mm |
| Series | CoroMill Plura |
| Diameter | 12 mm |
| Coolant Through | No |
| ANSI Code | R216.44-12030-AI12G 1610 |
| Grade | 1610 |
| Coating Process Type | PVD |
| Usable Length (Decimal) | 1.42 |
| Usable Length (Metric) | 36 |
| Radial Rake Angle | -5.5 degrees |
| Axial Rake Angle | 1.5 degrees |
| Shank Diameter Tolerance | H6 |
| Cutting Edge Count | 4 |
| Coolant Entry Style Code | 0: Without Coolant |
| Material Classification Level All | PH |
| Base Item Number | 1040 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 80000 1/min |
| Maximum Ramping Angle | 3 degrees |
| Neck Diameter (Inch) | 0.45 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.317 LB |
| Height Packed Product Metric | 24 mm |
| Height Packed Product Imperial | 0.945 inch |
| ISO Code (packed) | R216.44-12030-AI12G1610 |
| Length Packed Product Metric | 112 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R216.44-12030-AI12G 1610 |
| Length Packed Product Imperial | 4.409 inch |
| Substrate Type | Carbide |
