Sandvik Coromant
5743597
Sandvik Coromant 5743597
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Shank Type | Cylindrical |
| Diameter (Metric) | 5.99 |
| Overall Length (Inch) | 3.94 |
| Length Of Cut (Inch) | 1.58 |
| Overall Length (Metric) | 100 |
| Shank Size (Metric) | 10 |
| Shank Size (Inch) | 0.39 |
| Material | Solid Carbide |
| Length Of Cut (Metric) | 40 |
| Diameter (Inch) | 0.24 |
| Unit Of Measure | Metric |
| Corner Radius (Decimal) | 0.12 |
| Corner Radius (Metric) | 3 |
| Flute Helix Angle | 40 degrees |

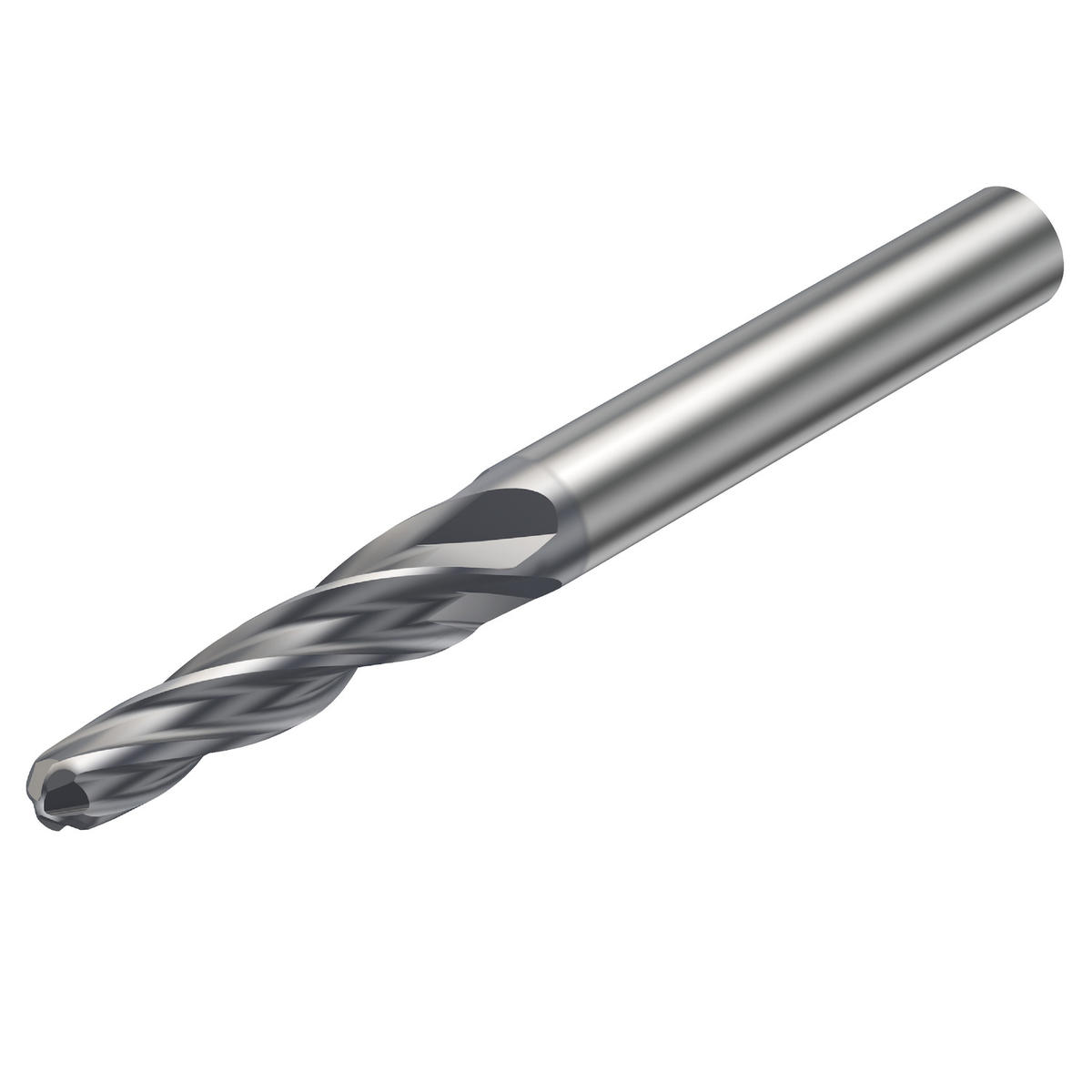

| Short Description | CoroMill® Plura solid carbide ball nose end mill for Profiling |
| Country of Origin | Germany |
| Overall Length | 100 mm |
| Length of Cut | 40 mm |
| Shank Size | 10 mm |
| Series | CoroMill Plura |
| Diameter | 5.99 mm |
| Coolant Through | No |
| ANSI Code | R216.54-06040RAL40G 1620 |
| Grade | 1620 |
| Coating Process Type | PVD |
| Usable Length (Decimal) | 1.58 |
| Usable Length (Metric) | 40 |
| Body Length (Decimal) | 1.60 |
| Body Length (Metric) | 40.55 |
| Body Half Taper Angle | 3 degrees |
| Radial Rake Angle | 2 degrees |
| Axial Rake Angle | 14 degrees |
| Shank Diameter Tolerance | H6 |
| Cutting Edge Count | 4 |
| Coolant Entry Style Code | 0: Without Coolant |
| Material Classification Level All | PMKNSH |
| Base Item Number | 1040 |
| Body Length (Inch) | 1.6 |
| Max. Rotational Speed | 80000 1/min |
| Maximum Ramping Angle | 15 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.214 LB |
| Height Packed Product Metric | 24 mm |
| Height Packed Product Imperial | 0.945 inch |
| ISO Code (packed) | R216.54-06040RAL40G1620 |
| Length Packed Product Metric | 114 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R216.54-06040RAL40G 1620 |
| Length Packed Product Imperial | 4.488 inch |
| Substrate Type | Carbide |
