Sandvik Coromant
5743855

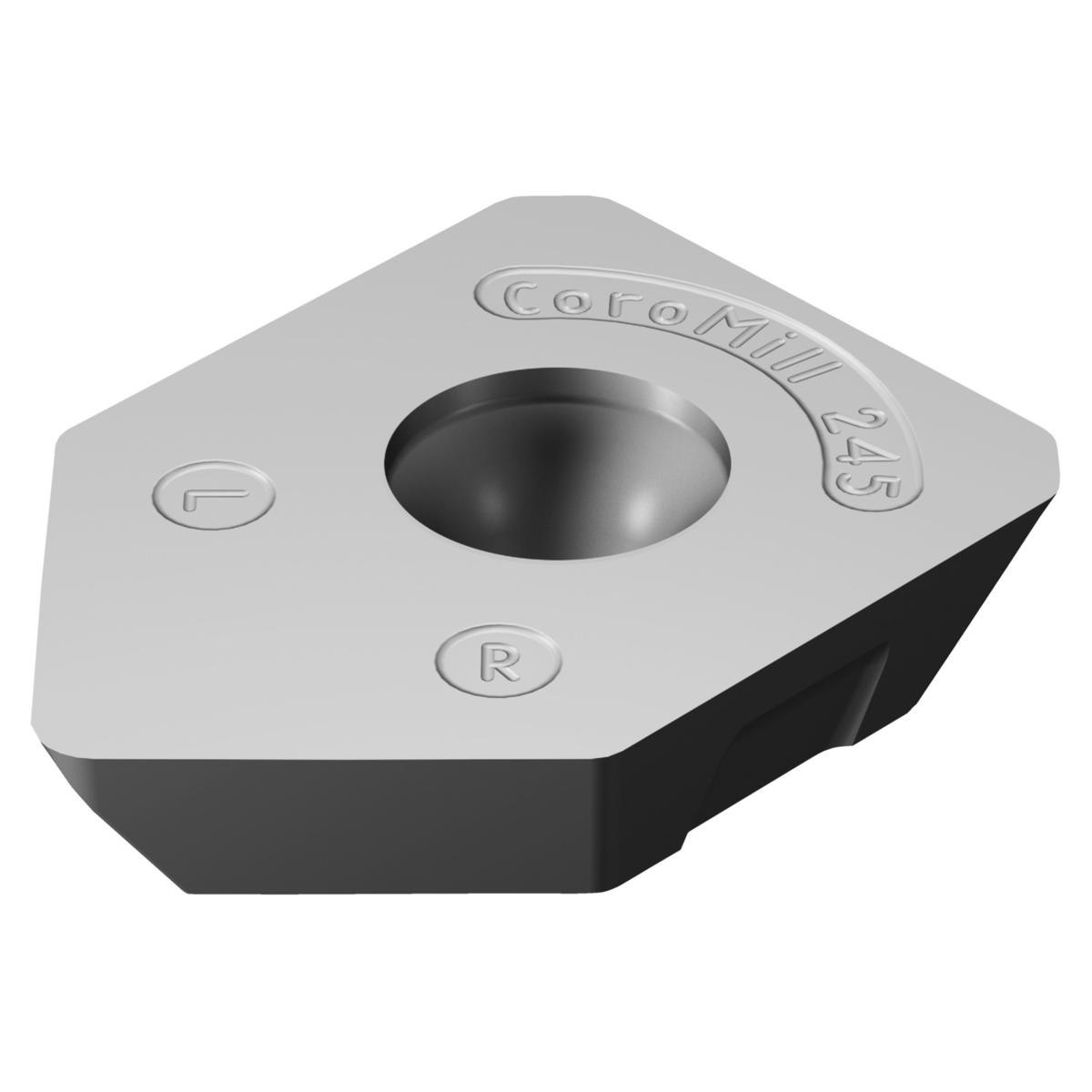

Sandvik Coromant 5743855
Specifications
| Material | WC |
|---|---|
| Coating/Finish | Uncoated |
| Thickness (Metric) | 3.97 |
| Thickness (Inch) | 0.16 |
| Short Description | CoroMill® 245 insert for milling |
| Shape | Square |
| Style | R245 |
| Unit Of Measure | Metric |
| Country of Origin | United States |
| Series | CoroMill 245 |
| Size | 12T3 |
| Grade | H13A |
| Inscribed Circle Diameter | 13.4 mm |
| Thickness | 3.97 mm |
| Chip Breaker Type | W |
| Length (Decimal) | 0.39 |
| Inscribed Circle Diameter (Decimal) | 0.53 |
| Inscribed Circle Diameter (Metric) | 13.4 |
| ANSI Code | R245-12 T3 E-W H13A |
| ISO Code | R245-12 T3 E-W H13A |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.5 |
| Fixing Hole Diameter (Decimal) | 0.16 |
| Fixing Hole Diameter (Metric) | 4.1 |
| Coating Process Type | Uncoat |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.32 |
| Wiper Edge Length (Metric) | 8.2 |
| Major Cutting Edge Angle | 45 degrees |
| Rake Angle | 0 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Wiper Edge Radius (Decimal) | 19.69 |
| Wiper Edge Radius (Metric) | 500 |
| Application | Milling, General |
| ISO Material Classification | KNS |
| Base Item Number | 1001 |
| Insert Size | 12T3 |
| Length | 10 mm |
| Max. Depth Of Cut (Decimal) | 0.1 |
| Max. Depth Of Cut (Metric) | 2.5 |
| Maximum Depth Of Cut (Inch) | 0.1 |
| Maximum Depth Of Cut (Metric) | 2.5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.02 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | R245 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | R245-12T3E-WH13A |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R245-12 T3 E-W H13A |
| Length Packed Product Imperial | 5.079 inch |
