Sandvik Coromant
5745500
Sandvik Coromant 5745500
Specifications
| Shank Diameter (Metric) | 32 |
|---|---|
| Series | CoroMill 390 |
| Direction Of Hand | Right |
| Overall Length (Inch) | 4.44 |
| Material | Steel |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.26 |
| Cutting Diameter (Metric) | 32 |
| Cutting Diameter (Inch) | 1.26 |
| Overall Length (Metric) | 112.7 |

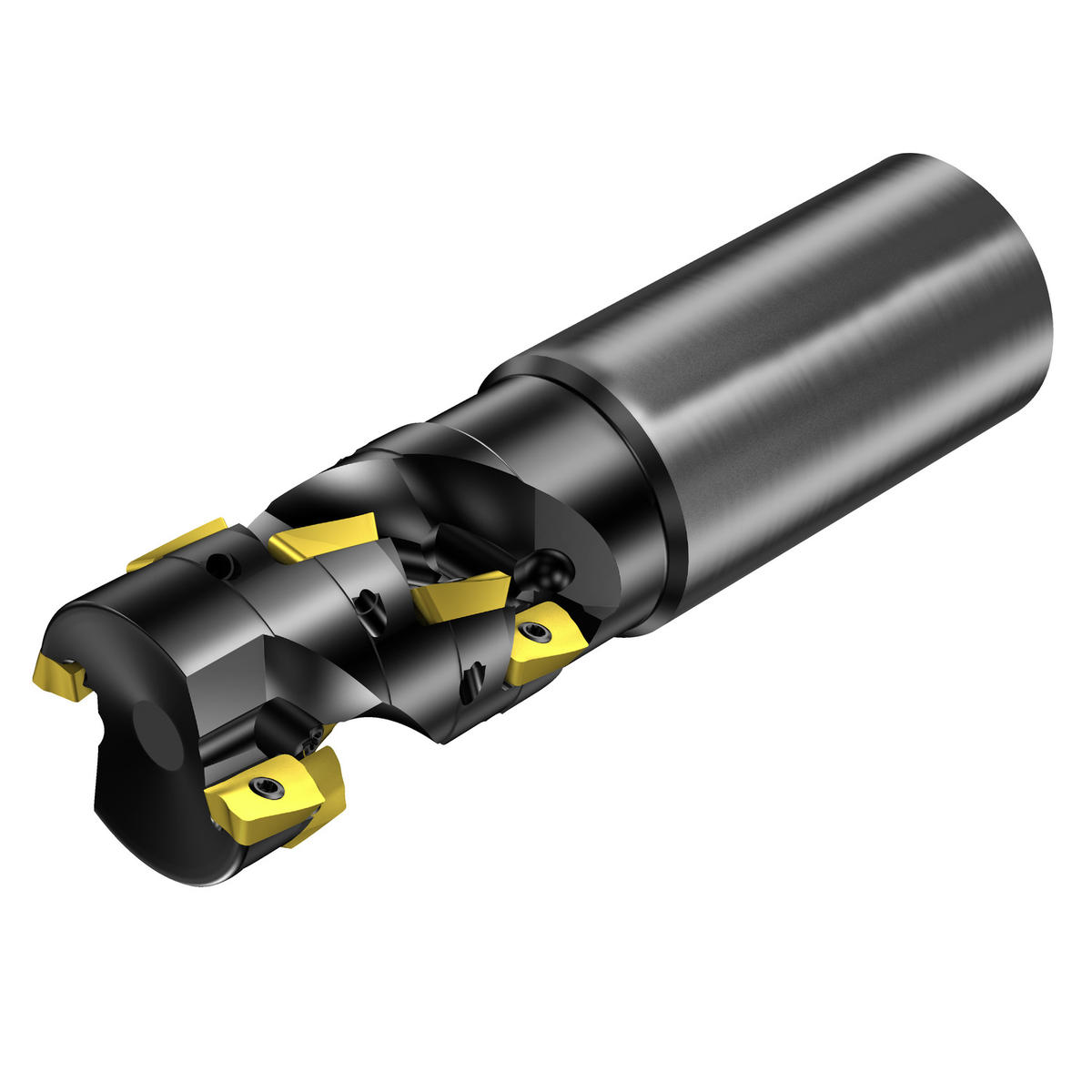

| Short Description | CoroMill® 390 long edge square shoulder milling cutter |
| Unit Of Measure | Metric |
| Cutting Diameter | 32 mm |
| Shank Diameter | 32 mm |
| ANSI Code | R390-032A32-36L |
| Coolant Through | No |
| Usable Length (Decimal) | 1.89 |
| Usable Length (Metric) | 48 |
| Center Cutting Capability | No |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Torque | 1.2 Nm |
| Coolant Entry Style Code | 0: Without Coolant |
| Cutting Pitch Differential | No |
| Damping Property | No |
| Country of Origin | Sweden |
| Base Item Number | 1003 |
| Max. Depth Of Cut | 36 mm |
| Max. Depth Of Cut (Decimal) | 1.42 |
| Max. Depth Of Cut (Metric) | 36 |
| Max. Rotational Speed | 21700 1/min |
| Maximum Depth Of Cut (Inch) | 1.42 |
| Maximum Depth Of Cut (Metric) | 36 |
| Maximum Ramping Angle | 0 degrees |
| Number Of Inserts | 2 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.349 LB |
