Sandvik Coromant
5745585
Sandvik Coromant 5745585
Specifications
| Shank Diameter (Metric) | 63 |
|---|---|
| Series | CoroMill 390 |
| Direction Of Hand | Right |
| Overall Length (Inch) | 2.36 |
| Material | Steel |
| Shank Diameter (Inch) | 2.48 |
| Cutting Diameter (Metric) | 63 |
| Cutting Diameter (Inch) | 2.48 |
| Overall Length (Metric) | 60 |

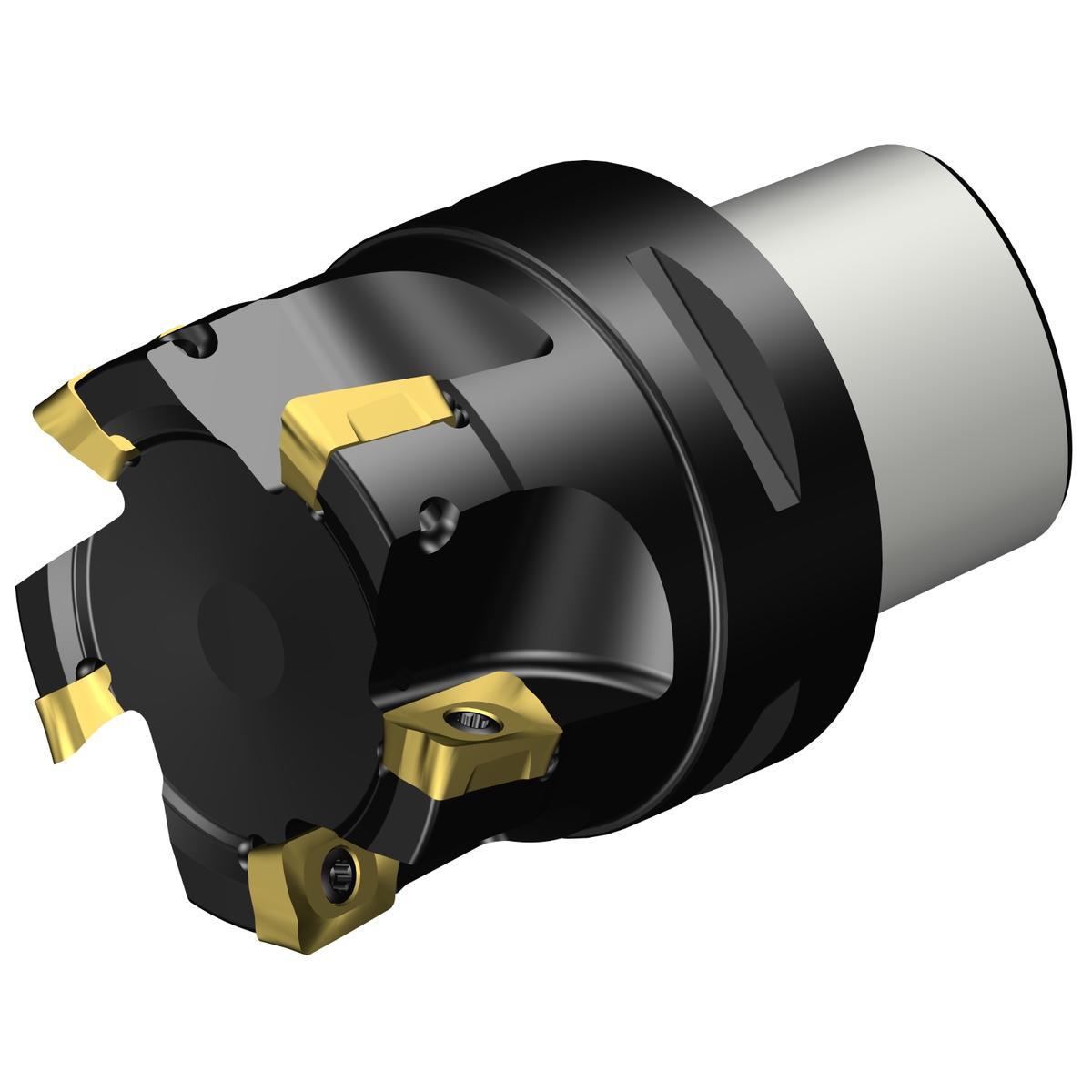

| Short Description | CoroMill® 390 square shoulder milling cutter |
| Unit Of Measure | Metric |
| Cutting Diameter | 63 mm |
| Shank Diameter | 63 mm |
| ANSI Code | R390-063C6-18M060 |
| Coolant Through | Yes |
| Usable Length (Decimal) | 1.5 |
| Usable Length (Metric) | 38 |
| Connection Size | C6 |
| Functional Diameter (Decimal) | 1.73 |
| Functional Diameter (Metric) | 44 |
| Center Cutting Capability | No |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Torque | 3 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Standard | ISO26623-1 |
| Cutting Pitch Differential | No |
| Damping Property | No |
| Country of Origin | Sweden |
| Base Item Number | 1003 |
| Max. Depth Of Cut | 1.1 mm |
| Max. Depth Of Cut (Decimal) | 0.04 |
| Max. Depth Of Cut (Metric) | 1.1 |
| Max. Rotational Speed | 6800 1/min |
| Maximum Depth Of Cut (Inch) | 0.04 |
| Maximum Depth Of Cut (Metric) | 1.1 |
| Maximum Ramping Angle | 4 degrees |
| Number Of Inserts | 5 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.941 LB |
